1011000000 | WSI 6 | W-SERIES - Fuse Terminal block |Clamping yoke technology

Weidmuller | 1011000000 | WSI 6 | W-SERIES - Fuse Terminal block |Clamping yoke technology  - standard, Tier 1

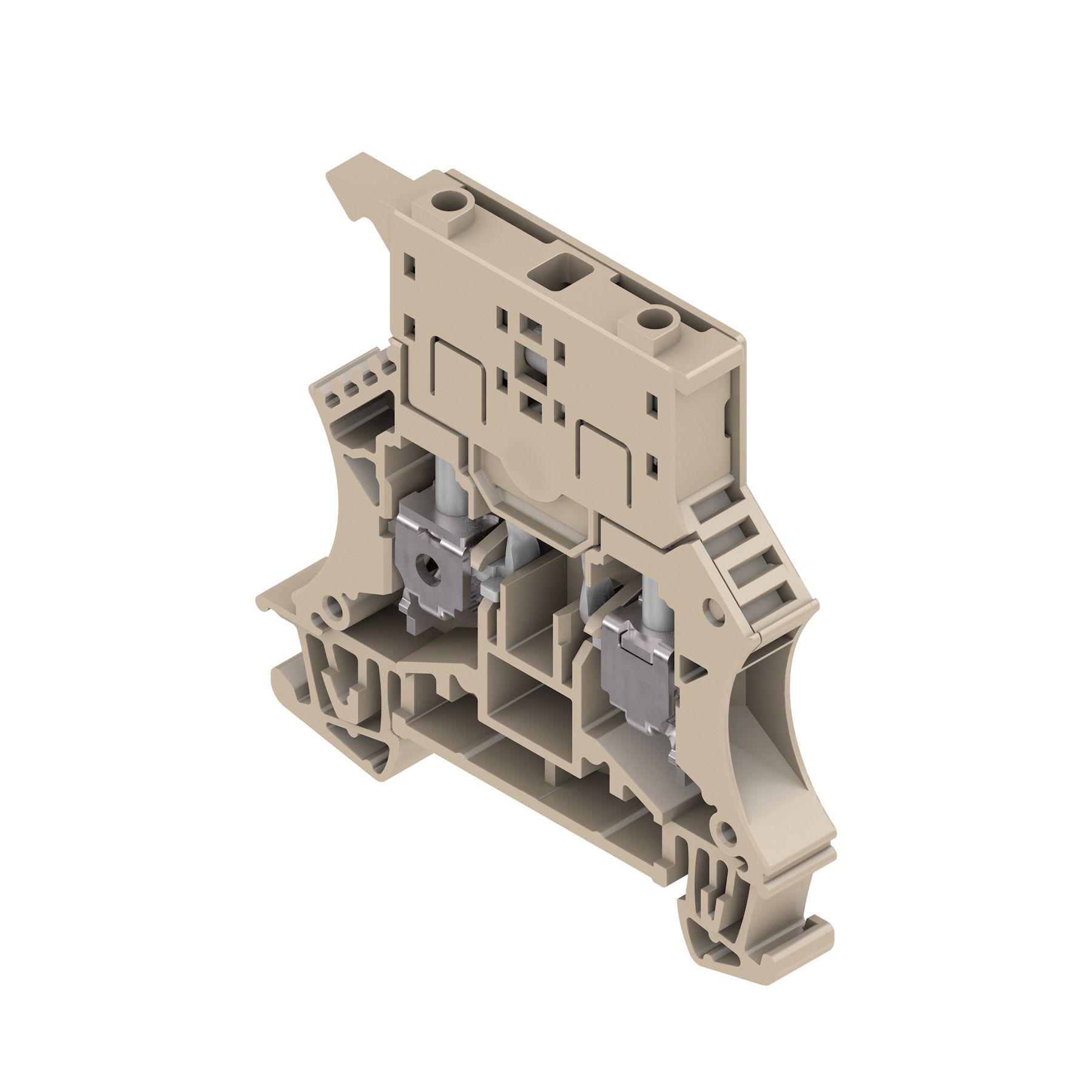

The W-SERIES from Weidmuller is setting standards within the industry. The 1011000000 (WSI 6) is a standard fuse terminal block within the W-SERIES and features a screw connection technology or better known as the Clamping Yoke technology. By implementing this compact terminal block you are guaranteed the ultimate in contact safety. Weidmuller 1011000000 (WSI 6) can be used globally, thanks to its approved national and international approvals and qualifications.

The W-Series from Weidmuller screw connection has long been an established connection element to meet exacting demands regarding reliability and functionality.

• Version: W-Series, Fuse terminal, Rated cross-section: 6 mm², Screw connection
• Order Number: 1011000000
• Type: WSI 6
• Product Dimension: 61 x 62 x 7.9mm
• Continuous Operating Temperature min…max: -50?…120?
• Rated Voltage: 250 V
• Rated Current: 6.3 A
• Rail: TS 35
• Wire connection AWG Min...Max: 12…26
• Standards: IEC 60947-7-1
• Type of mounting: When screwed in

Additional Information

The W-Series offers many convincing benefits and comes in four different designs. Thanks to the range of models and real flexibility, our modular terminal blocks with clamping yoke technology can be used in a wide range of different applications. Whatever your requirements for the control cabinet are: our screw connection system with patented clamping yoke technology ensures the ultimate in contact safety.
