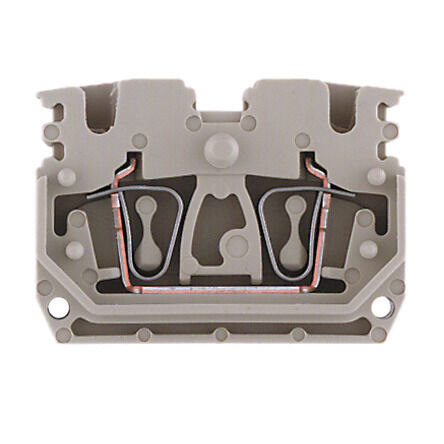

1704350000 | ZDUB 2.5-2/2AN/DM | Z-SERIES | Feed-through terminal with tension clamp connection

Weidmuller |1745230000 | ZDUB 2.5-2/2AN/DM | Z-SERIES | Feed-through terminal with tension clamp connection.

Connect your wires in one simple move with the Weidmuller ZDUB 2.5-2/2AN/DM due to it’s tension clamp connection technology. Ideal for electrical engineers and panel builders, these feed-through terminal blocks help speed up installations and reduce costs. Weidmuller Z Series tension clamp technology is a universal contact system for all common conductor connection types

Part of the Klippon Connect family, the tension clamp system on this terminal works in a similar way to the proven clamping yoke. Made of high-quality, acid resistant stainless steel, this tension clamp helps pulls the conductor against the galvanised copper current bar.

Version: Z-series, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige, Direct mounting

Order Number: 1745230000

Type: ZDUB 2.5-2/2AN/DM

Product Dimension: 24x33.5x5.1mm

Additional Information

The Weidmuller Z-Series Terminal blocks offer a flexible wiring and vibration resistant solution , perfect for compact panel construction. The wide range with numerous additional functions and pluggable terminal blocks (WeiCoS), the wide clamping range and up to two cross-connection channels make the Z-Series perfectly adaptable to all requirements.
