PREDETERMINING COUNTER EL

PREDETERMINING COUNTER EL

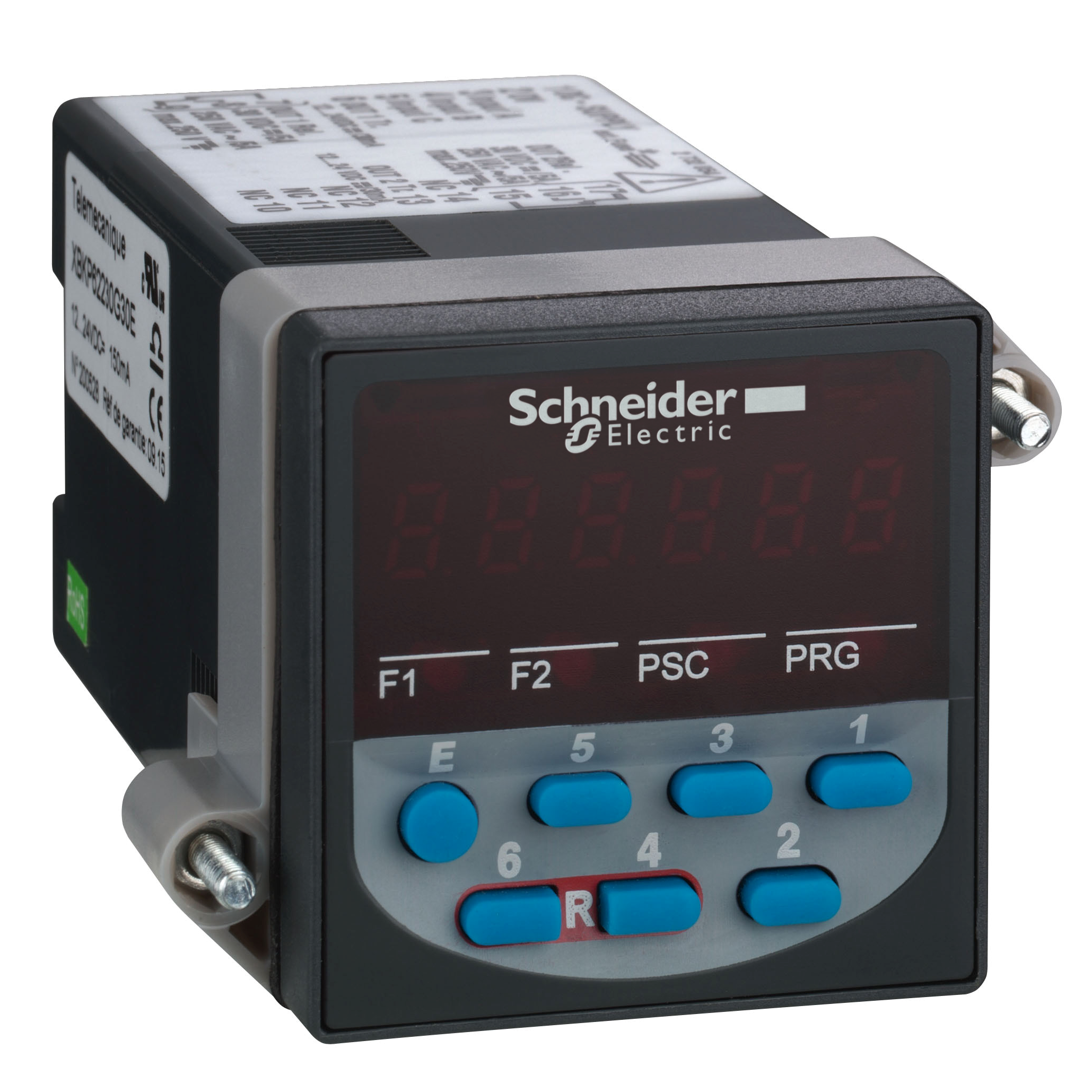

XBKP62130G30Ehttps://download.schneider-electric.com/files?p_Doc_Ref=20327SE&p_File_Type=rendition_4000_pngpredetermining multi-function counter - LED 6 digit display - 24 V DC.Label:Zelio Count-range of product:Zelio Count-reset:manual,electrical reset,automatic reset-product or component type:multifunctional counter-counting capacity:-99999...999999-additional information:batch counter,chronometer,tachometer,preselection counter-display type:LED-size:48 x 48 mm-technology type:electronic-Range Presentation:
- Electromechanical counters: XBK T, XBK H, XBK P5- Electronic counters: XBK T, XBK H, XBK P6- Counting and display with accuracy to the nearest hundredth of an hour. Display and updating managed by incrementing or decrementing on each new pulse- Choice of frequencies from 30 Hz to 9 kHz- Wide voltage range from 20 to 55/24/115/230 VAC- Wide voltage range from 10 to 30/24/48 VDC- LCD or LED display- Relay or solid state output
-Range Benefits:Approved precision Simplicity and speed of assembly ensure optimum setup for the user. The varied choice of contact or transistor type counting inputs, choice of frequency and LCD or LED display enable immediate adaptation to the application.-Range Application Presentation:
- Industry and building: switchboards in simple machines, process control - Start-up and monitoring of water treatment equipment
GBP
Stock Code: XBKP62130G30E
Call for availability on 0345 030 60 80
This item is Obsolete
119999.99£99,999.99 (exc VAT) per 1
£119,999.99 (inc VAT)
Quantity: - +

Product Description

predetermining multi-function counter - LED 6 digit display - 24 V DC.Label:Zelio Count-range of product:Zelio Count-reset:manual,electrical reset,automatic reset-product or component type:multifunctional counter-counting capacity:-99999...999999-additional information:batch counter,chronometer,tachometer,preselection counter-display type:LED-size:48 x 48 mm-technology type:electronic-Range Presentation:
- Electromechanical counters: XBK T, XBK H, XBK P5- Electronic counters: XBK T, XBK H, XBK P6- Counting and display with accuracy to the nearest hundredth of an hour. Display and updating managed by incrementing or decrementing on each new pulse- Choice of frequencies from 30 Hz to 9 kHz- Wide voltage range from 20 to 55/24/115/230 VAC- Wide voltage range from 10 to 30/24/48 VDC- LCD or LED display- Relay or solid state output
-Range Benefits:Approved precision Simplicity and speed of assembly ensure optimum setup for the user. The varied choice of contact or transistor type counting inputs, choice of frequency and LCD or LED display enable immediate adaptation to the application.-Range Application Presentation:
- Industry and building: switchboards in simple machines, process control - Start-up and monitoring of water treatment equipment

Width48 mm
Height48 mm
