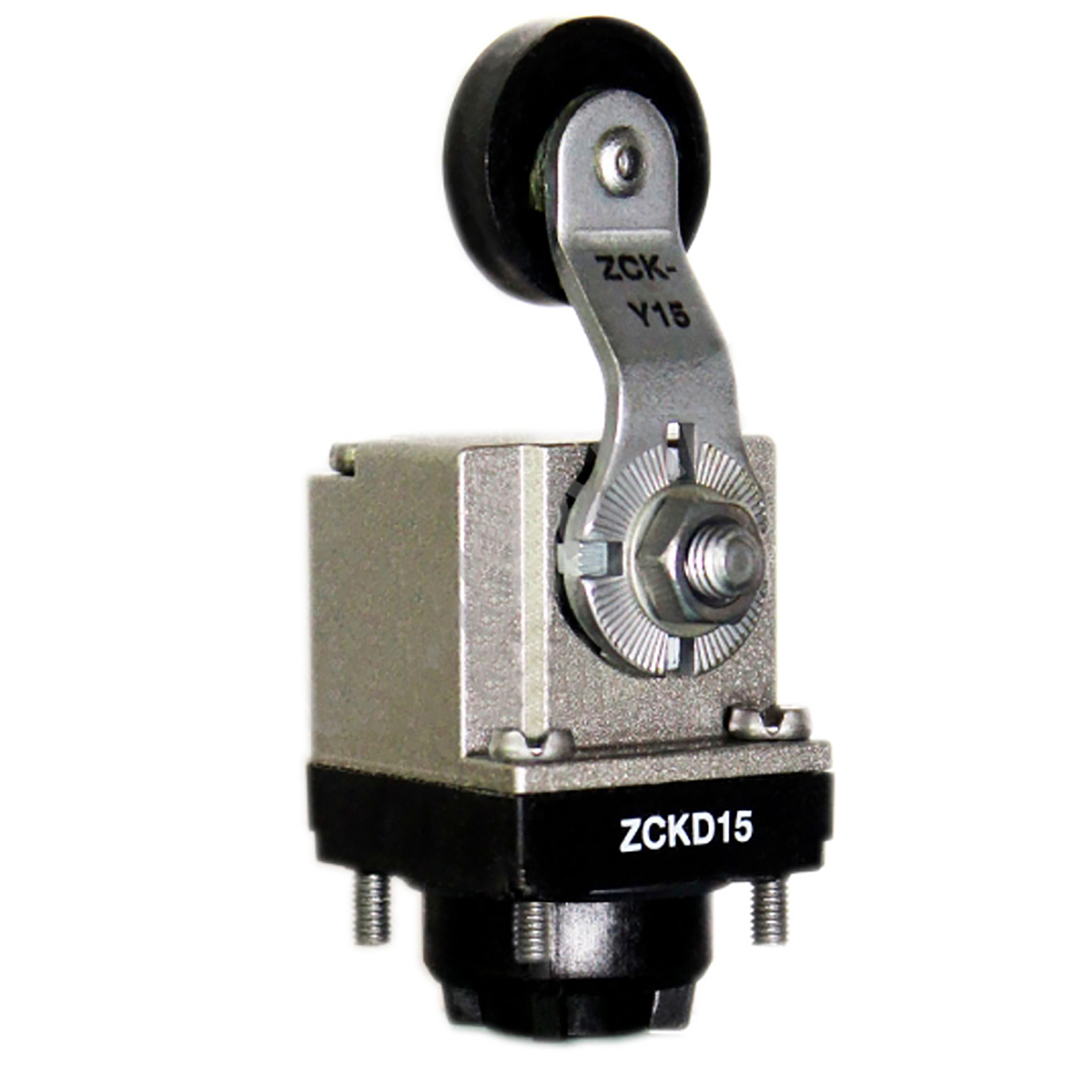

limit switch head ZCKD - thermoplastic roller lever.Label:OsiSense XC standard-range of product:OsiSense XC-series name:standard format-product or component type:limit switch head-device short name:ZCKD-head type:rotary head-product compatibility:XCKL,XCKM-associated body:ZCKMD39,ZCKL1,ZCKLD31H7,ZCKLD35H7,ZCKMD35,ZCKM1H7,ZCKM5,ZCKM1H29,ZCKLD39H7,ZCKM8H29,ZCKL5,ZCKM1,ZCKM8H7,ZCKLD37H7,ZCKL7H7,ZCKM6H29,ZCKM9H29,ZCKM5H29,ZCKMD35H7,ZCKM8,ZCKMD37H7,ZCKL7,ZCKLD39,ZCKMD37,ZCKL8,ZCKMD31,ZCKLD31,ZCKL1H7,ZCKMD35H29,ZCKM7,ZCKM6H7,ZCKM6,ZCKL5H7,ZCKM9,ZCKL6,ZCKL6H7,ZCKM7H29,ZCKM5H7,ZCKMD31H7,ZCKM7H7,ZCKMD31H29,ZCKLD37,ZCKMD39H29,ZCKL8H7,ZCKMD39H7,ZCKMD37H29,ZCKLD35-movement of operating head:rotary-Range Presentation:Compact range for light to medium duty applications
- European standard products (EN50047) have positive opening contacts, even in snap action versions which allow use in safety applications - XCKP/T/D variable composition ranges offer the advantages of a metal head, high performance and world wide availability through distribution - XCKN monolithic plastic version is dedicated to repetitive machines Classic range Historical Telemecanique formats very popular worldwide
- XCKM (3 cable entries) and XCKL (1 cable entry) are a good and improved choice for multipurpose medium duty metal body products - XCKS Plastic format (EN50041) Miniature range Robust products in a small size format
- Ideal for harsh environment machines with space constraints - XCMD share the same heads as compact range, and offer also positive opening contacts, even in snap action versions which allow use in safety applications - XCMN monolithic plastic version is dedicated to repetitive machines Industrial range Robust products in a standardized format (EN50041) for heavy duty use
- XCKJ offer the most robust head in his category, snap positive contacts and a fixed of plug-in body-Range Benefits:Contact sensing of inflexible objects
- The most comprehensive offer of limit switches to fit every need. High quality of products and worldwide availability guarantee in a short delivery time. - A comprehensive offer of positive opening snap action contacts for a simpler and safer machine design.-Range Application Presentation:All industrial machines:
- packaging, - materials handling, - conveying, - machining, - food and beverage, - service sector, etc.
