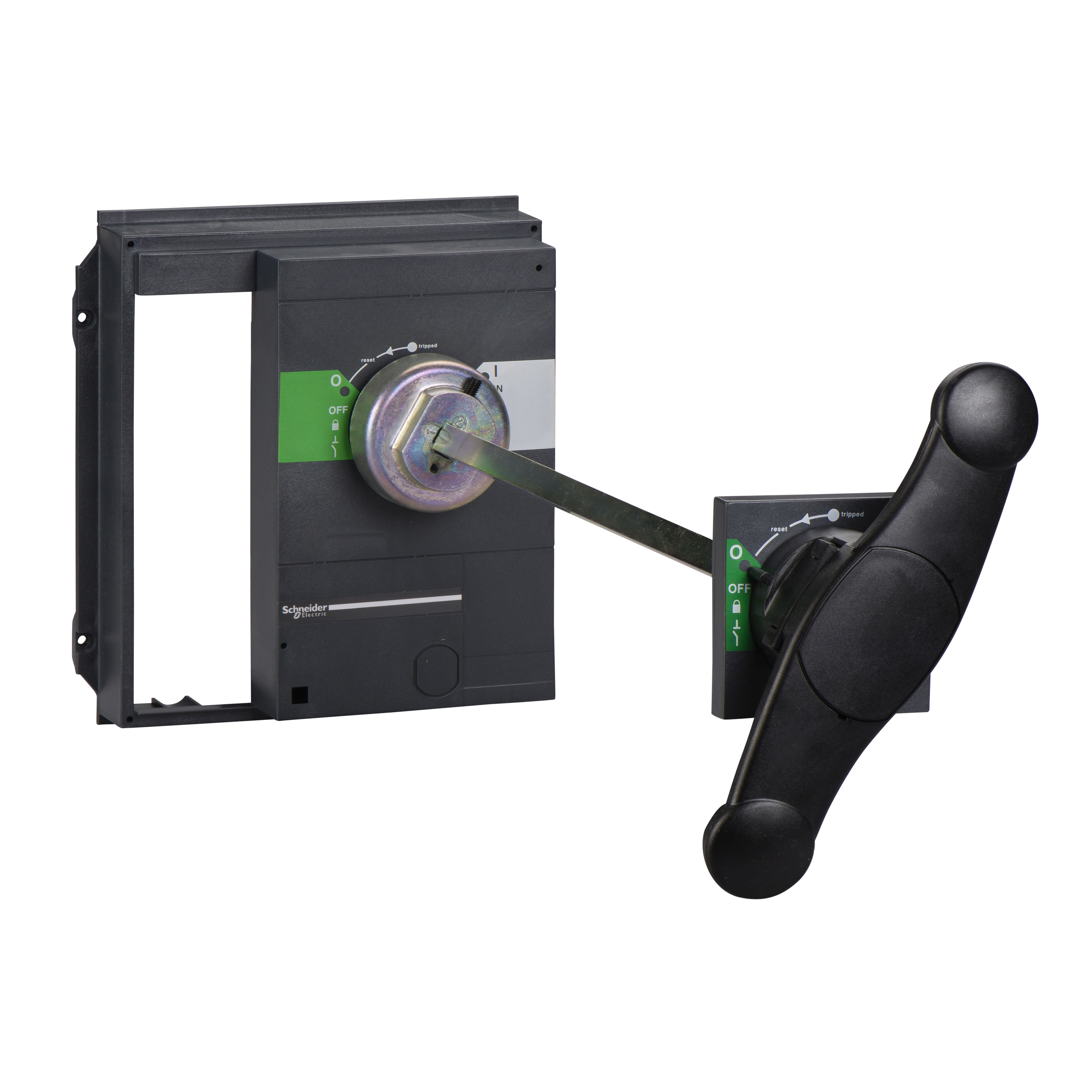

Schneider Electric STANDARD EXTENDED ROTARY HANDLE

Front rotary handle - black handle - for NS 630b..1600.Label:Compact NS switch-disconnectors-range of product:NS630b...1600-handle front plate colour:black-rotary handle mounting style:extended-product or component type:rotary handle-accessory / separate part type:control accessories-handle colour:black-Range Presentation:The Compact NS NA switch disconnector is designed to open and close a circuit manually or remotely under normal operating conditions. Adapted to a host of low-voltage (LV) applications and connection accessories, this product offers all the performance and safety that users require. It is self-protected for all currents higher than 130 kA peak. It can also be used to ensure source changeover switch function with the Transferpact. Specifications: * Nominal current: 630 to 3200 A * Voltage rating: 690 V * Categories: AC23A * Available in 3 and 4-pole versions * Manual and remote operations up to 1600 A * Available in fixed and withdrawable versions * Add-on earth leakage protection available * DC version available (up to 1500 A and 1000 V)-Range Benefits: Easy and flexible installation - Same footprint as Compact NS circuit breakers - Usable in any position - Can be used as an incomer - Wide range of auxiliaries and connection accessories - Reduce inventory with shared accessories across the Masterpact NT and Compact INS/INV range Safety and protection - Additionally, available with the shunt and overvoltage release with the MN MX release coil-Range Application Presentation:Suitable in most low-voltage (LV) applications, including: - Building: commercial buildings, hotels, hospitals, offices, etc. - Data centers, wind turbines, solar, GenSet - Industry: mining and minerals, automotive, food and beverage, and chemical industry - Energy and infrastructures: airports, oil and gas, water treatment and marine Ensures compliance with international standards (Find on Compact NS NA certificate downloads): - IEC 60947-1 and 3, CCC, EAC, other local certifications and Marine classification

Stock Code: 33878

Call for availability on 0345 030 60 80

Product Description

Front rotary handle - black handle - for NS 630b..1600.Label:Compact NS switch-disconnectors-range of product:NS630b...1600-handle front plate colour:black-rotary handle mounting style:extended-product or component type:rotary handle-accessory / separate part type:control accessories-handle colour:black-Range Presentation:The Compact NS NA switch disconnector is designed to open and close a circuit manually or remotely under normal operating conditions. Adapted to a host of low-voltage (LV) applications and connection accessories, this product offers all the performance and safety that users require. It is self-protected for all currents higher than 130 kA peak. It can also be used to ensure source changeover switch function with the Transferpact.
Specifications:
* Nominal current: 630 to 3200 A
* Voltage rating: 690 V
* Categories: AC23A
* Available in 3 and 4-pole versions
* Manual and remote operations up to 1600 A
* Available in fixed and withdrawable versions
* Add-on earth leakage protection available
* DC version available (up to 1500 A and 1000 V)-Range Benefits:
Easy and flexible installation
- Same footprint as Compact NS circuit breakers
- Usable in any position
- Can be used as an incomer
- Wide range of auxiliaries and connection accessories
- Reduce inventory with shared accessories across the Masterpact NT and Compact INS/INV range
Safety and protection
- Additionally, available with the shunt and overvoltage release with the MN MX release coil-Range Application Presentation:Suitable in most low-voltage (LV) applications, including:
- Building: commercial buildings, hotels, hospitals, offices, etc.
- Data centers, wind turbines, solar, GenSet
- Industry: mining and minerals, automotive, food and beverage, and chemical industry
- Energy and infrastructures: airports, oil and gas, water treatment and marine
Ensures compliance with international standards (Find on Compact NS NA certificate downloads):
- IEC 60947-1 and 3, CCC, EAC, other local certifications and Marine classification
