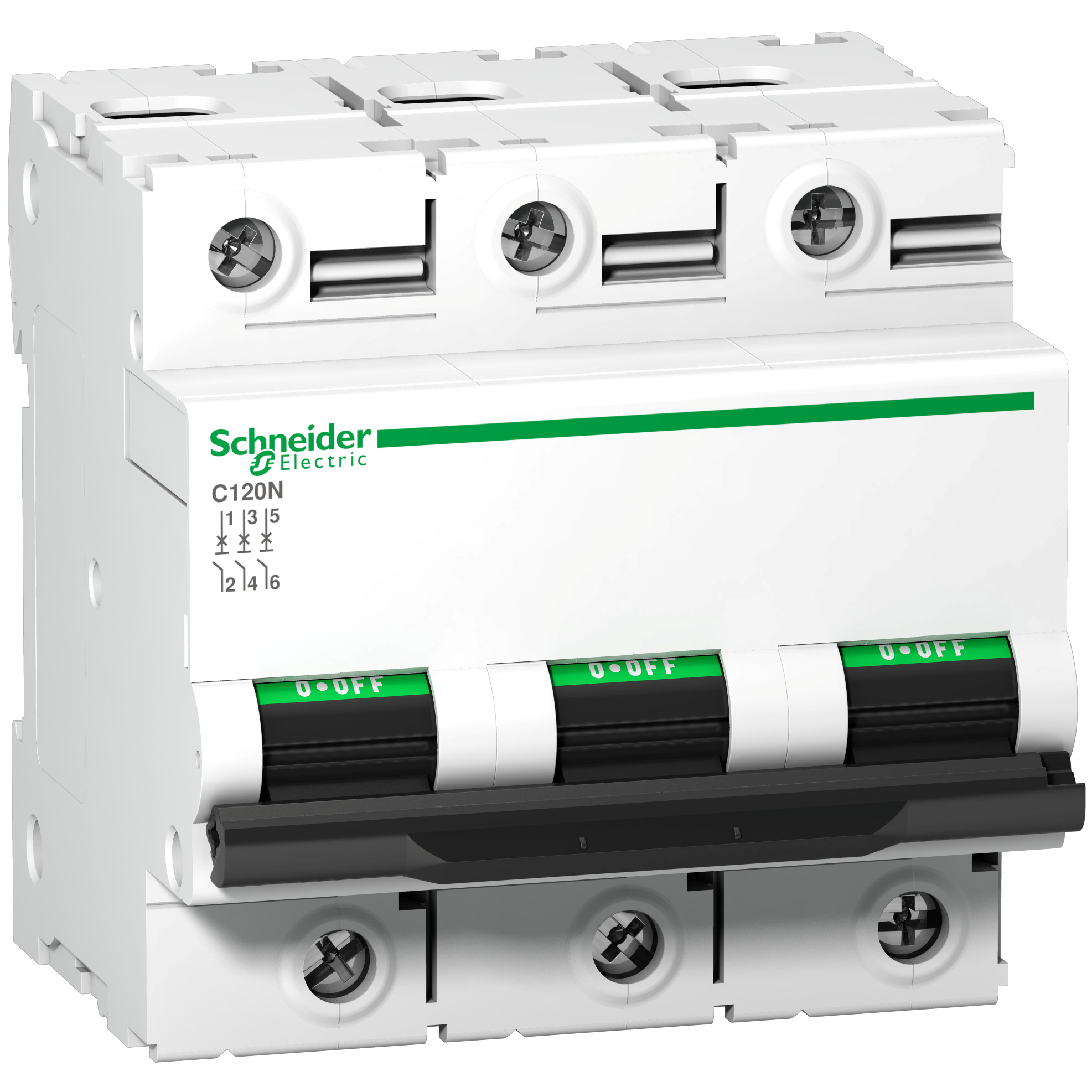

Schneider Electric Acti9 C120N MCB 3P C 80A 10000A 415V

Schneider Electric Acti9 C120N MCB 3P C 80A 10000A 415V

A9N18365https://download.schneider-electric.com/files?p_Doc_Ref=PB107920&p_File_Type=rendition_4000_pngC120N - circuit breaker - 3P - 80A - C curve. Label: C120 - range of product: C120 - [In] rated current: 80 A at 30 °C - network type: AC - trip unit technology: thermal-magnetic - curve code: C - breaking capacity code: N - breaking capacity: N/A, N/A, N/A, N/A, N/A - range: Acti 9 - suitability for isolation: yes conforming to IEC 60947-2 - product name: C120 - product or component type: miniature circuit-breaker - device short name: C120N - device application: distribution - poles description: 3P - number of protected poles: 3 - Range Presentation: - Nominal current: 10 to 125 A- Large choice of breaking capacities and tripping curves: B, C, D...- Compliance with standards: IEC EN 60898 or IEC 60947-2 depending on the version, certified by national official authorities- Suitable for isolation in accordance with industrial standards: IEC 60947- Operating voltage: up to 440Vac, insulation voltage: 500V - Optional add-on earth leakage modules: C120 Vigi- Optional auxiliaries: indication of state and tripping, shunt trip, undervoltage trip, overvoltage trip - Range Benefits: Quality without boundariesThe C120 circuit-breaker, derived directly from the C60, is recognised in over 100 countries for its quality and the breadth of its range, making it an indispensable component for developing low voltage installations with complete peace of mind. - Range Application Presentation: - Protection of electrical circuits in all industrial and tertiary buildings.
GBP
Stock Code: A9N18365
Call for availability on 0345 030 60 80
298.88£249.07 (exc VAT) per 1
£298.88 (inc VAT)
Quantity: - +

Product Description

C120N - circuit breaker - 3P - 80A - C curve. Label: C120 - range of product: C120 - [In] rated current: 80 A at 30 °C - network type: AC - trip unit technology: thermal-magnetic - curve code: C - breaking capacity code: N - breaking capacity: N/A, N/A, N/A, N/A, N/A - range: Acti 9 - suitability for isolation: yes conforming to IEC 60947-2 - product name: C120 - product or component type: miniature circuit-breaker - device short name: C120N - device application: distribution - poles description: 3P - number of protected poles: 3 - Range Presentation:
- Nominal current: 10 to 125 A- Large choice of breaking capacities and tripping curves: B, C, D...- Compliance with standards: IEC EN 60898 or IEC 60947-2 depending on the version, certified by national official authorities- Suitable for isolation in accordance with industrial standards: IEC 60947- Operating voltage: up to 440Vac, insulation voltage: 500V - Optional add-on earth leakage modules: C120 Vigi- Optional auxiliaries: indication of state and tripping, shunt trip, undervoltage trip, overvoltage trip - Range Benefits: Quality without boundariesThe C120 circuit-breaker, derived directly from the C60, is recognised in over 100 countries for its quality and the breadth of its range, making it an indispensable component for developing low voltage installations with complete peace of mind. - Range Application Presentation:
- Protection of electrical circuits in all industrial and tertiary buildings.

Width81 mm
Height81 mm
Depth73 mm
