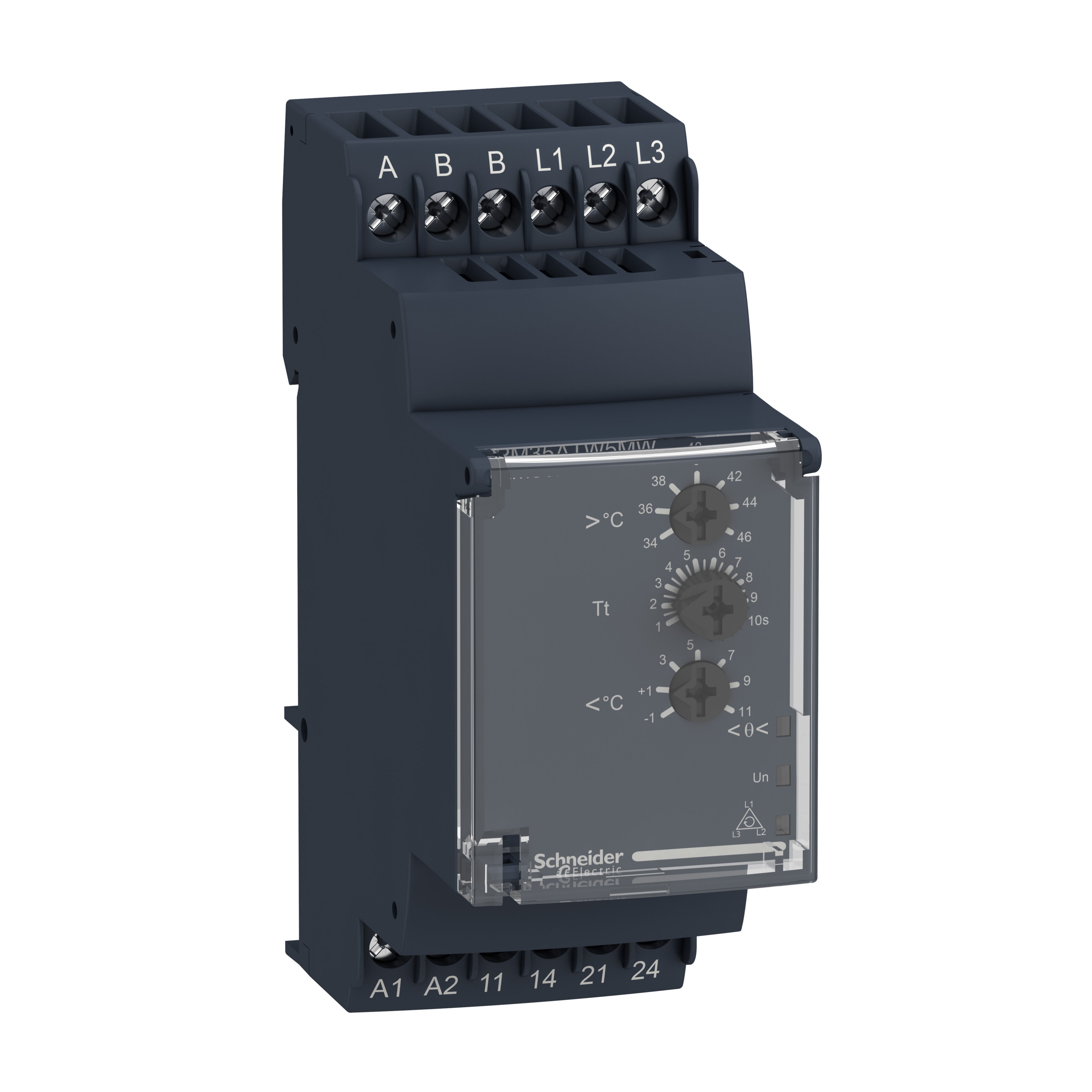

RM35ATW5MWhttps://download.schneider-electric.com/files?p_Doc_Ref=RM_CRM19250&p_File_Type=rendition_4000_pngtemperature control relay RM35-A - 24..240 V AC/DC - 2 NO.Label:Zelio Control-range of product:Zelio Control-switching capacity in VA:1250 VA-product or component type:modular measurement and control relays-relay type:temperature control relays-product specific application:for elevator machine rooms and 3-phase supplies-relay name:RM35AT-relay monitored parameters:phase sequence,phase failure detection,undertemperature: -1...11°C,overtemperature: 34...46°C-Range Presentation: Zelio Relays to control your machine and processes of the future! A complete range of Control Relays combining simplicity, reliability and robustness Zelio Control Relays protect your machine. By monitoring abnormal operating conditions on phase, current, voltage, frequency, speed or temperature, the machine will not be allowed to run when a fault is occured.It allows the user to initiate the necessary corrective actions before serious and costly breakdowns can occur. - Phase control / Current control / Voltage control / Liquid level control / Frequency control / Speed control / Temperature control / Pump control - Modular for din rail mounting - Single or Multifunction available - Self powered available for 3 phase range, wiring saving - True RMS value measurement(even on deformed sinus waves) - Positive logic output to protect the system at power lose - Adjustable time delay to prevent nuisance tripping - Settings protection by IP 50 sealable plastic cover against dust - Conformity to EN60255-1, IEC60255-1standards UL, CSA, GL, RCM, EAC, CCC, China ROHS-Range Benefits: A simple approach to monitor your equipments! Control relays can satisfy all the monitoring requirements of mobile process control or network equipment Simple and accurate adjustments to achieve quick and easy setup. Focus on our New Zelio Relay RM22/35 with advanced features Innovative: Dial pointer LED indicator and" Diagnostic Button" to assist commissioning and trouble shooting Simple and robust Compliant to standards & certifications QR code embedded to instruction sheet for easy setting -Range Application Presentation: Suitable for a wide range of applications : Hoisting: construction cranes, Harbor Packaging: Motor voltage, current over load Lifts: construction lifts, passenger lifts, escalators Textile: motor voltage, current overload Water: liquid level at WWW recycling plant on water tank
temperature control relay RM35-A - 24..240 V AC/DC - 2 NO.Label:Zelio Control-range of product:Zelio Control-switching capacity in VA:1250 VA-product or component type:modular measurement and control relays-relay type:temperature control relays-product specific application:for elevator machine rooms and 3-phase supplies-relay name:RM35AT-relay monitored parameters:phase sequence,phase failure detection,undertemperature: -1...11°C,overtemperature: 34...46°C-Range Presentation: Zelio Relays to control your machine and processes of the future! A complete range of Control Relays combining simplicity, reliability and robustness Zelio Control Relays protect your machine. By monitoring abnormal operating conditions on phase, current, voltage, frequency, speed or temperature, the machine will not be allowed to run when a fault is occured.It allows the user to initiate the necessary corrective actions before serious and costly breakdowns can occur. - Phase control / Current control / Voltage control / Liquid level control / Frequency control / Speed control / Temperature control / Pump control - Modular for din rail mounting - Single or Multifunction available - Self powered available for 3 phase range, wiring saving - True RMS value measurement(even on deformed sinus waves) - Positive logic output to protect the system at power lose - Adjustable time delay to prevent nuisance tripping - Settings protection by IP 50 sealable plastic cover against dust - Conformity to EN60255-1, IEC60255-1standards UL, CSA, GL, RCM, EAC, CCC, China ROHS-Range Benefits: A simple approach to monitor your equipments! Control relays can satisfy all the monitoring requirements of mobile process control or network equipment Simple and accurate adjustments to achieve quick and easy setup. Focus on our New Zelio Relay RM22/35 with advanced features Innovative: Dial pointer LED indicator and" Diagnostic Button" to assist commissioning and trouble shooting Simple and robust Compliant to standards & certifications QR code embedded to instruction sheet for easy setting -Range Application Presentation: Suitable for a wide range of applications : Hoisting: construction cranes, Harbor Packaging: Motor voltage, current over load Lifts: construction lifts, passenger lifts, escalators Textile: motor voltage, current overload Water: liquid level at WWW recycling plant on water tank
