Star-Delta Timing

Star-Delta Timing

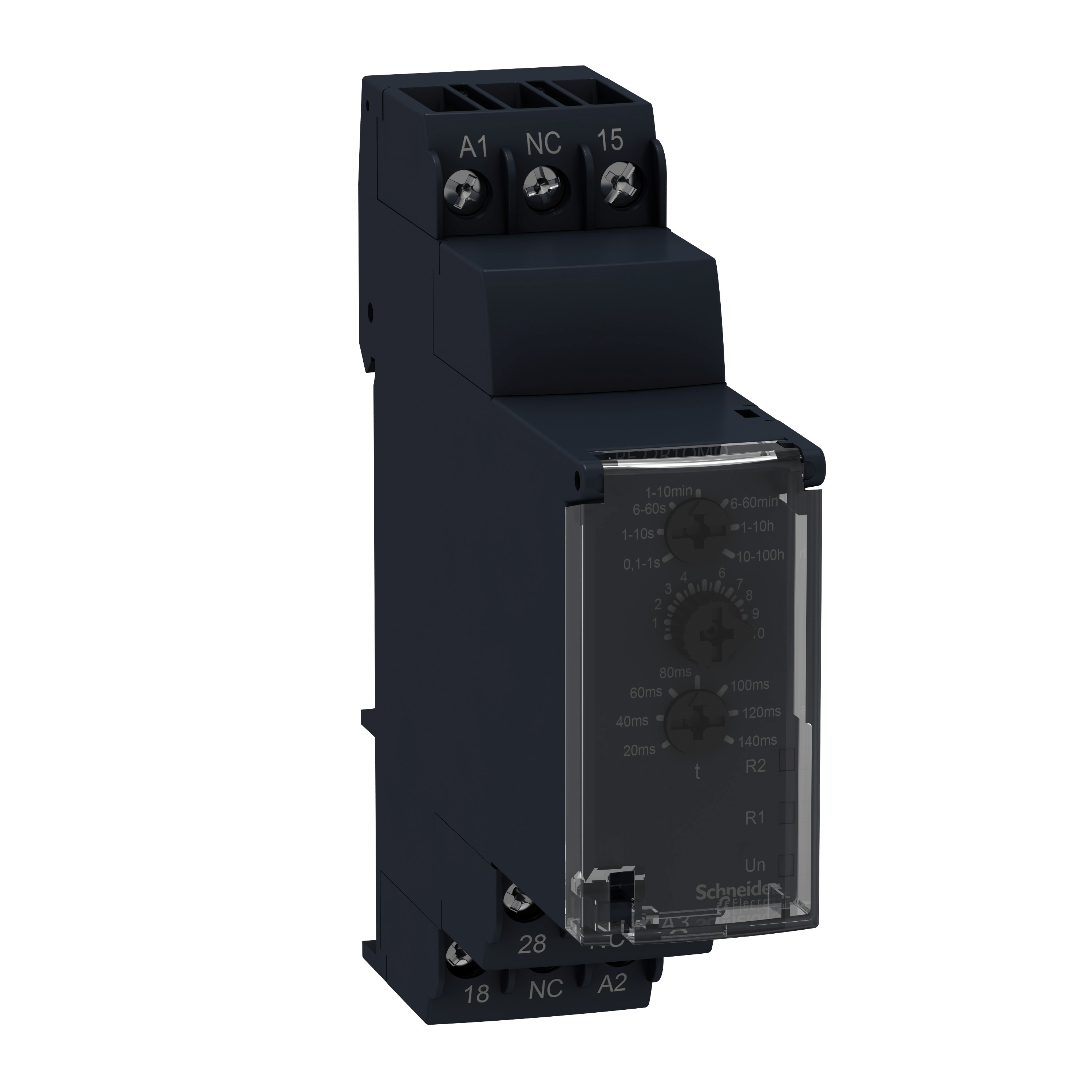

RE22R1QMQhttps://download.schneider-electric.com/files?p_Doc_Ref=PF153319&p_File_Type=rendition_4000_pngstar-delta timing relay - 230VAC/440VAC - 1 C/O.Label:Zelio Time-range of product:Zelio Time-nominal output current:8 A-product or component type:modular timing relay-discrete output type:relay-device short name:RE22-Range Presentation:
- Multifunction- Relay or solid state output- Wide voltage range from 24 to 240 V- Single timing range or multi-range from 50 ms to 300 hrs- Conformity with IEC 61812-1, EN 61812-1 standards-Range Benefits:Timer relays that are simply ingenious Accurate adjustments and legible wiring diagrams on the side of Zelio Time relays make them simple, fast, and easy to set up. And with a choice in the number of outputs and either screw or spring connection terminals, Zelio Time is the flexible, high performance solution.-Range Application Presentation:
- Industry and building: simple machine control panels, process control. - Applications requiring frequent and simple adjustment of cycle times.
GBP
Stock Code: RE22R1QMQ
Call for availability on 0345 030 60 80
63.97£53.31 (exc VAT) per 1
£63.97 (inc VAT)
Quantity: - +

Product Description

star-delta timing relay - 230VAC/440VAC - 1 C/O.Label:Zelio Time-range of product:Zelio Time-nominal output current:8 A-product or component type:modular timing relay-discrete output type:relay-device short name:RE22-Range Presentation:
- Multifunction- Relay or solid state output- Wide voltage range from 24 to 240 V- Single timing range or multi-range from 50 ms to 300 hrs- Conformity with IEC 61812-1, EN 61812-1 standards-Range Benefits:Timer relays that are simply ingenious Accurate adjustments and legible wiring diagrams on the side of Zelio Time relays make them simple, fast, and easy to set up. And with a choice in the number of outputs and either screw or spring connection terminals, Zelio Time is the flexible, high performance solution.-Range Application Presentation:
- Industry and building: simple machine control panels, process control. - Applications requiring frequent and simple adjustment of cycle times.

Weight0.108
Width22.5 mm
Height2.5 mm
Depth8.3 mm
