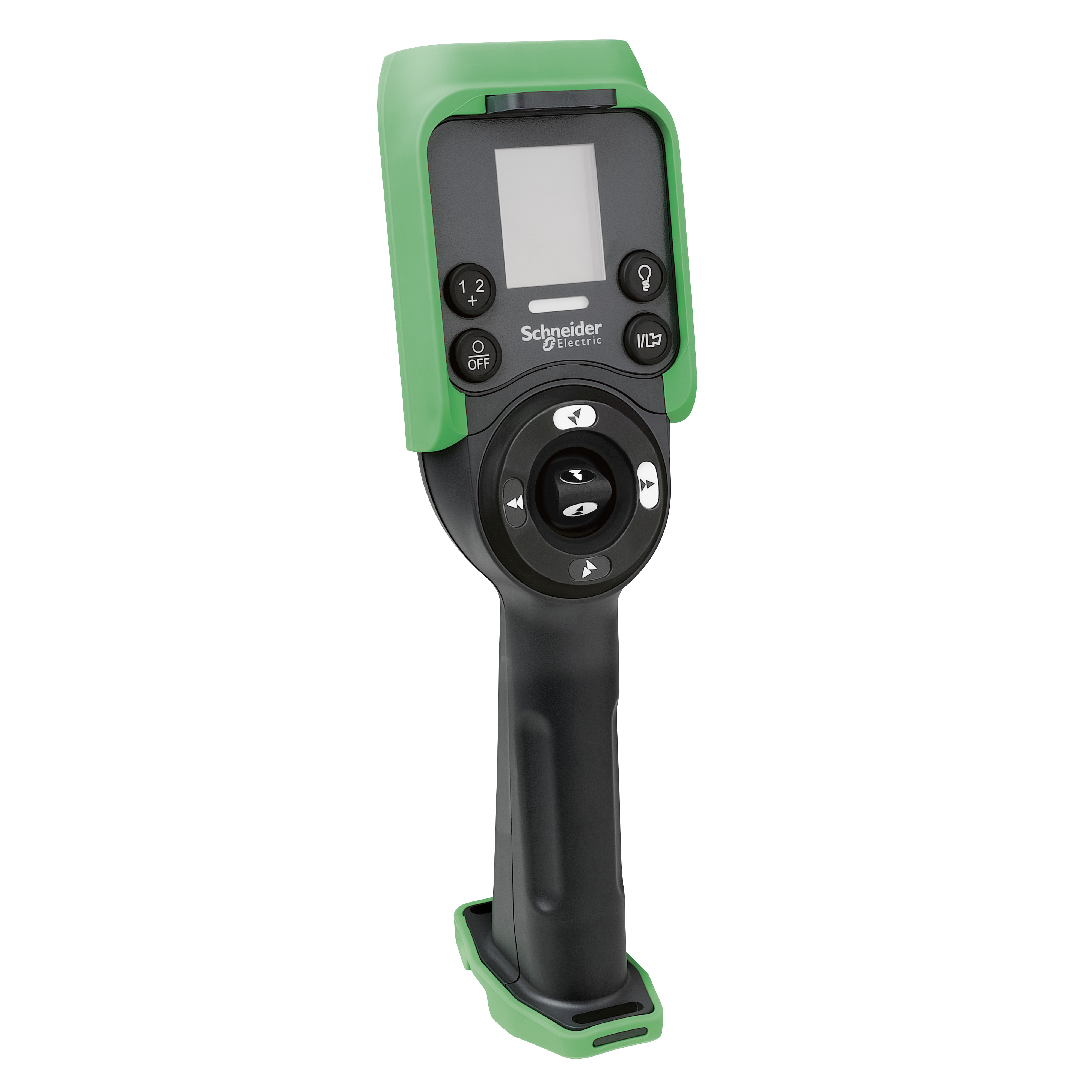

REMOTE MBC MASTER OR SLAVE, DISPLAY 8 PU

REMOTE MBC MASTER OR SLAVE, DISPLAY 8 PU

ZART8DMhttps://download.schneider-electric.com/files?p_Doc_Ref=PF122407&p_File_Type=rendition_4000_pngBasic features - 2 auxiliary pushbuttons used as Master or Slave in MBC(Tandem). Label: Harmony eXLhoist - range of product: Harmony XAR - product or component type: hand-held remote control - device short name: ZART - control button type: N/A, N/A - Range Presentation:
FEATURES
Global use
- Conformity with IEC, UL, CSA, FCS, EAC, and worldwide radio certifications.- Robust communication protocol based on Bluetooth smart low energy transmission technology (2.4 GHz)
Integrated safety
- Wireless emergency stop compliant to SIL3, PL e, and IEC 62745- Protection against unintended operation, compliant to SIL1 and PLc- Embedded accelerometer detects unexpected movements
High efficiency
- Quick-charging battery technology: 15 minutes charge for 30 hours of autonomy- Ergonomic and intuitive design- Discovery function for system pairing and configuration- Remote diagnostics capabilities - Range Benefits:
- Unrestricted worldwide use on 2.4 GHz- Robust and ready to use SIL3 safety system- Highest battery availability with the lowest charging time- Increase operator comfort to minimize fatigue- Intuitive one-hand operations with focus on the load, not on the buttons- Easy and fast installation and maintenance- Up to 50 systems running simultaneously in an area of 100 m x 100 m- Automatic remote device replacement without intervention at the base station - Range Application Presentation:
- Hoisting: overhead and gantry cranes, self erecting cranes- Material handling
GBP
Stock Code: ZART8DM
Call for availability on 0345 030 60 80
This item is Obsolete
119999.99£99,999.99 (exc VAT) per 1
£119,999.99 (inc VAT)
Quantity: - +

Product Description

Basic features - 2 auxiliary pushbuttons used as Master or Slave in MBC(Tandem). Label: Harmony eXLhoist - range of product: Harmony XAR - product or component type: hand-held remote control - device short name: ZART - control button type: N/A, N/A - Range Presentation:
FEATURES
Global use
- Conformity with IEC, UL, CSA, FCS, EAC, and worldwide radio certifications.- Robust communication protocol based on Bluetooth smart low energy transmission technology (2.4 GHz)
Integrated safety
- Wireless emergency stop compliant to SIL3, PL e, and IEC 62745- Protection against unintended operation, compliant to SIL1 and PLc- Embedded accelerometer detects unexpected movements
High efficiency
- Quick-charging battery technology: 15 minutes charge for 30 hours of autonomy- Ergonomic and intuitive design- Discovery function for system pairing and configuration- Remote diagnostics capabilities - Range Benefits:
- Unrestricted worldwide use on 2.4 GHz- Robust and ready to use SIL3 safety system- Highest battery availability with the lowest charging time- Increase operator comfort to minimize fatigue- Intuitive one-hand operations with focus on the load, not on the buttons- Easy and fast installation and maintenance- Up to 50 systems running simultaneously in an area of 100 m x 100 m- Automatic remote device replacement without intervention at the base station - Range Application Presentation:
- Hoisting: overhead and gantry cranes, self erecting cranes- Material handling

Width100 mm
Height340 mm
Depth90 mm
