Weidmuller SNAP IN Terminal Blocks
Manufacturers and control panel builders are under constant pressure to reduce production times, improve reliability and manage increasingly complex wiring requirements.
At the same time, skilled labour is becoming harder to find, while demand for control cabinets, machinery and automation systems continues to grow.
So, how can businesses make control cabinet wiring faster, simpler and more efficient?
Weidmuller's SNAP IN technology is designed to do exactly that.

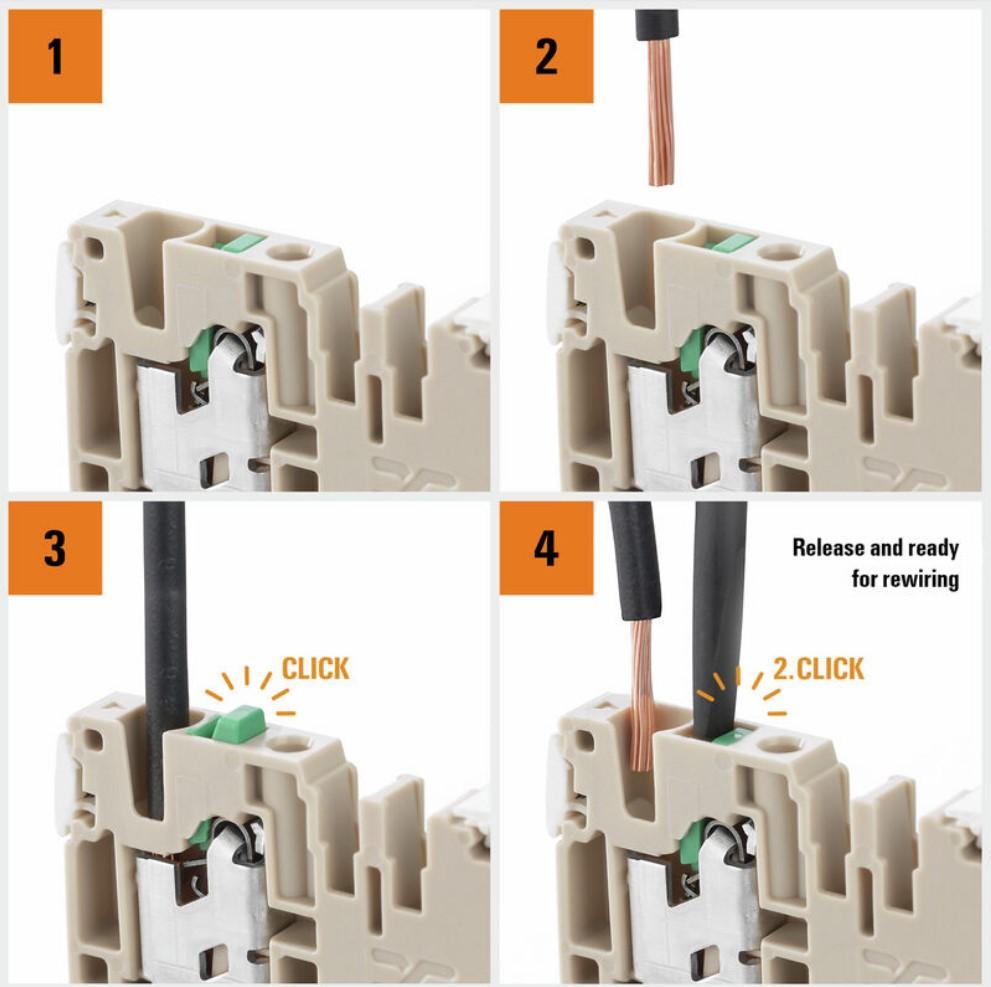

By combining a pre-loaded spring mechanism with tool-free conductor insertion and clear visual and audible feedback, SNAP IN makes connecting conductors a simple process: insert the wire, hear the click and you're connected.
What is Weidmuller SNAP IN technology?
SNAP IN is a spring-based connection technology developed by Weidmuller for faster and more intuitive electrical wiring.
Unlike traditional screw terminals, which require a screwdriver to tighten the connection, SNAP IN terminal blocks are supplied with their spring mechanism pre-loaded.
This means that the operator does not need to manually open the clamping point before inserting the conductor.
Instead, the stripped conductor is simply inserted directly into the open connection point.
When the conductor reaches the defined trigger point, the spring mechanism automatically releases and securely clamps the conductor in place.
The result is a connection process that is remarkably straightforward:
Insert. Click. Connected.
Why is SNAP IN different from traditional terminal blocks?
Traditional screw terminals have been used successfully for decades, but they can involve several individual steps.
The conductor may need to be prepared, a ferrule may need to be crimped onto the conductor, the terminal screw needs to be opened, the conductor inserted and the screw then tightened to the correct level.
When a control cabinet contains hundreds or even thousands of connections, these individual steps can add a considerable amount of time to the manufacturing process.
SNAP IN removes several of these manual operations.
There is no screwdriver required for the connection. Flexible conductors can be connected directly without wire-end ferrules and the spring mechanism automatically creates the contact when the conductor reaches the trigger point.
The result is a more streamlined wiring process.
Faster wiring means greater productivity
One of the biggest advantages of SNAP IN is speed.
Weidmuller states that SNAP IN can save up to 90% of the time required for wiring compared with crimped screw terminals, depending on the application and process being compared.
For a single connection, the difference may seem small.
However, control cabinets can contain hundreds or thousands of individual connections. When those savings are multiplied across an entire cabinet or production run, the potential impact becomes much more significant.
Reducing wiring time can help manufacturers:
- Increase production capacity
- Reduce assembly time
- Improve workflow efficiency
- Reduce repetitive manual operations
- Shorten control cabinet production lead times
- Make better use of skilled labour
In an industry where every minute of production time matters, small improvements to individual processes can add up to significant overall gains.
Clear visual and audible feedback
One of the challenges with any electrical connection is knowing that it has been completed correctly.
SNAP IN addresses this with two forms of feedback.
First, the operator can hear the characteristic click when the connection is activated.
Second, the position of the pusher provides a visual indication of the connection status.
This combination provides a straightforward way of checking the wiring process as it happens.
For control cabinet builders, this can help make the installation process more intuitive and reduce the opportunity for connection errors.
SNAP IN and the future of control cabinet manufacturing
The control cabinet industry is changing.
Customers increasingly expect shorter delivery times, greater flexibility and consistently high quality.
At the same time, manufacturers are dealing with rising labour costs, skills shortages and increasing production volumes.
Automation can help address some of these challenges, but automation is only effective when the individual components and processes are designed to support it.
This is where connection technology becomes important.
A terminal block might appear to be a relatively small component within a control cabinet, but it plays a critical role in the overall wiring process.
If a component is difficult or time-consuming to wire, it can become a bottleneck in production.
SNAP IN takes a different approach by making the connection process simple enough for manual wiring while also being designed with automated production in mind.
The real-world proof: a Guinness World Records achievement
The speed of SNAP IN has now been demonstrated on a very large scale.
In 2026, Weidmuller achieved an official GUINNESS WORLD RECORDS title using SNAP IN technology.
The challenge involved wiring 500 terminal blocks, representing 1,000 connection points, in just 2 minutes and 55 seconds.
While a world-record attempt is obviously different from everyday control cabinet production, it provides an impressive demonstration of the speed and simplicity of the technology.
More importantly, it highlights the fundamental principle behind SNAP IN: reducing the number of steps required to create a secure electrical connection.
Control cabinet manufacturing is evolving.
As production demands increase and manufacturers look for ways to improve efficiency, traditional processes are being reconsidered from the ground up.
Weidmuller's SNAP IN terminal blocks offer a simple approach to one of the most repetitive parts of panel building: wiring.
With a pre-loaded spring mechanism, tool-free conductor insertion, clear visual and audible feedback, support for flexible conductors and a design that is ready for automated wiring, SNAP IN brings together speed, simplicity and future-focused manufacturing.
The principle is remarkably straightforward:
Insert the conductor. Hear the click. Move on to the next connection.
For today's control cabinet builder, that can mean faster wiring and a more efficient production process.
For tomorrow's automated factory, it could be another important step towards fully automated control cabinet manufacturing.
SNAP IN isn't just about connecting wires. It's about changing the way control cabinets are built.
