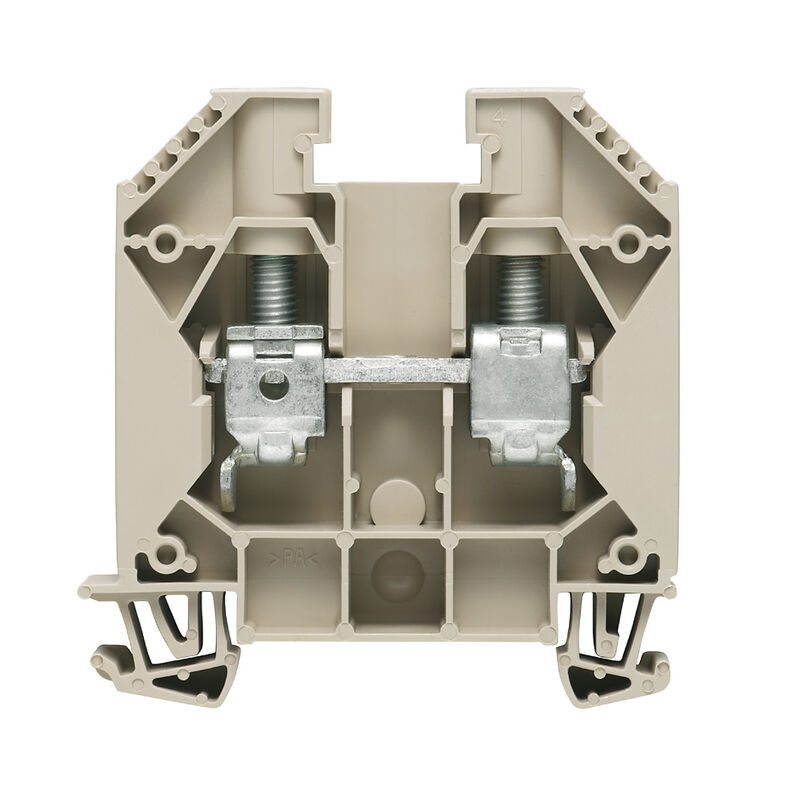

Weidmuller | 1028900000 | WDU 16/ZA | W-SERIES - Feedthrough Terminal | Clamping Yoke Technology - Standard, 1 Tier 16 mm²
Are you look for reliable terminal that also ensures the ultimate in contact safety?
Weidmuller 1028900000 (WDU 16/ZA) with screw connection with clamping yoke technology (screw connection) is the perfect solution. This application is a universal connectivity solution that allows this to be used in harsh environments, thanks to its numerous national and international approvals and qualifications. The WDU 4 features a standard design for all applications.
The screw connection has long been an established connection element to meet exacting demands regarding reliability and functionality. Plus the W-Series is still setting standards.
Version: Feed-through terminal, Screw connection, 16 mm², 1000 V, 76 A, dark beige
Order Number: 1028900000
Type: WDU 16/ZA
Product Dimension: 62.5 x 60x 11.9mm
Continuous Operating Temperature min…max: -60?…130?
Colour: Dark Beige
Rated Voltage: 1000 V
Rated Current: 76 A
Rail: TS 35
Wire connection AWG Min...Max: 6…24
Standards: IEC 60947-7-1
Version: Screw Connection, for plug-in cross connector, for screwable cross-connection, one end without connector.
Additional Information
The W-Series offers many convincing benefits and comes in four different designs. Thanks to the range of models and real flexibility, our modular terminal blocks with clamping yoke technology can be used in a wide range of different applications. Whatever your requirements for the control cabinet are: our screw connection system with patented clamping yoke technology ensures the ultimate in contact safety.
