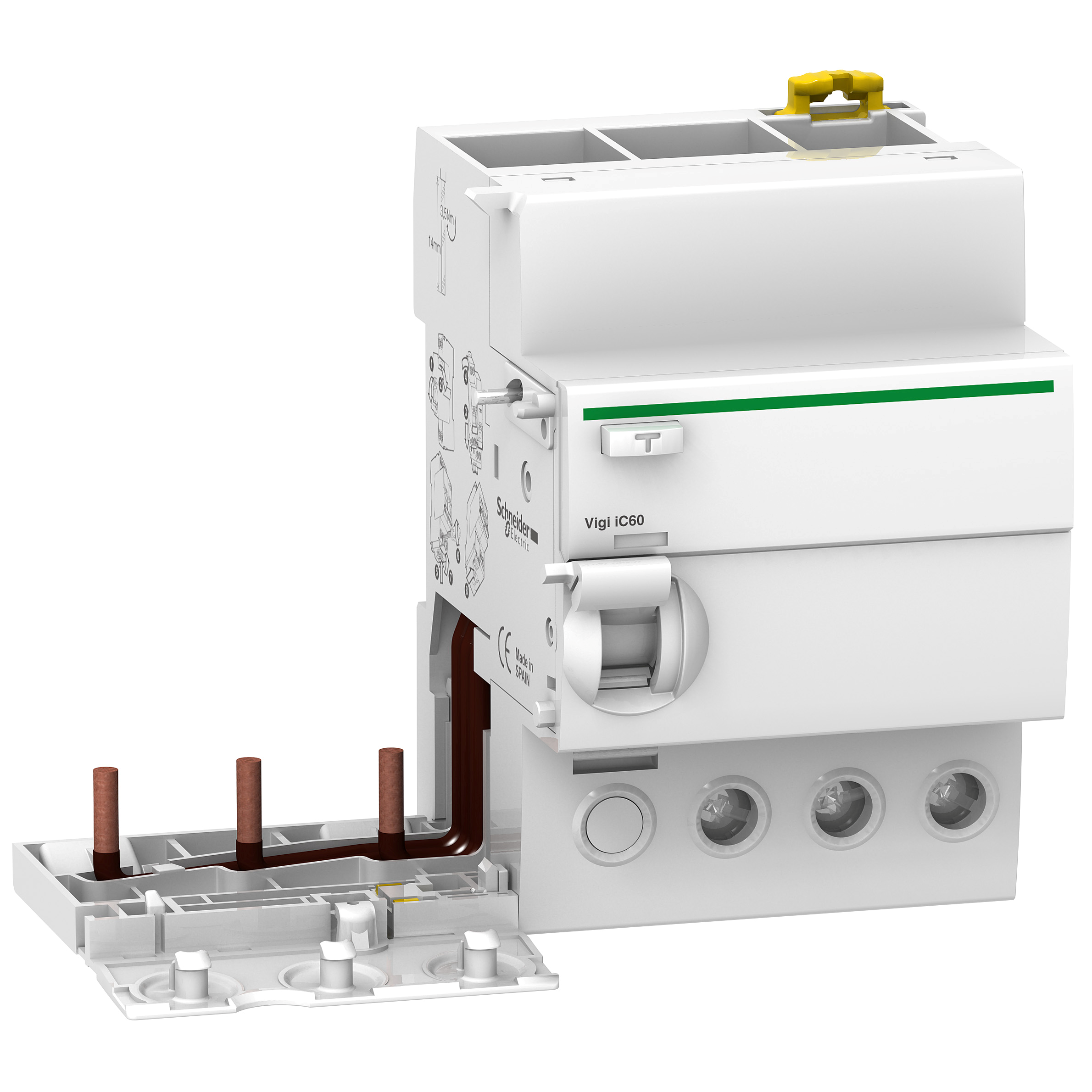

Schneider Electric ACTI9 VIGI IC60 3P 63A 300MA A-TYPE ADD-

Vigi iC60 - earth leakage add-on block - 3P - 63A - 300mA - A type. Label: iC60 - range: Acti 9 - earth-leakage sensitivity: 300 mA - earth-leakage protection time delay: instantaneous - earth-leakage protection class: type A - network type: AC - network frequency: 50/60 Hz - [Ue] rated operational voltage: N/A, N/A - range of product: iC60,Reflex iC60 - standards: IEC 61009-1,EN 61009-1 - 9 mm pitches: 7 - product or component type: add-on residual current devices - device short name: Vigi iC60 - poles description: 3P - [In] rated current: 63 A - Range Presentation: With exclusive features, the Acti 9 iC60 DIN rail MCB is definitely geared to absolute safety and improved continuity of service. - VisiSafe : for safe operation and maintenance work on circuits.- Class-2 insulation : continuous safety for operators and unqualified personnel.- VisiTrip : detects faulty Miniature Circuit-Breaker outgoers quickly and reduces intervention time.- Add-on fully immune earth leakage protection devices : better continuity of service, especially in polluted environments and networks.- Nominal current: 1 to 63 A- Large choice of breaking capacities up to 100 kA and tripping curves: B, C, D, Compliance with standards IEC/EN 60898 or IEC/EN 60947-2,- Full coordination with Acti 9 range Residual Current Devices (RCDs) and Compact NSX Moulded Case Circuit Breakers (MCCBs), - Suitable for isolation in accordance with industrial standard IEC 60947- Operating voltage: up to 440 V AC, insulation voltage: 500 V- Optional add-on earth leakage modules: iC60 Vigi, - Optional auxiliaries: indication of state and tripping, shunt tripping, undervoltage tripping, overvoltage tripping, - Range Benefits: - The new reference in final distribution,- Absolute safety of circuit protection with VisiSafe,- Greater continuity of service with VisiTrip,- Simple to choose with meaningful part numbers,- Easy to install with quick, ergonomic & safe IP20B terminal shutters & robust connections (twice the standard tightening torque),- Environmentally friendly with 100% recyclable & recoverable materials. - Range Application Presentation: Low-voltage final distribution - Protection of electrical circuits in all industrial and commercial buildings,- All applications, especially in polluted environments and networks,- Motor circuit protection,- DC current circuit protection.

Stock Code: A9V54363

Call for availability on 0345 030 60 80

Product Description

Vigi iC60 - earth leakage add-on block - 3P - 63A - 300mA - A type. Label: iC60 - range: Acti 9 - earth-leakage sensitivity: 300 mA - earth-leakage protection time delay: instantaneous - earth-leakage protection class: type A - network type: AC - network frequency: 50/60 Hz - [Ue] rated operational voltage: N/A, N/A - range of product: iC60,Reflex iC60 - standards: IEC 61009-1,EN 61009-1 - 9 mm pitches: 7 - product or component type: add-on residual current devices - device short name: Vigi iC60 - poles description: 3P - [In] rated current: 63 A - Range Presentation: With exclusive features, the Acti 9 iC60 DIN rail MCB is definitely geared to absolute safety and improved continuity of service.
- VisiSafe : for safe operation and maintenance work on circuits.- Class-2 insulation : continuous safety for operators and unqualified personnel.- VisiTrip : detects faulty Miniature Circuit-Breaker outgoers quickly and reduces intervention time.- Add-on fully immune earth leakage protection devices : better continuity of service, especially in polluted environments and networks.- Nominal current: 1 to 63 A- Large choice of breaking capacities up to 100 kA and tripping curves: B, C, D, Compliance with standards IEC/EN 60898 or IEC/EN 60947-2,- Full coordination with Acti 9 range Residual Current Devices (RCDs) and Compact NSX Moulded Case Circuit Breakers (MCCBs), - Suitable for isolation in accordance with industrial standard IEC 60947- Operating voltage: up to 440 V AC, insulation voltage: 500 V- Optional add-on earth leakage modules: iC60 Vigi, - Optional auxiliaries: indication of state and tripping, shunt tripping, undervoltage tripping, overvoltage tripping,
- Range Benefits:
- The new reference in final distribution,- Absolute safety of circuit protection with VisiSafe,- Greater continuity of service with VisiTrip,- Simple to choose with meaningful part numbers,- Easy to install with quick, ergonomic & safe IP20B terminal shutters & robust connections (twice the standard tightening torque),- Environmentally friendly with 100% recyclable & recoverable materials. - Range Application Presentation: Low-voltage final distribution
- Protection of electrical circuits in all industrial and commercial buildings,- All applications, especially in polluted environments and networks,- Motor circuit protection,- DC current circuit protection.
