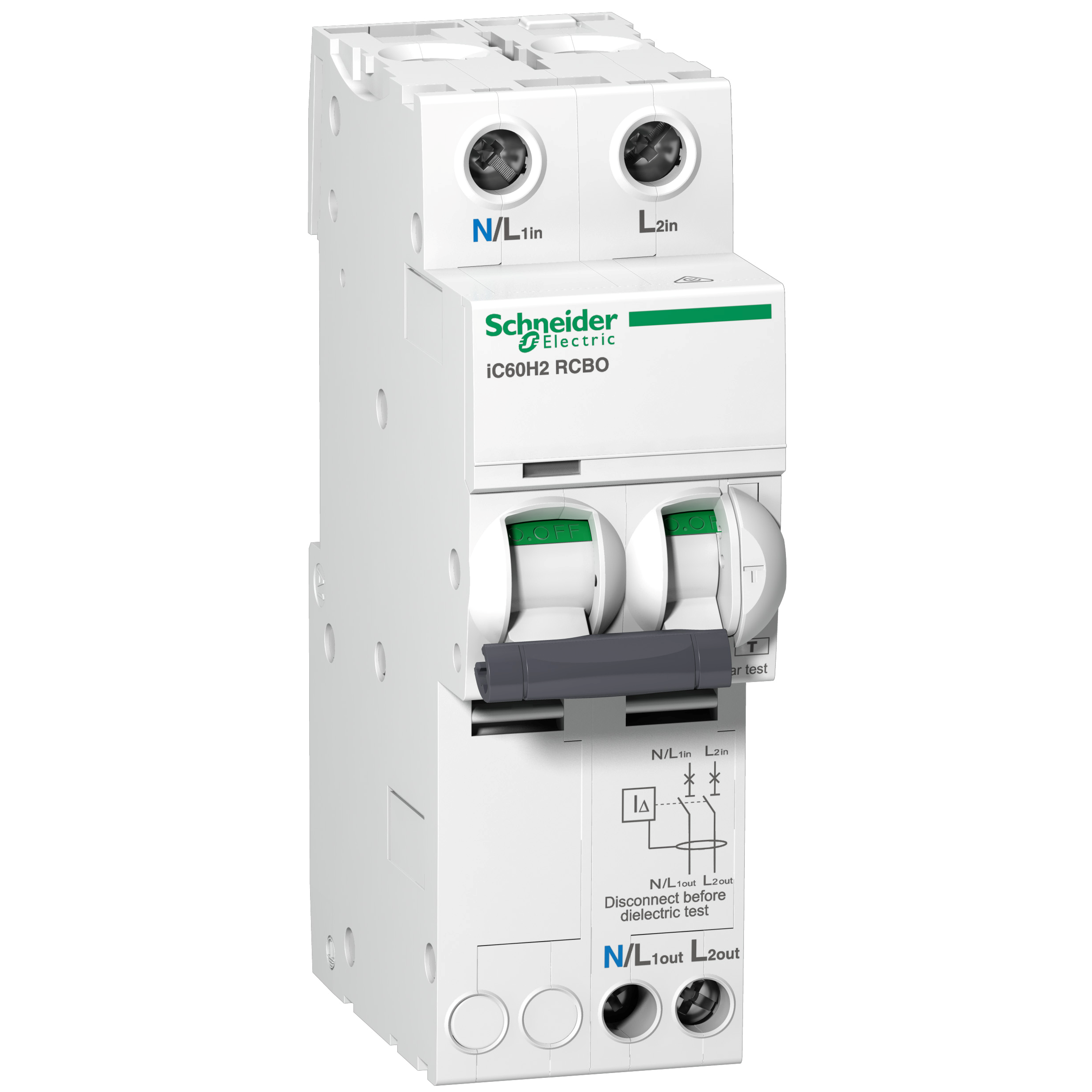

Schneider Electric Acti9 iC60H2 2P C 16A 30mA A RCBO

Schneider Electric Acti9 iC60H2 2P C 16A 30mA A RCBO

A9D11216https://download.schneider-electric.com/files?p_Doc_Ref=PB111076&p_File_Type=rendition_4000_pngiC60H2 - earth leakage circuit breaker - 2P - C curve - 16 A - 30m A - 240 V.Label:Acti 9 iC60 RCBO-circuit breaker application:distribution-earthing system:TN,TT,IT-curve code:C-range:Acti 9-earth-leakage sensitivity:30 mA-range of product:Acti 9-product name:Acti 9 iC60 RCBO-product or component type:residual current breaker with overcurrent protection (RCBO)-device short name:iC60H2 RCBO-poles description:2P-Range Presentation:The Acti 9 iC60 RCBO's self-contained residual current device is designed to offer complete protection for final circuits : - protects against short-circuits and cable overloads - protects personnel against electric shock by direct or indirect contact. - protects equipment against fires set by leakage currents - For single-phase Acti 9 iC60 RCBO, the neutral is not interrupted when device is tripped. Hence RCBO can be used on most circuits, except those operating under TT or IT earthing systems. - The 2 poles Acti 9 iC60 RCBO switches neutral together with phase. It is therefore suitable for all circuits, irrespective of earthing system (except for TN-C).-Range Benefits: - IP20 Insulated terminals - Test push-button - Visi-Trip window: Fault tripping is indicated by a red mechanical indicator on the front face - Positive contact indication: The green strip guarantees physical opening of the contacts and permits - Clocking clip for dismounting - Padlocking device - Increased product service life thanks to fast-closing feature independent of the speed of actuation of the toggle. - Remote indication: open/closed/tripped, with optional auxiliary contacts.-Range Application Presentation:Commercial building and Industry
GBP
Stock Code: A9D11216
Call for availability on 0345 030 60 80
287.39£239.49 (exc VAT) per 1
£287.39 (inc VAT)
Quantity: - +

Product Description

iC60H2 - earth leakage circuit breaker - 2P - C curve - 16 A - 30m A - 240 V.Label:Acti 9 iC60 RCBO-circuit breaker application:distribution-earthing system:TN,TT,IT-curve code:C-range:Acti 9-earth-leakage sensitivity:30 mA-range of product:Acti 9-product name:Acti 9 iC60 RCBO-product or component type:residual current breaker with overcurrent protection (RCBO)-device short name:iC60H2 RCBO-poles description:2P-Range Presentation:The Acti 9 iC60 RCBO's self-contained residual current device is designed to offer complete protection for final circuits :
- protects against short-circuits and cable overloads - protects personnel against electric shock by direct or indirect contact. - protects equipment against fires set by leakage currents - For single-phase Acti 9 iC60 RCBO, the neutral is not interrupted when device is tripped.
Hence RCBO can be used on most circuits, except those operating under TT or IT earthing systems. - The 2 poles Acti 9 iC60 RCBO switches neutral together with phase.
It is therefore suitable for all circuits, irrespective of earthing system (except for TN-C).-Range Benefits:
- IP20 Insulated terminals - Test push-button - Visi-Trip window: Fault tripping is indicated by a red mechanical indicator on the front face - Positive contact indication: The green strip guarantees physical opening of the contacts and permits - Clocking clip for dismounting - Padlocking device - Increased product service life thanks to fast-closing feature independent of the speed of actuation of the toggle. - Remote indication: open/closed/tripped, with optional auxiliary contacts.-Range Application Presentation:Commercial building and Industry

Width36 mm
Height110 mm
Depth75.5 mm
