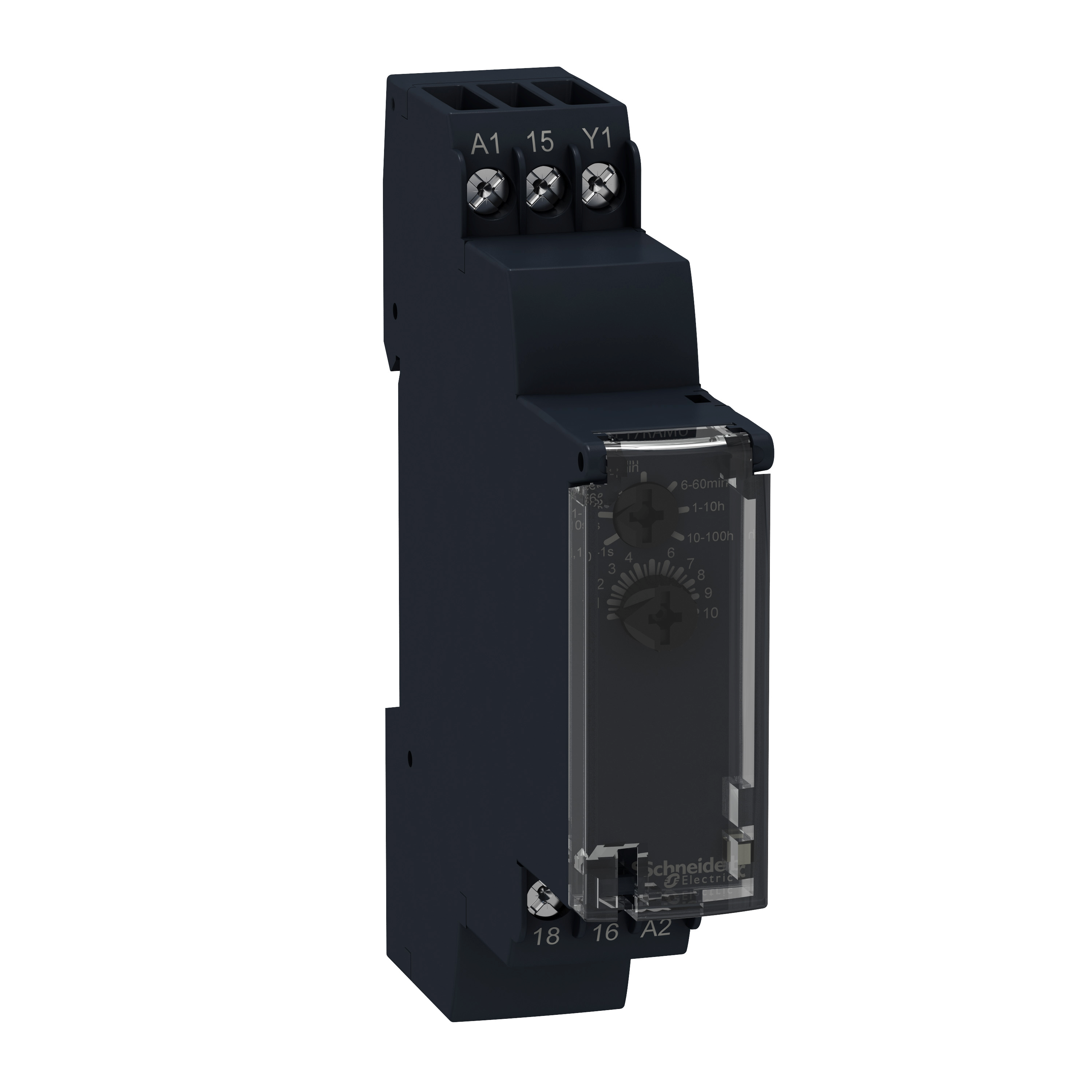

RE17RAMUhttps://download.schneider-electric.com/files?p_Doc_Ref=PF153307&p_File_Type=rendition_4000_pngon-delay timing relay - 1 s..100 h - 24..240 V AC - 1 OC.Label:Zelio Time-range of product:Zelio Time-nominal output current:8 A-product or component type:modular timing relay-discrete output type:relay-width:17.5 mm-device short name:RE17R-time delay type:At,A-time delay range:1...10 min,10...100 h,0.1...1 s,6...60 s,6...60 min,1...10 s,1...10 h-Range Presentation: - Multifunction- Relay or solid state output- Wide voltage range from 24 to 240 V- Single timing range or multi-range from 50 ms to 300 hrs- Conformity with IEC 61812-1, EN 61812-1 standards-Range Benefits:Timer relays that are simply ingenious Accurate adjustments and legible wiring diagrams on the side of Zelio Time relays make them simple, fast, and easy to set up. And with a choice in the number of outputs and either screw or spring connection terminals, Zelio Time is the flexible, high performance solution.-Range Application Presentation: - Industry and building: simple machine control panels, process control. - Applications requiring frequent and simple adjustment of cycle times.
on-delay timing relay - 1 s..100 h - 24..240 V AC - 1 OC.Label:Zelio Time-range of product:Zelio Time-nominal output current:8 A-product or component type:modular timing relay-discrete output type:relay-width:17.5 mm-device short name:RE17R-time delay type:At,A-time delay range:1...10 min,10...100 h,0.1...1 s,6...60 s,6...60 min,1...10 s,1...10 h-Range Presentation: - Multifunction- Relay or solid state output- Wide voltage range from 24 to 240 V- Single timing range or multi-range from 50 ms to 300 hrs- Conformity with IEC 61812-1, EN 61812-1 standards-Range Benefits:Timer relays that are simply ingenious Accurate adjustments and legible wiring diagrams on the side of Zelio Time relays make them simple, fast, and easy to set up. And with a choice in the number of outputs and either screw or spring connection terminals, Zelio Time is the flexible, high performance solution.-Range Application Presentation: - Industry and building: simple machine control panels, process control. - Applications requiring frequent and simple adjustment of cycle times.
