ELECTRONIC OLR 6.4-32 A

ELECTRONIC OLR 6.4-32 A

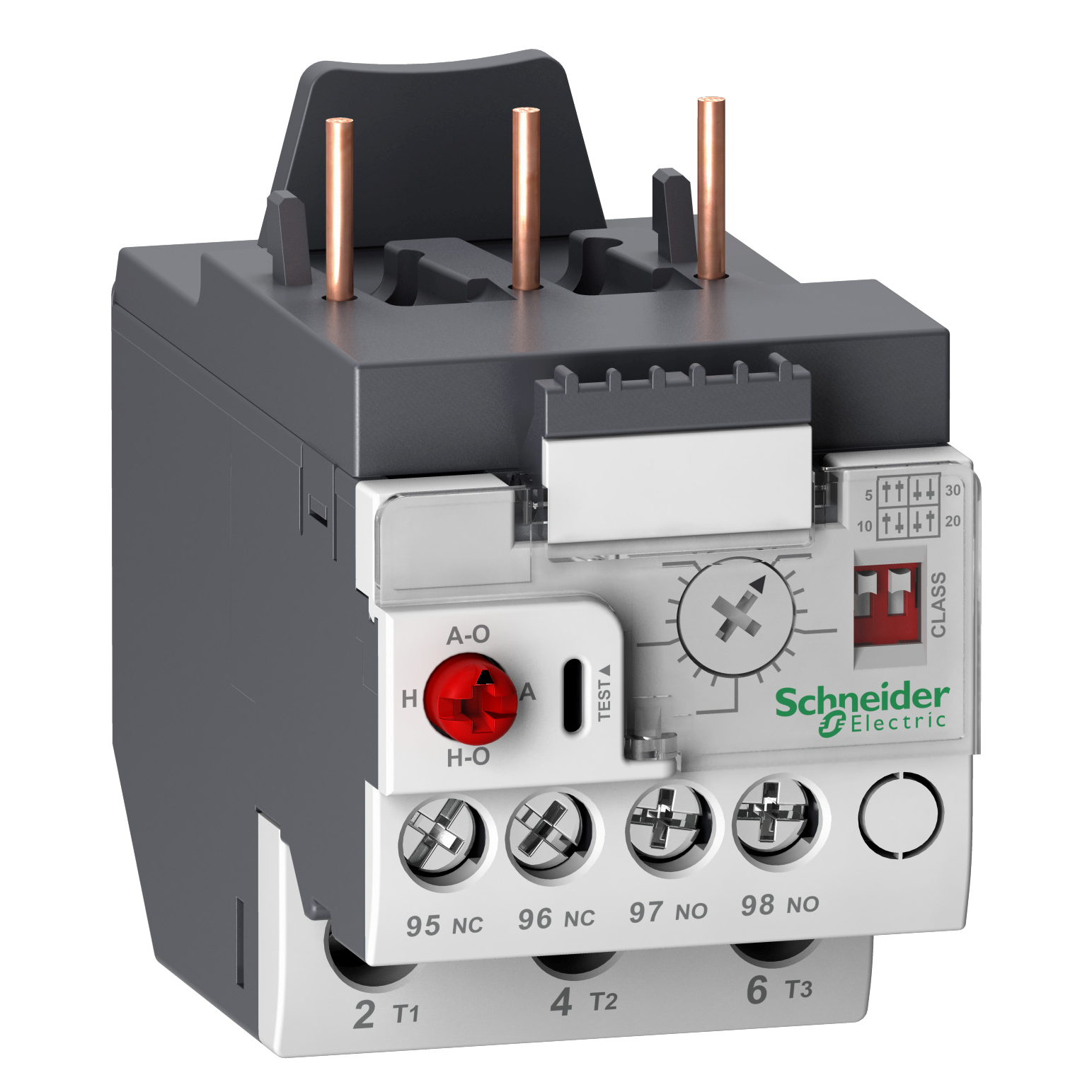

LR9D32https://www.cca.co.uk/image.php?filename=lr9d32.jpg&stockcode=LR9D32&category=schneider-contactors-manual-motor-starters--overloads&width=1000&height=1000TeSys LRD - electronic thermal overload relay - 3P - 6.4...32 A. Label: TeSys LR9 - LR9D / LR9F - range: TeSys - maximum power consumption in W: 300 mW - mounting support: rail, with specific accessories ,plate, with specific accessories ,under contactor - product name: TeSys LRD - device short name: LR9D - product or component type: electronic thermal overload relay - relay application: motor protection - product compatibility: LC1D09,LC1D25,LC1D32,LC1D38,LC1D12,LC1D18 - thermal overload class: class 5...30 - thermal protection adjustment range: 6.4-32 A - Range Presentation: 3 complete offers of electronic thermal overload relays for advanced motor protection:
NEW LR9D01-110S
* 5 current ranges from 0.1 to 110A
* Class 5, 10, 20, 30 selectable
* 5:1 FLA adjustment
* Direct mounting to LC1D09-D38 contactors (LR9D01-32)
* Three-phase and single-phase applications
* Compact 45mm size (LR9D01-32)
LR9D
* 2 current ranges from 60 to 150A
* Direct mounting to LC1D115-150 contactors
Simplified version:
* Class 10, Class 20
Complete version:
* Class 10, 20 selectable
* Alarm function to avoid tripping by load shedding
* Three-phase and single-phase applications
LR9F
* 8 current ranges from 30 to 630A
* Direct mounting to LC1F115-630 contactors
Simplified version:
* Class 10, Class 20
Complete version:
* Class 10, 20 selectable
* Alarm function to avoid tripping by load shedding
* Three-phase and single-phase applications
All versions offer:
* Settings locked by sealing the transparent flap
* Screw terminals - Range Benefits: Electronics harnessed for motor starters. These ingenious electronic overload relays offer a wide current adjustment range and a high level of accuracy due to thermal modeling suitable for even the most demanding applications. They can be directly mounted to TeSys D and F contactors to form extremely compact motor starters. - Range Application Presentation:
- Industry, infrastructure, building, etc. - Standard motor protection - Line protection - Motor overload, stalling, loss of phase protection
GBP
Stock Code: LR9D32
Call for availability on 0345 030 60 80
183.17£152.64 (exc VAT) per 1
£183.17 (inc VAT)
Quantity: - +

Product Description

TeSys LRD - electronic thermal overload relay - 3P - 6.4...32 A. Label: TeSys LR9 - LR9D / LR9F - range: TeSys - maximum power consumption in W: 300 mW - mounting support: rail, with specific accessories ,plate, with specific accessories ,under contactor - product name: TeSys LRD - device short name: LR9D - product or component type: electronic thermal overload relay - relay application: motor protection - product compatibility: LC1D09,LC1D25,LC1D32,LC1D38,LC1D12,LC1D18 - thermal overload class: class 5...30 - thermal protection adjustment range: 6.4-32 A - Range Presentation: 3 complete offers of electronic thermal overload relays for advanced motor protection:
NEW LR9D01-110S
* 5 current ranges from 0.1 to 110A
* Class 5, 10, 20, 30 selectable
* 5:1 FLA adjustment
* Direct mounting to LC1D09-D38 contactors (LR9D01-32)
* Three-phase and single-phase applications
* Compact 45mm size (LR9D01-32)
LR9D
* 2 current ranges from 60 to 150A
* Direct mounting to LC1D115-150 contactors
Simplified version:
* Class 10, Class 20
Complete version:
* Class 10, 20 selectable
* Alarm function to avoid tripping by load shedding
* Three-phase and single-phase applications
LR9F
* 8 current ranges from 30 to 630A
* Direct mounting to LC1F115-630 contactors
Simplified version:
* Class 10, Class 20
Complete version:
* Class 10, 20 selectable
* Alarm function to avoid tripping by load shedding
* Three-phase and single-phase applications
All versions offer:
* Settings locked by sealing the transparent flap
* Screw terminals - Range Benefits: Electronics harnessed for motor starters. These ingenious electronic overload relays offer a wide current adjustment range and a high level of accuracy due to thermal modeling suitable for even the most demanding applications. They can be directly mounted to TeSys D and F contactors to form extremely compact motor starters. - Range Application Presentation:
- Industry, infrastructure, building, etc. - Standard motor protection - Line protection - Motor overload, stalling, loss of phase protection

Width45 mm
Height72.5 mm
Depth79.9 mm
