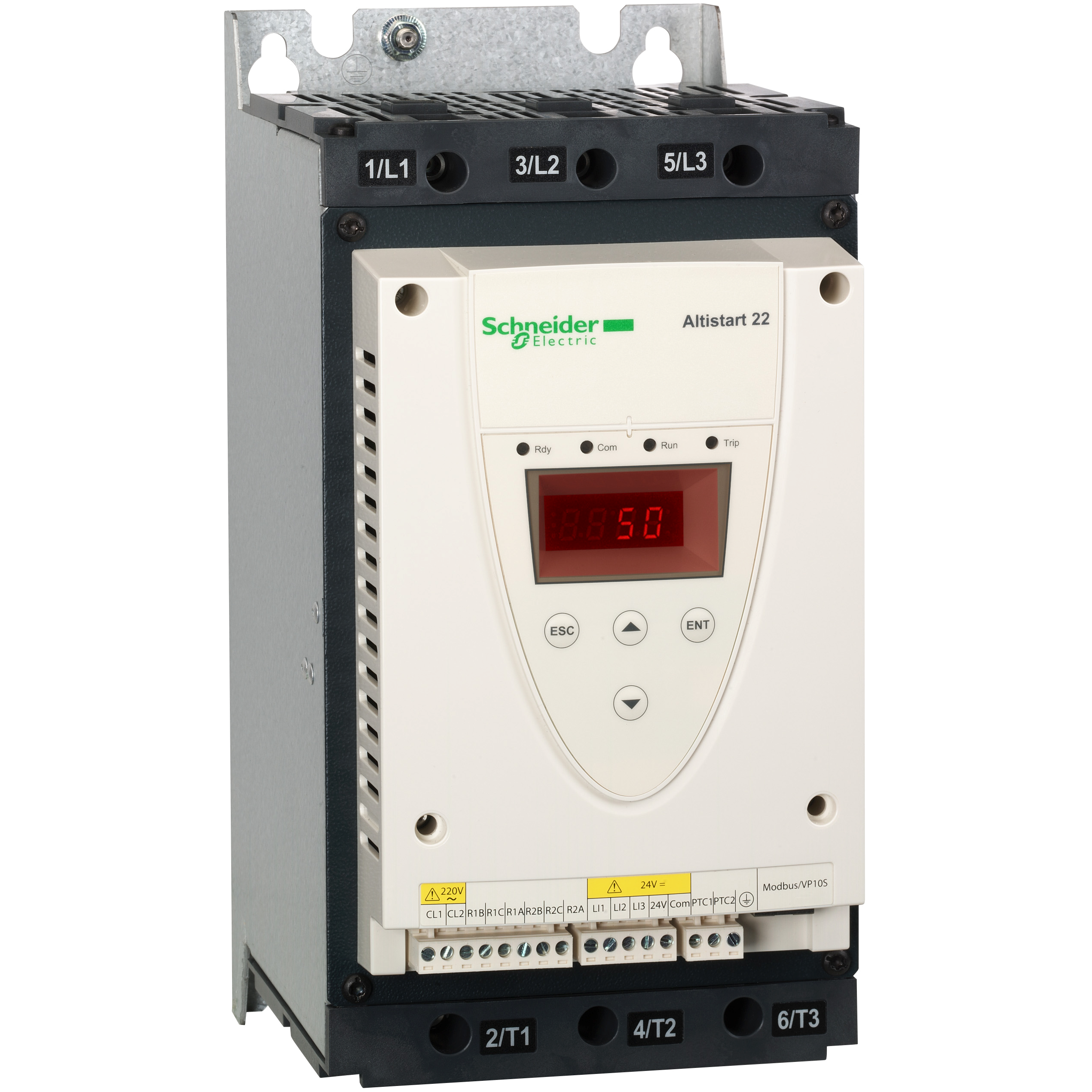

ATS22D88S6Uhttps://download.schneider-electric.com/files?p_Doc_Ref=PF095003&p_File_Type=rendition_4000_pngsoft starter-ATS22-control110V-power 208V(25hp)/230V(30hp)/460V(60hp)/575V(75hp).Label:Altistart 22-range of product:Altistart 22-factory setting current:77 A-utilisation category:AC-53A-product or component type:soft starter-type of start:start with torque control (current limited to 3.5 In)-product destination:asynchronous motors-product specific application:pumps and fans-component name:ATS22-network number of phases:3 phases-Range Presentation:Soft start/soft stop unit for infrastructure and industrial applicationsAltistart 22 soft start/soft stop unit for 3-phase asynchronous motorsSimplifies installation and operation - Saves time on wiring (6 terminals instead of 12) - Optimises the size of your enclosures (very compact product) - Keeps temperature rises to a minimum (low heat dissipation) - Reduces the number of components to manage (multifunction product)Protects your installations - Minimises jolts and shocks - Reduces mechanical stresses on the machines - Increases the service life of your installations - Prevents installation failure by detecting and signalling faults such as a blocked motor, underload or incorrect earthing of one of the 3 phasesA safe product with numerous integrated functions - Bypass and safety functions - Protection devices for monitoring the motor, the electrical installation and the starter itself - Simple setup and operation with: - 4 light emitting diodes (LEDs) - 4 navigation keys - 4-digit display - SoMove setup software (common to the Altivar, Lexium and TeSys ranges) - Coated cards as standard for enhanced resistance to harsh environments-Range Benefits:Bypass the stresses and let your applications take the strain - Integrates bypass and safety functions - Reduces your operating costs - Simplifies wiring - Protects your electrical installation - Saves space with a fully equipped product-Range Application Presentation: - Pumps - Fans - Compressors
soft starter-ATS22-control110V-power 208V(25hp)/230V(30hp)/460V(60hp)/575V(75hp).Label:Altistart 22-range of product:Altistart 22-factory setting current:77 A-utilisation category:AC-53A-product or component type:soft starter-type of start:start with torque control (current limited to 3.5 In)-product destination:asynchronous motors-product specific application:pumps and fans-component name:ATS22-network number of phases:3 phases-Range Presentation:Soft start/soft stop unit for infrastructure and industrial applicationsAltistart 22 soft start/soft stop unit for 3-phase asynchronous motorsSimplifies installation and operation - Saves time on wiring (6 terminals instead of 12) - Optimises the size of your enclosures (very compact product) - Keeps temperature rises to a minimum (low heat dissipation) - Reduces the number of components to manage (multifunction product)Protects your installations - Minimises jolts and shocks - Reduces mechanical stresses on the machines - Increases the service life of your installations - Prevents installation failure by detecting and signalling faults such as a blocked motor, underload or incorrect earthing of one of the 3 phasesA safe product with numerous integrated functions - Bypass and safety functions - Protection devices for monitoring the motor, the electrical installation and the starter itself - Simple setup and operation with: - 4 light emitting diodes (LEDs) - 4 navigation keys - 4-digit display - SoMove setup software (common to the Altivar, Lexium and TeSys ranges) - Coated cards as standard for enhanced resistance to harsh environments-Range Benefits:Bypass the stresses and let your applications take the strain - Integrates bypass and safety functions - Reduces your operating costs - Simplifies wiring - Protects your electrical installation - Saves space with a fully equipped product-Range Application Presentation: - Pumps - Fans - Compressors
