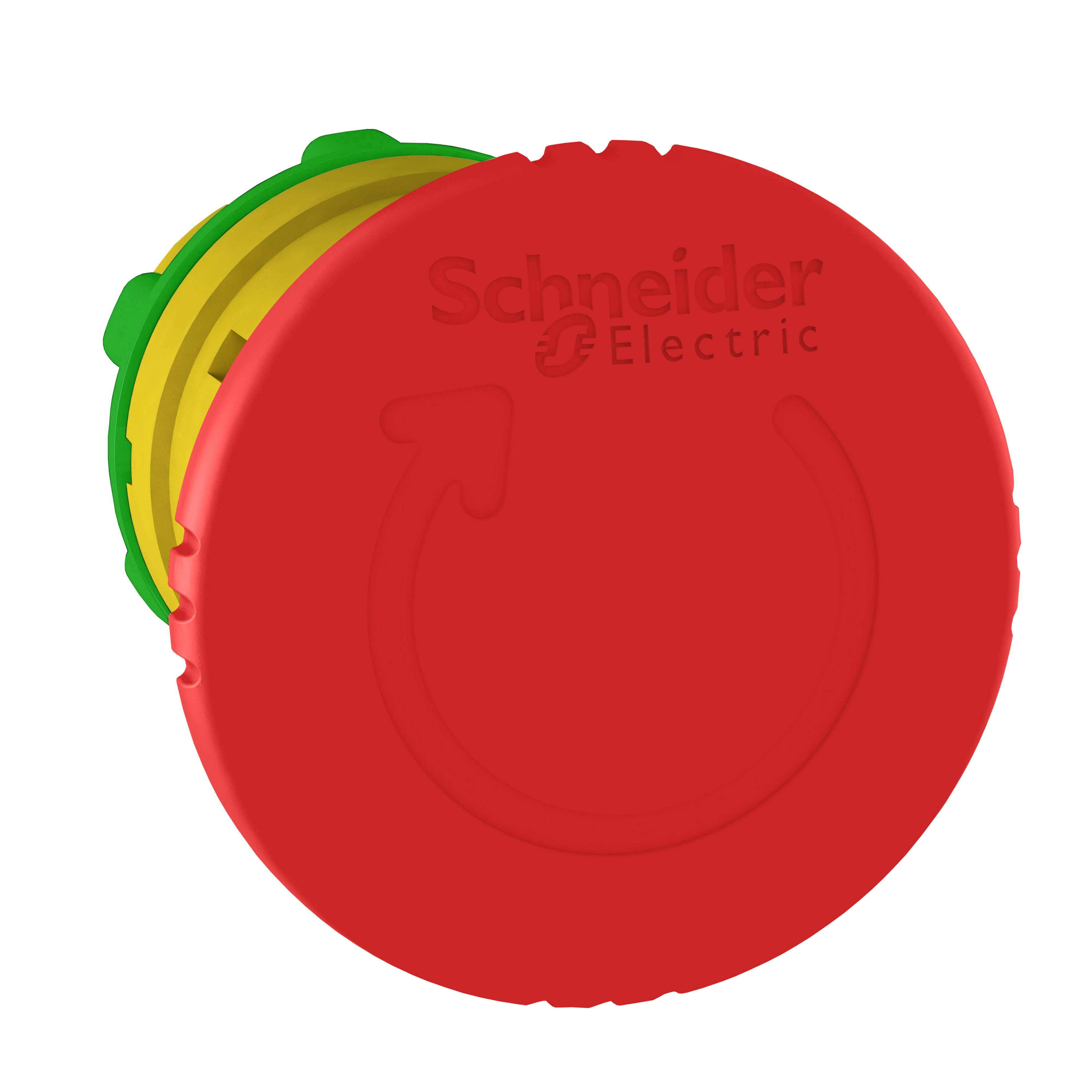

ZB5AS844 - Emergency stop head, switching off, plastic, red mushroom Ø40, Ø22, trigger, an

ZB5AS844 - Emergency stop head, switching off, plastic, red mushroom Ø40, Ø22, trigger, and latching turn to release

Schneider Electric ZB5AS844 emergency stop button from Harmony XB5 range is a 40mm mushroom re button head operates with a turn to release mechanism. The ZB5AS844 emergency stop/shutdown button is easily combined with contact blocks and can be installed into standard 22mm diameter cut-outs which can be connected with a simple screw-clamp terminal. The emergency stop button has a plastic bezel which makes this the ideal solution for applications that require good resistance to chemical agents and/or double electrical insulation.

• Range of Product: Harmony XB5
• Product or Component Type: Head for emergency stop push-button
• Product Destination: Emergency Stop push-button
• Device Short name: ZB5
• Bezel Material: Dark Grey Plastic
• Head Type: Standard
• Mounting Diameter: 22mm
• Shape of signaling unit head: Round
• Type of Operator: Trigger action and mechanical latching
• Operator Profile: Red Mushroom Ø 40 mm, unmarked

Additional Information

The ZB5AS844 from Schneider Electric is impact resistance, dust-resistant, water-resistant, and vibration-resistant, due to its high protection category of IP66 | IP67 | IP69 | IP69K. The emergency stop button from the Harmony XB5 range has been designed to fit in a standard 22mm cutout, which ensures compatibility when installed in pre-existing machinery. ZB5AS844 features a wide range of temperatures from -40°C to 70°C allowing versatility in the usage of the product.
