COMPLETE PLASTIC DOUBLE HEADED PUSHBUTTO

COMPLETE PLASTIC DOUBLE HEADED PUSHBUTTO

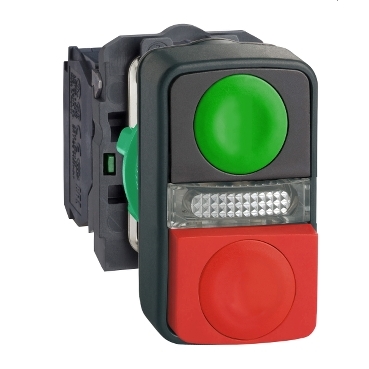

XB5AW73731B5https://www.cca.co.uk/image.php?filename=xb5aw73731b5.jpg&stockcode=XB5AW73731B5&category=Schneider-pilot-devices&width=1000&height=1000green flush/red projecting illuminated double-headed pushbutton Ø22 1NO+1NC 24V.Label:Harmony XB5-range of product:Harmony XB5-product or component type:complete illuminated double-headed push-button-shape of signaling unit head:rectangular-type of operator:{"1":"2018-04-12 15:49:30"}-operator profile:1 flush - 1 projecting push-buttons - 1 central pilot light-operators description:green ''I'' - red ''O''-device short name:XB5-contacts type and composition:1 NO + 1 NC-contact operation:slow-break-bezel material:plastic-connections - terminals:{"1":"2018-04-12 15:49:29","2":"2018-04-12 15:49:29","3":"2018-04-12 15:49:29","4":"2018-04-12 15:49:29"}-fixing collar material:plastic-light source:protected LED-bulb base:integral LED-[Us] rated supply voltage:{"1":"2018-04-12 15:49:30"}-head type:standard-mounting diameter:22 mm-Range Presentation:Spring return push buttons, illuminated push buttons, mushroom head emergency stop buttons with snap-action locking, selector switches, etc. Also, integrated LEDs with incandescent and neon lights.
- Conformity with IEC, UL, CSA standards - CE marking - IP 65, NEMA 4 dust and damp proofing - "Protected LED" illuminated lens units - Low-load electrical contact - Screw clamp connection, pins for printed circuit - Insulation displacement connector - Complete products - Products for customer assembly using separate parts and common accessories :-Range Benefits:Progress with confidenceDesigned for industry, this range combines simplicity of setup and flexibility. It is ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.-Range Application Presentation:
- Industry: machine manufacturers, chemical industry, paper mill, marine applications - Service sector and infrastructure: energy distribution panel builders, food and beverage, car washes
GBP
Stock Code: XB5AW73731B5
Call for availability on 0345 030 60 80
47.62£39.68 (exc VAT) per 1
£47.62 (inc VAT)
Quantity: - +

Product Description

green flush/red projecting illuminated double-headed pushbutton Ø22 1NO+1NC 24V.Label:Harmony XB5-range of product:Harmony XB5-product or component type:complete illuminated double-headed push-button-shape of signaling unit head:rectangular-type of operator:{"1":"2018-04-12 15:49:30"}-operator profile:1 flush - 1 projecting push-buttons - 1 central pilot light-operators description:green ''I'' - red ''O''-device short name:XB5-contacts type and composition:1 NO + 1 NC-contact operation:slow-break-bezel material:plastic-connections - terminals:{"1":"2018-04-12 15:49:29","2":"2018-04-12 15:49:29","3":"2018-04-12 15:49:29","4":"2018-04-12 15:49:29"}-fixing collar material:plastic-light source:protected LED-bulb base:integral LED-[Us] rated supply voltage:{"1":"2018-04-12 15:49:30"}-head type:standard-mounting diameter:22 mm-Range Presentation:Spring return push buttons, illuminated push buttons, mushroom head emergency stop buttons with snap-action locking, selector switches, etc. Also, integrated LEDs with incandescent and neon lights.
- Conformity with IEC, UL, CSA standards - CE marking - IP 65, NEMA 4 dust and damp proofing - "Protected LED" illuminated lens units - Low-load electrical contact - Screw clamp connection, pins for printed circuit - Insulation displacement connector - Complete products - Products for customer assembly using separate parts and common accessories :-Range Benefits:Progress with confidenceDesigned for industry, this range combines simplicity of setup and flexibility. It is ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.-Range Application Presentation:
- Industry: machine manufacturers, chemical industry, paper mill, marine applications - Service sector and infrastructure: energy distribution panel builders, food and beverage, car washes

Weight0.062
Width30 mm
Height50 mm
Depth59 mm
