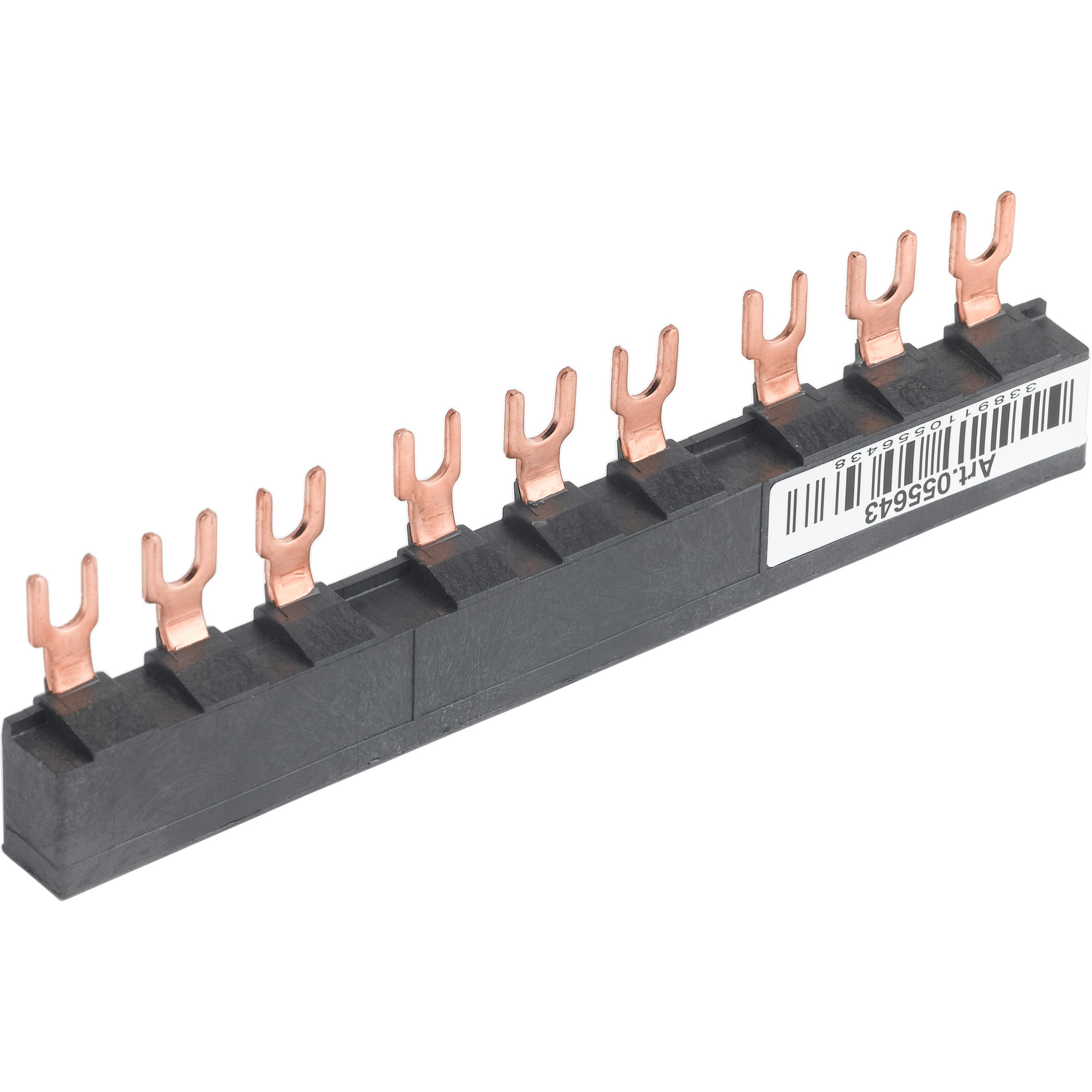

3 TAP OFFS BUSBAR GV2 63A 45MM PITCH

3 TAP OFFS BUSBAR GV2 63A 45MM PITCH

GV2G345https://download.schneider-electric.com/files?p_Doc_Ref=PIO00001722&p_File_Type=rendition_4000_pngLinergy FT - Comb busbar - 63 A - 3 tap-offs - 45 mm pitch.Label:TeSys D-range of product:TeSys U,TeSys K,TeSys fuse-disconnector,TeSys GV2,TeSys D-number of tap-offs:3-[Ith] conventional free air thermal current:63 A-connection pitch:45 mm-range:Linergy-product name:FT-device short name:GV2G-product or component type:comb busbar-accessory / separate part category:connection accessory-poles description:3P-Range Presentation:Contactor
- AC, DC, low-consumption DC control circuit - All types of starter: reversing or non-reversing, star/delta, by auto-transformer, etc - Connectors: spring terminal, EverLink terminal block, screw clamp, ring-type connection, Faston connector - Easy and simple direct mounting beetween contactor and circuit breaker, according to EverLink terminal block (from 40 to 65 A).Control RelayRelays with 5 poles as standard with 10A thermally rated contacts suitable for AC or DC control voltages. In addition a DC control circuit version with low consumption and built in suppression is available.
- 10A thermal contacts with operation down to 17V 5mA - Five pole with AC or DC operation - Variety of auxiliary contacts, timer modules and latching blocks - Four connection types: - Screw clamp - Ring - Quick-fit spring terminal - Fast-on connectors-Range Benefits:In addition to its new look, the TeSys D contactor offers you quick simple setup, while maintaining a compact size of 45 and 55 mm (40 to 65 A) as well as compliance with international standards.From 40 to 65 A versions are equiped with EverLink, this new patented terminal technology, assures a permanent tightening quality even in the event of conductor creep.-Range Application Presentation:Industry, infrastructure, building, etc:
- TeSys D contactors have been designed for perfect integration in control systems - They can be used to create motor starters for any type of application. - Switching contactor or relay coils - Powering control and signalling equipment
GBP
Stock Code: GV2G345
3 In Stock for despatch
19.49£16.24 (exc VAT) per 1
£19.49 (inc VAT)
Quantity: - +

Product Description

Linergy FT - Comb busbar - 63 A - 3 tap-offs - 45 mm pitch.Label:TeSys D-range of product:TeSys U,TeSys K,TeSys fuse-disconnector,TeSys GV2,TeSys D-number of tap-offs:3-[Ith] conventional free air thermal current:63 A-connection pitch:45 mm-range:Linergy-product name:FT-device short name:GV2G-product or component type:comb busbar-accessory / separate part category:connection accessory-poles description:3P-Range Presentation:Contactor
- AC, DC, low-consumption DC control circuit - All types of starter: reversing or non-reversing, star/delta, by auto-transformer, etc - Connectors: spring terminal, EverLink terminal block, screw clamp, ring-type connection, Faston connector - Easy and simple direct mounting beetween contactor and circuit breaker, according to EverLink terminal block (from 40 to 65 A).Control RelayRelays with 5 poles as standard with 10A thermally rated contacts suitable for AC or DC control voltages. In addition a DC control circuit version with low consumption and built in suppression is available.
- 10A thermal contacts with operation down to 17V 5mA - Five pole with AC or DC operation - Variety of auxiliary contacts, timer modules and latching blocks - Four connection types: - Screw clamp - Ring - Quick-fit spring terminal - Fast-on connectors-Range Benefits:In addition to its new look, the TeSys D contactor offers you quick simple setup, while maintaining a compact size of 45 and 55 mm (40 to 65 A) as well as compliance with international standards.From 40 to 65 A versions are equiped with EverLink, this new patented terminal technology, assures a permanent tightening quality even in the event of conductor creep.-Range Application Presentation:Industry, infrastructure, building, etc:
- TeSys D contactors have been designed for perfect integration in control systems - They can be used to create motor starters for any type of application. - Switching contactor or relay coils - Powering control and signalling equipment

Weight0.0568
Width3.5
Height1
Depth13.5
