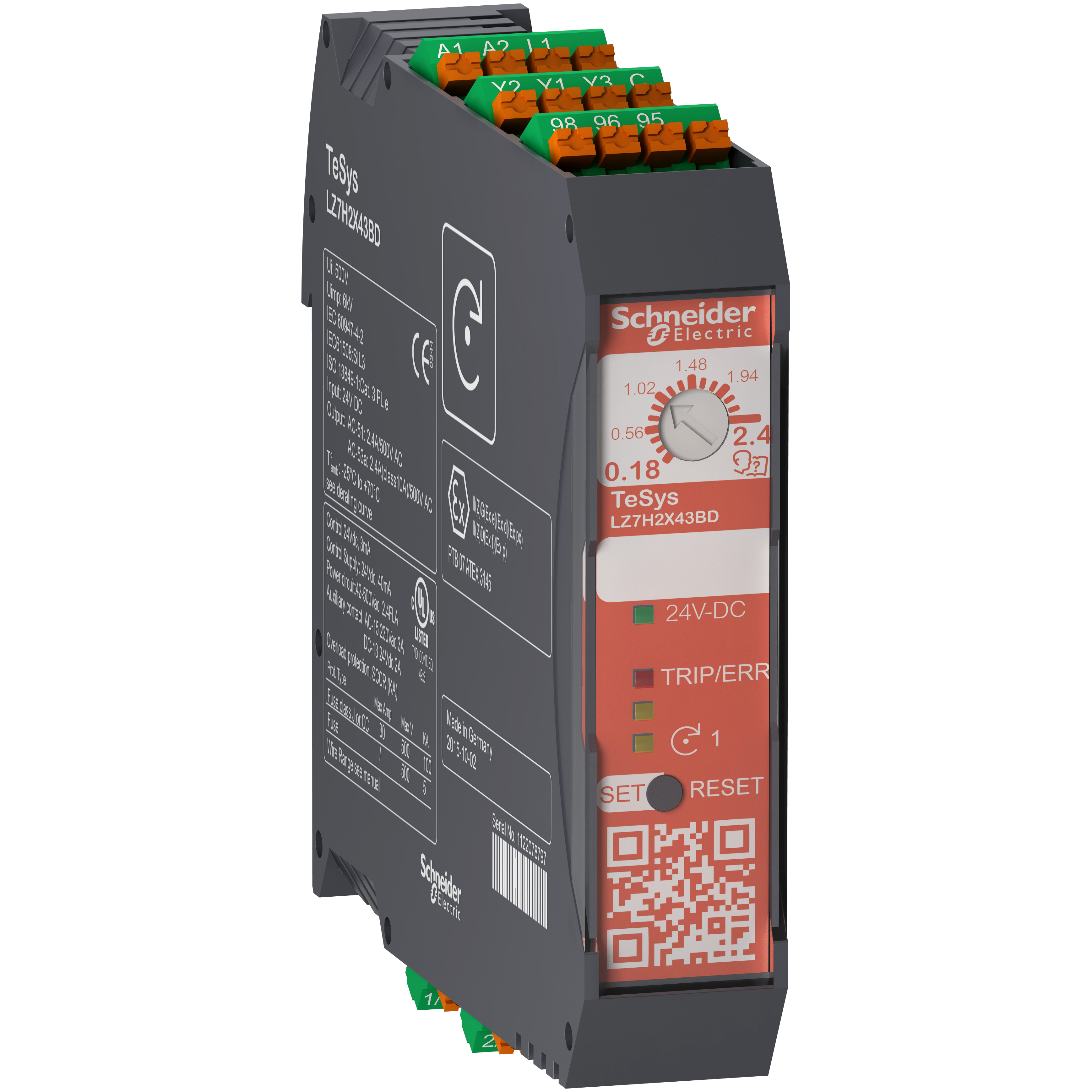

STARTER TESYSH SAFE-TORQUE-OFF 0,75KW-40

Starter TeSys H Safe-Torque-Off 0,75kW-400V control 24VDC Spring. Label: TeSys H - range: TeSys - motor power kW: 0.37 kW at 220 V AC 0.65, 0.37 kW at 230 V AC 0.65, 0.75 kW at 380 V AC 0.65, 0.75 kW at 400 V AC 0.65, 0.75 kW at 415 V AC 0.65, 0.75 kW at 440 V AC 0.65, 1.1 kW at 500 V AC 0.65 - motor power hp: 0.5 hp at 200 V AC, 0.5 hp at 230 V AC, 1 hp at 460 V AC - [Uc] control circuit voltage: 24 V DC - safety level: SIL 3 conforming to IEC 61508-1 stop function, PL = e conforming to ISO 13849-1 stop function, SIL 2 conforming to IEC 61508-1 motor protection - safety reliability data: MTTFd = 517 years stop function, SFF = 99 % stop function, SFF = 99 % motor protection, MTTFd = 447 years motor protection, PFHd = 2.40E-9 1/h stop function - thermal overload class: class 10A conforming to IEC 60947-4-2 - product name: TeSys H - device short name: LZ7H - product or component type: ultra-compact starter - motor starter type: direct on line - poles description: 3P - [Ue] rated operational voltage: 500 V AC - [Ie] rated operational current: 2.4 A at 500 V AC-51, 2.4 A at 500 V AC-53A, 2.4 A at 500 V AC-51 mounting side by side, 2.4 A at 500 V AC-53A mounting side by side - thermal protection adjustment range: 0.18-2.4 A - Range Presentation: TeSys H is a new, multifunctional starter for motors up to 3 KW/400 V. It helps to significantly reduce space in control cabinets by providing up to four functions within its 22.5 mm-wide body:
- Forward running - Reverse running - Protection against motor overload and phase unbalance - Safe shutdown up to SIL3/PLe (available in the Safe Torque Off variant) There are two variants of the TeSys H motor starter, one for standard motor starter and another Safe Torque Off motor starter as a part of safety chains. Both designed for high demanding applications. - Range Benefits:
- Up to 75% space reduction, which makes it suitable for all control cabinets where saving space is a priority; - 60% reduction of installation time, thanks to the efficiency of having embedded functions in one slim body; - SIL3/Ple Safe Torque Off variant, simplies design of your safety architecture
- A long electrical life, can perform 30 million AC53a electrical cycles which make it reliable for high demanding applications - Range Application Presentation: TeSys H can be used in a variety of industries, including food and beverage, logistics, and durable goods. It's suitable for machines like conveyors, logistics systems and feeding systems of production machines

Stock Code: LZ7H2X43BD

Call for availability on 0345 030 60 80
