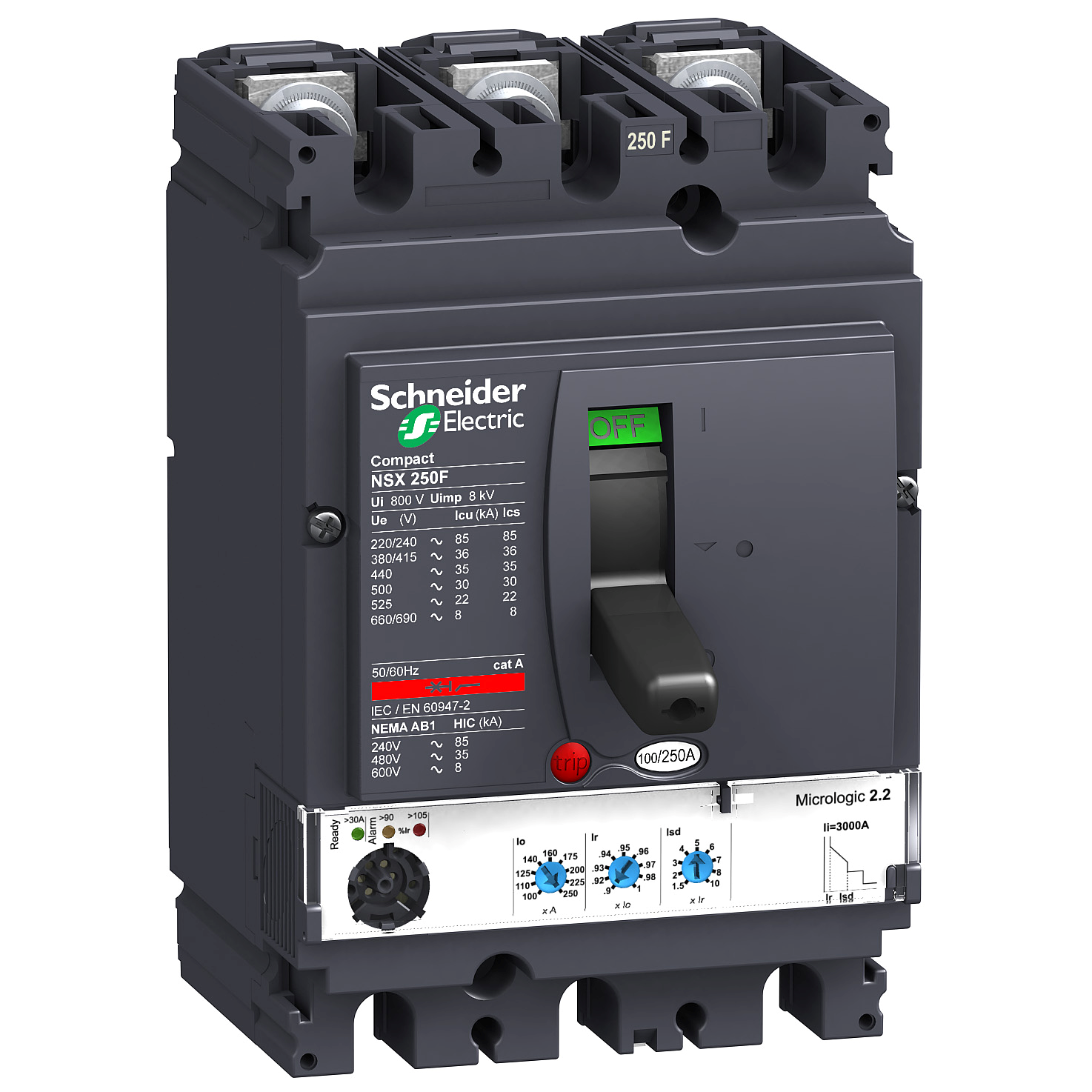

Schneider Electric 3P3T MICROLOGIC 2.2 250A NSX250F

circuit breaker Compact NSX250F - Micrologic 2.2 - 250 A - 3 poles 3d. Label: Compact NSX 630A - range: Compact - network type: AC - network frequency: 50/60 Hz - [In] rated current: 250 A at 40 °C - [Ui] rated insulation voltage: N/A - [Uimp] rated impulse withstand voltage: N/A - range of product: NSX100...250 - [Ue] rated operational voltage: N/A - breaking capacity code: F - breaking capacity: N/A, N/A, N/A, N/A, N/A, N/A, N/A, N/A, N/A - [Ics] rated service breaking capacity: 35 kA conforming to IEC 60947-2 440 V AC 50/60 Hz, 36 kA conforming to IEC 60947-2 380/415 V AC 50/60 Hz, 85 kA conforming to IEC 60947-2 220/240 V AC 50/60 Hz, 22 kA conforming to IEC 60947-2 525 V AC 50/60 Hz, 30 kA conforming to IEC 60947-2 500 V AC 50/60 Hz, 8 kA conforming to IEC 60947-2 660/690 V AC 50/60 Hz - suitability for isolation: yes conforming to EN 60947-2, yes conforming to IEC 60947-2 - utilisation category: category A - product name: Compact NSX - trip unit name: Micrologic 2.2 - product or component type: circuit breaker - trip unit technology: electronic - trip unit protection functions: LSoI - trip unit rating: 250-250 A at 40 °C - protection type: short time short-circuit protection,instantaneous short-circuit protection,overload protection (long time) - device short name: Compact NSX250F - device application: distribution - poles description: 3P - protected poles description: 3t - pollution degree: 3 conforming to IEC 60664-1 - Range Presentation: The Compact NSX combines intelligent metering and monitoring with impeccable protective functions. Features include: - Nominal current: 16 to 630 A - Five breaking performances from 36 to 150 kA at 415 V - Voltage rating: up to 690 V - Two physical sizes from 16 to 630 A - 3 and 4 pole versions available - Isolation with positive break indication - Large range of electronic and thermal-magnetic protections - Earth leakage protection by associated Vigi Module - Measure of main electrical values: I, U, P, E, THD, f, CosF - Wide range of common auxiliaries and accessories interchangeable on site - Plug and play wiring system and communicating accessories - Compliance with international standards: IEC 60947-1 and 2, Nema, IEC 68230 for type 2 tropicalisation, CCC - Compliance with specifications of marine classification companies: Bureau Veritas, Lloyd's Register of Shipping, Det Norske Veritas and RINA. - Range Benefits: Always first - Integrated power monitoring unit: Energy efficient - New breaking capacities: Performance - Interchangeable: Increased safety - Simple installation procedures: Easy to install - Range Application Presentation: - Commercial buildings - Hospitals - Steel industry - Marine

Stock Code: LV431770

Call for availability on 0345 030 60 80

This item is Obsolete
