ZBE204 - Double contact blocks for head Ø22 2NC screw clamp terminal

Stock Code: ZBE204

Call for availability on 0345 030 60 80

Product Description

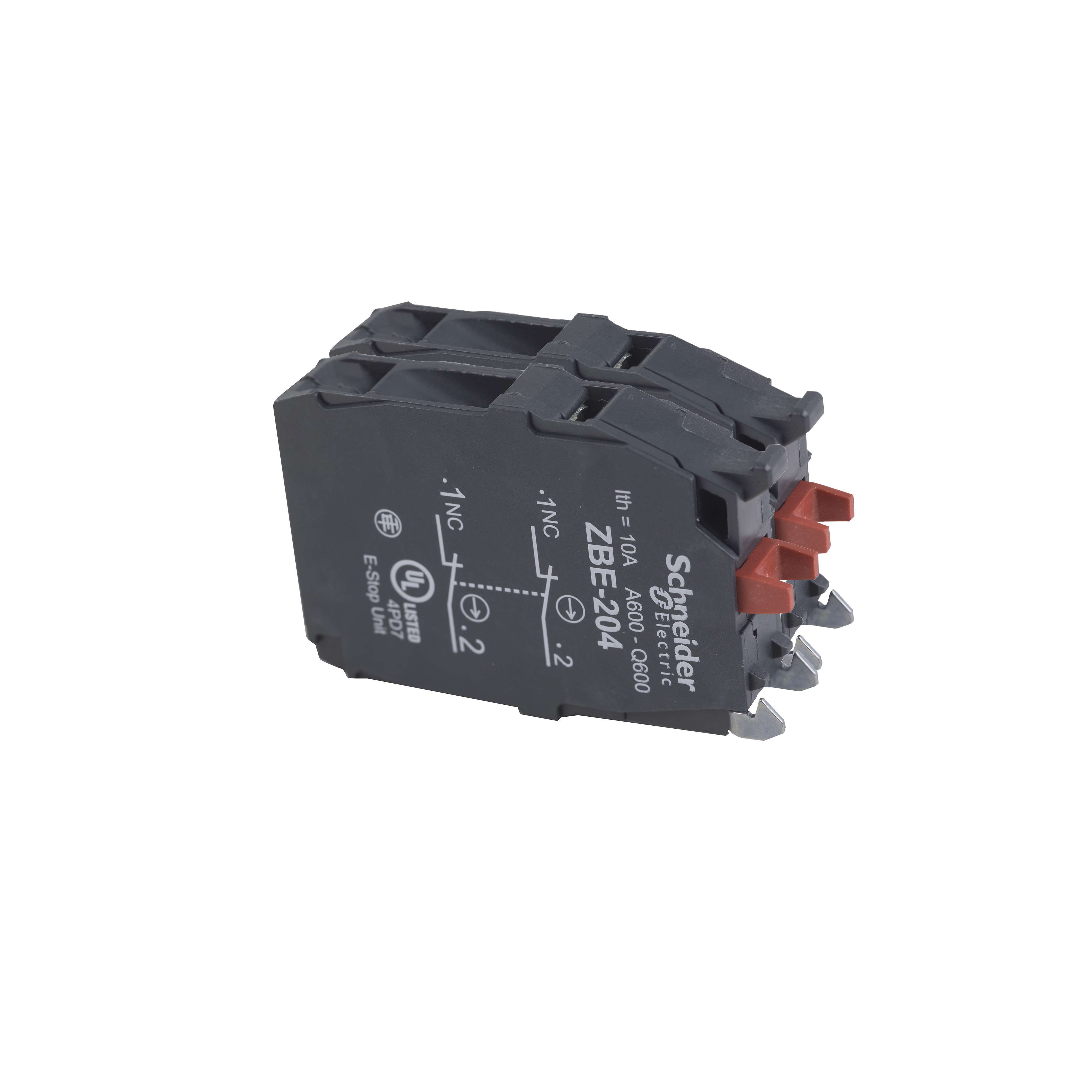

ZBE204 - Double contact blocks for head Ø22 2NC screw clamp terminal

The Schneider Electric ZBE204 is a double contact block (Normally Closed) that uses a screw-clamp terminal. This application is compatible with the Harmony XB4 and XB5 control and signaling units.

The Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes. The XB4 Harmony range has a flush mounting solution, that has a built-in pushbutton and flushes mounting kit accessories.

range of product: Harmony XB5 | Harmony XB4
product or component type: Contact block
device short name: ZBE
IP degree of protection: IP20 conforming to IEC 60529
contact operation: Slow break
contact block type: Double
contacts type and composition: 2 NC
Short Circuit protection: 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

Additional Information

The Harmony ZB can be easily installed and replaced on the XB4 and XB5 complete push-button units and selector switches. The ZB protects operators from unexpected contact with live circuits due to its IP20 protection Index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in the usage of the product.
