GV2 MOTOR CB MAGNETIC 1.6A TOGGLE SWITCH

GV2 MOTOR CB MAGNETIC 1.6A TOGGLE SWITCH

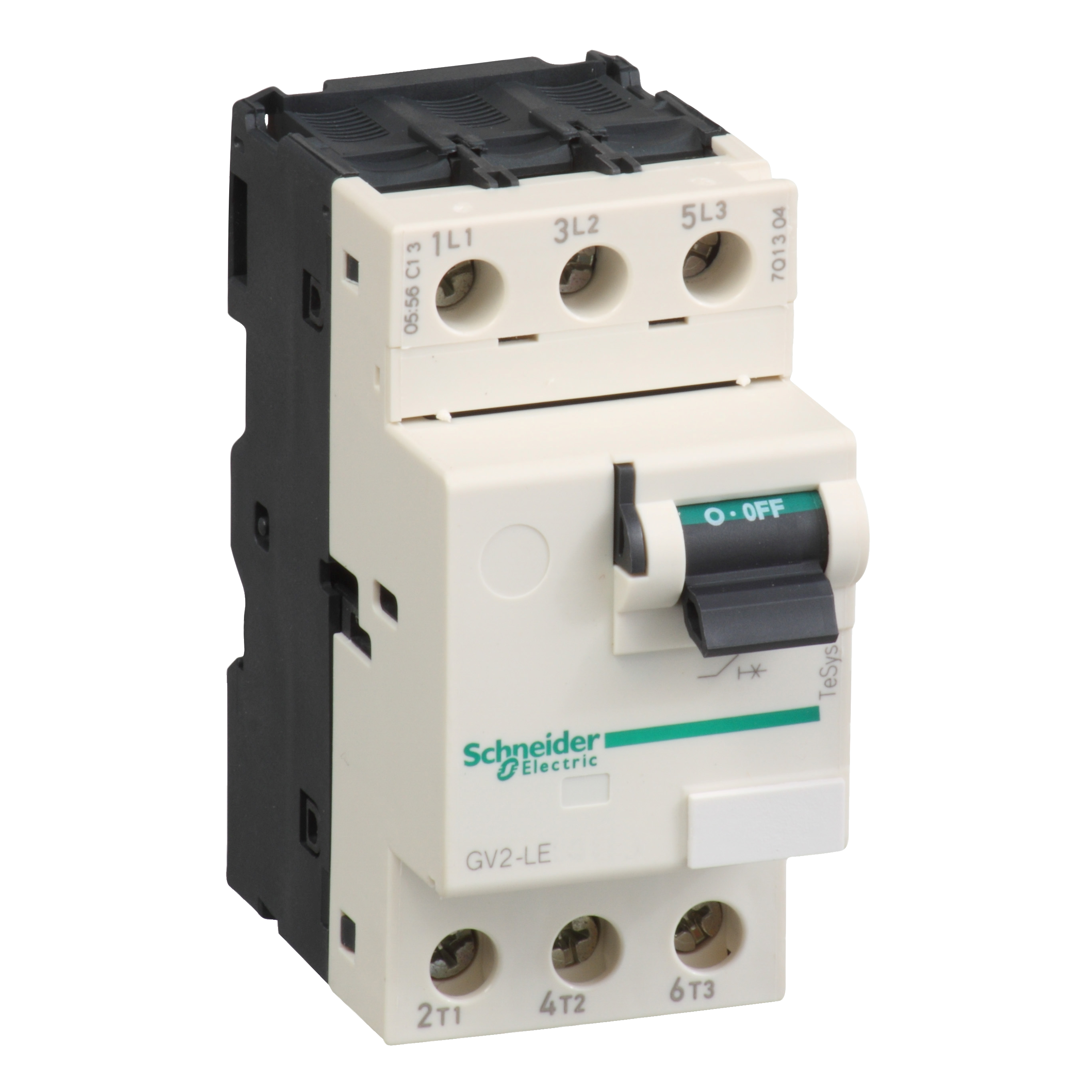

GV2LE06https://download.schneider-electric.com/files?p_Doc_Ref=PB111879&p_File_Type=rendition_4000_pngTeSys GV2 - Circuit breaker - magnetic - 1.6 A - screw clamp terminals.Label:TeSys GV2-range of product:TeSys GV2-range:TeSys-trip unit technology:magnetic-magnetic tripping current:22.5-22.5 A-product name:TeSys GV2-device short name:GV2LE-product or component type:circuit breaker-device application:motor-poles description:3P-network type:AC-Range Presentation:
- Manual and local control, when the motor circuit-breaker is used on its own, and automatic and remote control when combined with a contactor
- Motor protection provided by thermal-magnetic devices built into the circuit-breaker
- No live parts are accessible to direct finger contact
- The addition of an undervoltage trip enables the motor circuit-breaker to be tripped if voltage is lost
- The addition of a shunt trip enables remote control of tripping
- The control for the open or enclosed motor circuit-breaker can be locked in the "N/C" position using 3 padlocks
- Connectors: spring terminal, screw clamp-Range Benefits:
Complete protection concentrated in a single product
Compact and simple to select, TeSys GV2 motor circuit-breakers are only 45 mm wide and are categorized according to their level of performance and functions: type of control, breaking capacity, motor protection and accessories.-Range Application Presentation:
- Industry, infrastructure, building, etc:
- Motor control and protection, in accordance with standards IEC 947-2 and IEC 947-4-1
- Easily inserted in any configuration by screw or clip-fixing onto mounting rails
GBP
Stock Code: GV2LE06
Call for availability on 0345 030 60 80
85.38£71.15 (exc VAT) per 1
£85.38 (inc VAT)
Quantity: - +

Product Description

TeSys GV2 - Circuit breaker - magnetic - 1.6 A - screw clamp terminals.Label:TeSys GV2-range of product:TeSys GV2-range:TeSys-trip unit technology:magnetic-magnetic tripping current:22.5-22.5 A-product name:TeSys GV2-device short name:GV2LE-product or component type:circuit breaker-device application:motor-poles description:3P-network type:AC-Range Presentation:
- Manual and local control, when the motor circuit-breaker is used on its own, and automatic and remote control when combined with a contactor
- Motor protection provided by thermal-magnetic devices built into the circuit-breaker
- No live parts are accessible to direct finger contact
- The addition of an undervoltage trip enables the motor circuit-breaker to be tripped if voltage is lost
- The addition of a shunt trip enables remote control of tripping
- The control for the open or enclosed motor circuit-breaker can be locked in the "N/C" position using 3 padlocks
- Connectors: spring terminal, screw clamp-Range Benefits:
Complete protection concentrated in a single product
Compact and simple to select, TeSys GV2 motor circuit-breakers are only 45 mm wide and are categorized according to their level of performance and functions: type of control, breaking capacity, motor protection and accessories.-Range Application Presentation:
- Industry, infrastructure, building, etc:
- Motor control and protection, in accordance with standards IEC 947-2 and IEC 947-4-1
- Easily inserted in any configuration by screw or clip-fixing onto mounting rails

Weight0.282
Width45 mm
Height89 mm
Depth78.5 mm
