REVERSING CONTACTOR

REVERSING CONTACTOR

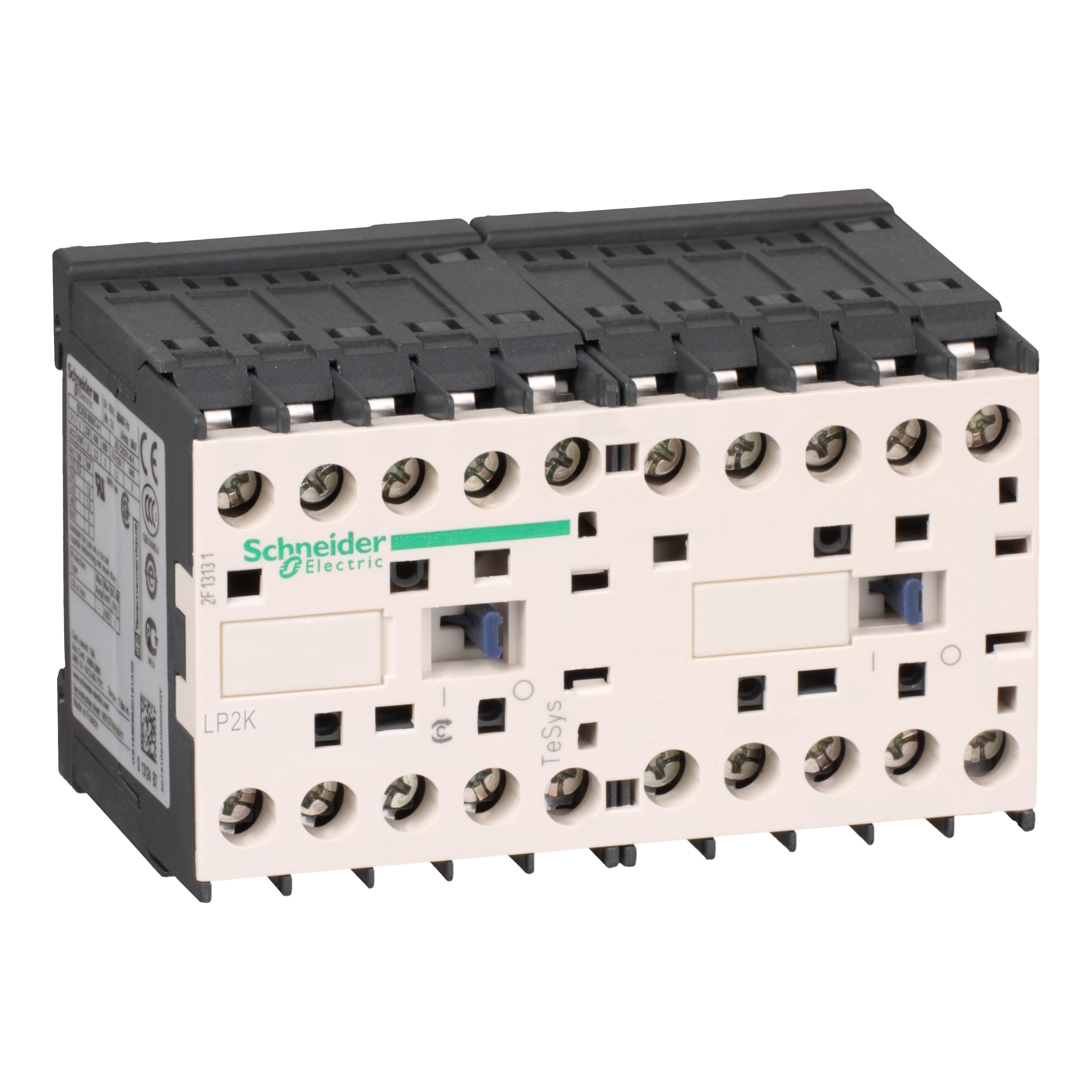

LP2K09105BDhttps://download.schneider-electric.com/files?p_Doc_Ref=PB112208&p_File_Type=rendition_4000_pngTeSys K reversing contactor - 3P - AC-3 = 440 V 9 A - 1 NO - 24 V DC coil.Label:TeSys K-range of product:TeSys K-poles description:3P-pole contact composition:3 NO-auxiliary contact composition:1 NO-range:TeSys-overvoltage category:III-product name:TeSys K-interlocking type:mechanical-mounting support:rail,plate-standards:VDE 0660,BS 5424,IEC 60947,NF C 63-110-product certifications:UL,CSA-mechanical durability:5 Mcycles-product or component type:reversing contactor-device short name:LP2K-device application:control-contactor application:resistive load,motor control-utilisation category:AC-4,AC-1,AC-3-device presentation:preassembled with reversing power busbar-Range Presentation:Contactor
- Common options available for all ratings: 6, 9, 12 A - Control circuits available: AC, DC, low-consumption DC, silent - Applications: 2.2 kW, 4.5 kW, 5.5 kW in AC3 and AC4 - Connectors: screw clamp, faston connectors, spring terminals, pins for printed circuit boardsControl Relay4 pole relays with 10A thermally rated contacts suitable for AC or DC control voltages. In addition low consumption coil versions with built in suppression and suitable to be used with programmable controllers are also available.Contacts with 10A thermal rating, suitable for use down to 17V 5mA
- Four pole for operation with AC or DC control circuits - Variety of auxiliary contacts, and timer modules - Clamp terminals as standard with spring terminal, printed circuit board connection and fast-on connector types available-Range Benefits:Tesys k forms a complete range of reversing or non-reversing contactors, offering the best performance/compactness ratio and seamless integration in all your applications.-Range Application Presentation:Industry, infrastructure, building, etc :
- Simple control systems - Zones sensitive to noise, disturbed mains supplies: silent contactor - Use compatible with programmable controller outputs: low-consumption contactor - Switching contactor or relay coils - Powering control and signalling equipment
GBP
Stock Code: LP2K09105BD
Call for availability on 0345 030 60 80
122.28£101.90 (exc VAT) per 1
£122.28 (inc VAT)
Quantity: - +

Product Description

TeSys K reversing contactor - 3P - AC-3 = 440 V 9 A - 1 NO - 24 V DC coil.Label:TeSys K-range of product:TeSys K-poles description:3P-pole contact composition:3 NO-auxiliary contact composition:1 NO-range:TeSys-overvoltage category:III-product name:TeSys K-interlocking type:mechanical-mounting support:rail,plate-standards:VDE 0660,BS 5424,IEC 60947,NF C 63-110-product certifications:UL,CSA-mechanical durability:5 Mcycles-product or component type:reversing contactor-device short name:LP2K-device application:control-contactor application:resistive load,motor control-utilisation category:AC-4,AC-1,AC-3-device presentation:preassembled with reversing power busbar-Range Presentation:Contactor
- Common options available for all ratings: 6, 9, 12 A - Control circuits available: AC, DC, low-consumption DC, silent - Applications: 2.2 kW, 4.5 kW, 5.5 kW in AC3 and AC4 - Connectors: screw clamp, faston connectors, spring terminals, pins for printed circuit boardsControl Relay4 pole relays with 10A thermally rated contacts suitable for AC or DC control voltages. In addition low consumption coil versions with built in suppression and suitable to be used with programmable controllers are also available.Contacts with 10A thermal rating, suitable for use down to 17V 5mA
- Four pole for operation with AC or DC control circuits - Variety of auxiliary contacts, and timer modules - Clamp terminals as standard with spring terminal, printed circuit board connection and fast-on connector types available-Range Benefits:Tesys k forms a complete range of reversing or non-reversing contactors, offering the best performance/compactness ratio and seamless integration in all your applications.-Range Application Presentation:Industry, infrastructure, building, etc :
- Simple control systems - Zones sensitive to noise, disturbed mains supplies: silent contactor - Use compatible with programmable controller outputs: low-consumption contactor - Switching contactor or relay coils - Powering control and signalling equipment

Width90 mm
Height58 mm
Depth57 mm
