BIOMETRIC SWITCH,1 MOMENTARY,CABLE 2M, G

BIOMETRIC SWITCH,1 MOMENTARY,CABLE 2M, G

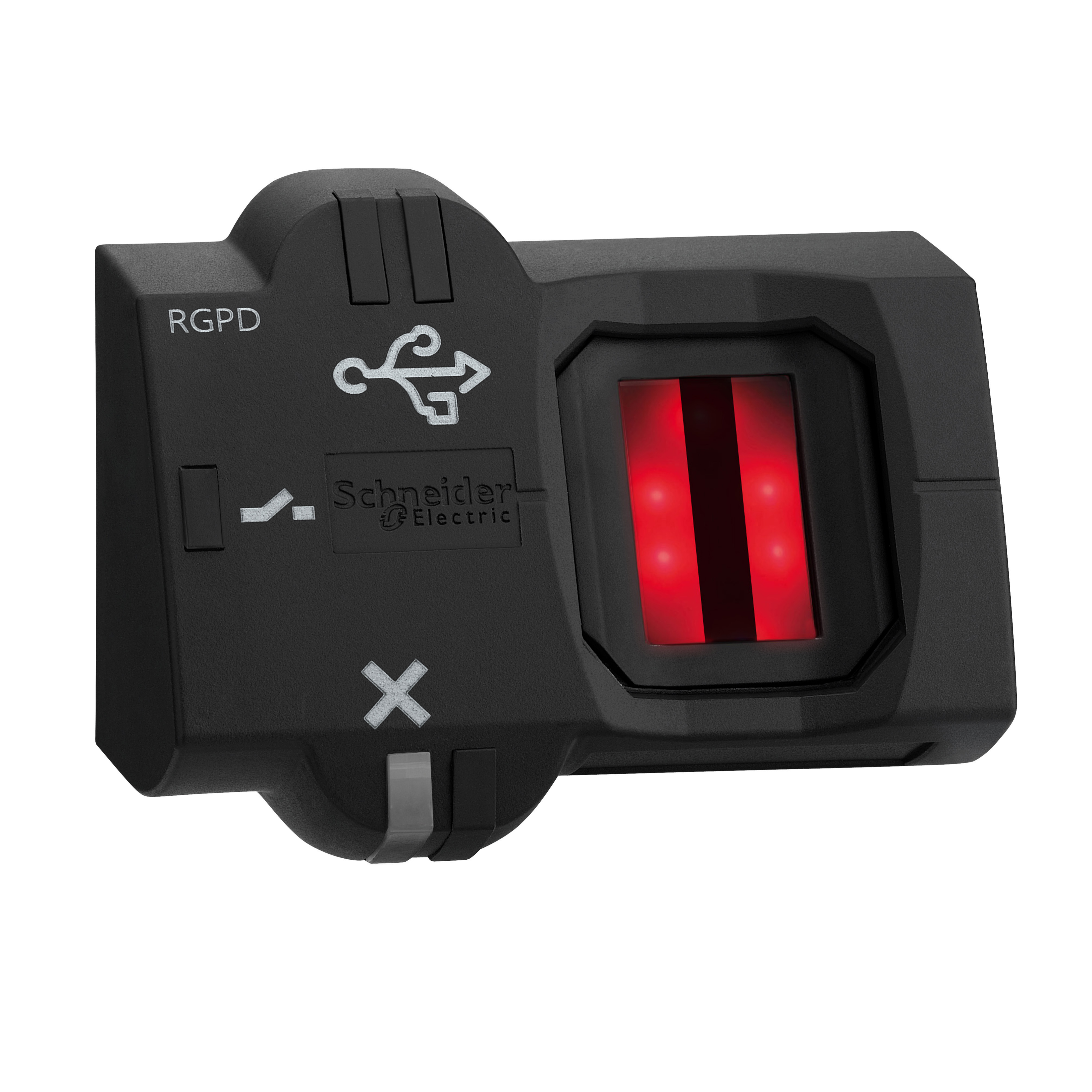

XB5S7B2L2https://download.schneider-electric.com/files?p_Doc_Ref=XB5S_OP19113&p_File_Type=rendition_4000_pngMonostable Biometric switch RGPD- connection by 2m cable. Label: Harmony XB5S - output type: PNP - sale per indivisible quantity: 1 - product or component type: biometric switch RGPD - IP degree of protection: IP65 front face conforming to EN/IEC 60529 ,IP20 rear face conforming to EN/IEC 60529 - type of operator: momentary - operator profile: fingerprint reader - connections - terminals: 1 pre-wired cable, clamping capacity: 3 x 0.34 mm² - memory usage: 200 users with up to 2 fingerprints per user - product specific application: industrial machines,materials handling - device short name: XB5S - bezel material: plastic - mounting diameter: 22 mm - Range Presentation: FEATURES
- Conformity with IEC, UL, and CSA standards, as well as CE marking
- IP65 and NEMA 12 protection ratings
- 24 VDC, M12, or cable connection
- USB version for direct connection to a Magelis or Proface HMI
- Up to 1000 fingerprint records - Range Benefits:
- Secure access control using biometric technology
- Less maintenance and machine downtime thanks to fast and simple authorization
- Elimination of costs associated with the administration or loss of keys, cards, and badges
- Easy installation and setup: mounting in standard Ø 22 mm cutout, all operations are performed directly on the front face of the product
- Easy setup of multiple products using free, intuitive software - Range Application Presentation:
- Secure or dangerous processes (robots access, fork lift use, etc.)
- Secure parameter setting (food and beverage, pharmaceutical recipes)
- Maintenance or setup processes
- Resetting following activation of an emergency stop
GBP
Stock Code: XB5S7B2L2
Call for availability on 0345 030 60 80
848.86£707.38 (exc VAT) per 1
£848.86 (inc VAT)
Quantity: - +

Product Description

Monostable Biometric switch RGPD- connection by 2m cable. Label: Harmony XB5S - output type: PNP - sale per indivisible quantity: 1 - product or component type: biometric switch RGPD - IP degree of protection: IP65 front face conforming to EN/IEC 60529 ,IP20 rear face conforming to EN/IEC 60529 - type of operator: momentary - operator profile: fingerprint reader - connections - terminals: 1 pre-wired cable, clamping capacity: 3 x 0.34 mm² - memory usage: 200 users with up to 2 fingerprints per user - product specific application: industrial machines,materials handling - device short name: XB5S - bezel material: plastic - mounting diameter: 22 mm - Range Presentation: FEATURES
- Conformity with IEC, UL, and CSA standards, as well as CE marking
- IP65 and NEMA 12 protection ratings
- 24 VDC, M12, or cable connection
- USB version for direct connection to a Magelis or Proface HMI
- Up to 1000 fingerprint records - Range Benefits:
- Secure access control using biometric technology
- Less maintenance and machine downtime thanks to fast and simple authorization
- Elimination of costs associated with the administration or loss of keys, cards, and badges
- Easy installation and setup: mounting in standard Ø 22 mm cutout, all operations are performed directly on the front face of the product
- Easy setup of multiple products using free, intuitive software - Range Application Presentation:
- Secure or dangerous processes (robots access, fork lift use, etc.)
- Secure parameter setting (food and beverage, pharmaceutical recipes)
- Maintenance or setup processes
- Resetting following activation of an emergency stop

No detailed specifications are available for this product.

Click on any of the following links to download the file.
