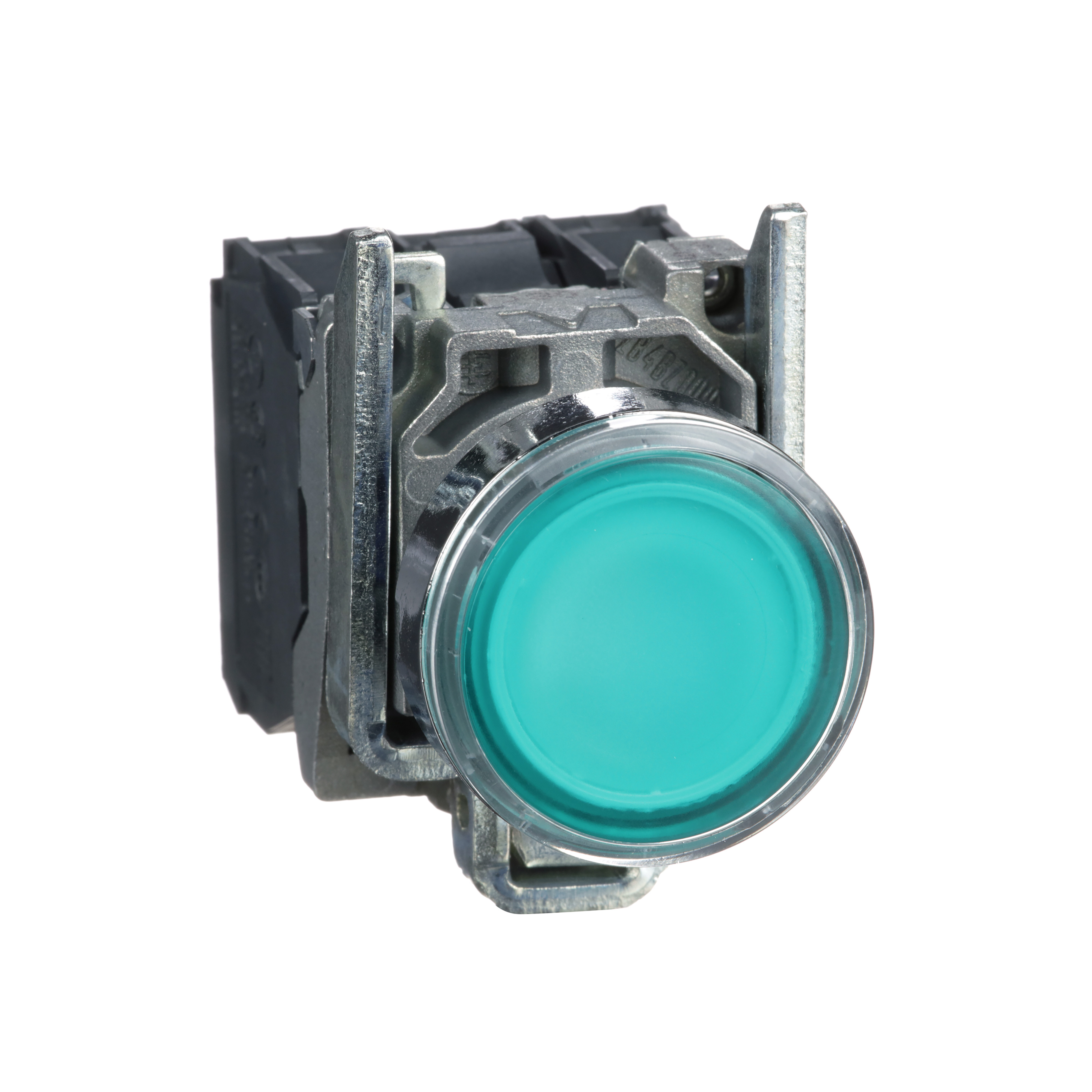

ILLUMINATED PUSHBUTTON

green flush complete illum pushbutton Ø22 spring return 1NO+1NC 24V.Label:Harmony XB4-range of product:Harmony XB4-product or component type:illuminated push-button-device short name:XB4-shape of signaling unit head:round-type of operator:{"1":"2018-04-12 15:04:21"}-operator profile:{"1":"2018-04-12 15:04:21"}-operator additional information:with plain lens-contacts type and composition:1 NO + 1 NC-contact operation:slow-break-bezel material:chromium plated metal-connections - terminals:{"1":"2018-04-12 15:04:22","2":"2018-04-12 15:04:22"}-fixing collar material:zamak-light source:protected LED-bulb base:integral LED-light block supply:{}-[Us] rated supply voltage:{"1":"2018-04-12 15:04:22"}-mounting diameter:22 mm-sale per indivisible quantity:1-head type:standard-Range Presentation:Spring return push buttons, illuminated push buttons, mushroom head emergency stop buttons with snap-action locking, selector switches, etc. Also, integrated LEDs with incandescent and neon lights.
- Conformity with IEC, UL, CSA standards - CE marking - IP 65, NEMA 4 dust and damp proofing - "Protected LED" illuminated lens units - Low-load electrical contact - Screw clamp connection, pins for printed circuit - Insulation displacement connector - Complete products - Products for customer assembly using separate parts and common accessories :-Range Benefits:Progress with confidenceDesigned for industry, this range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap-fit head and body, tightened with a single screw, ensures easy yet secure mounting.-Range Application Presentation:
- Industry: machine manufacturers (automotive, textiles, timber), control system panel builders - Service sector and infrastructure: energy distribution panel builders, public works, building, airports
