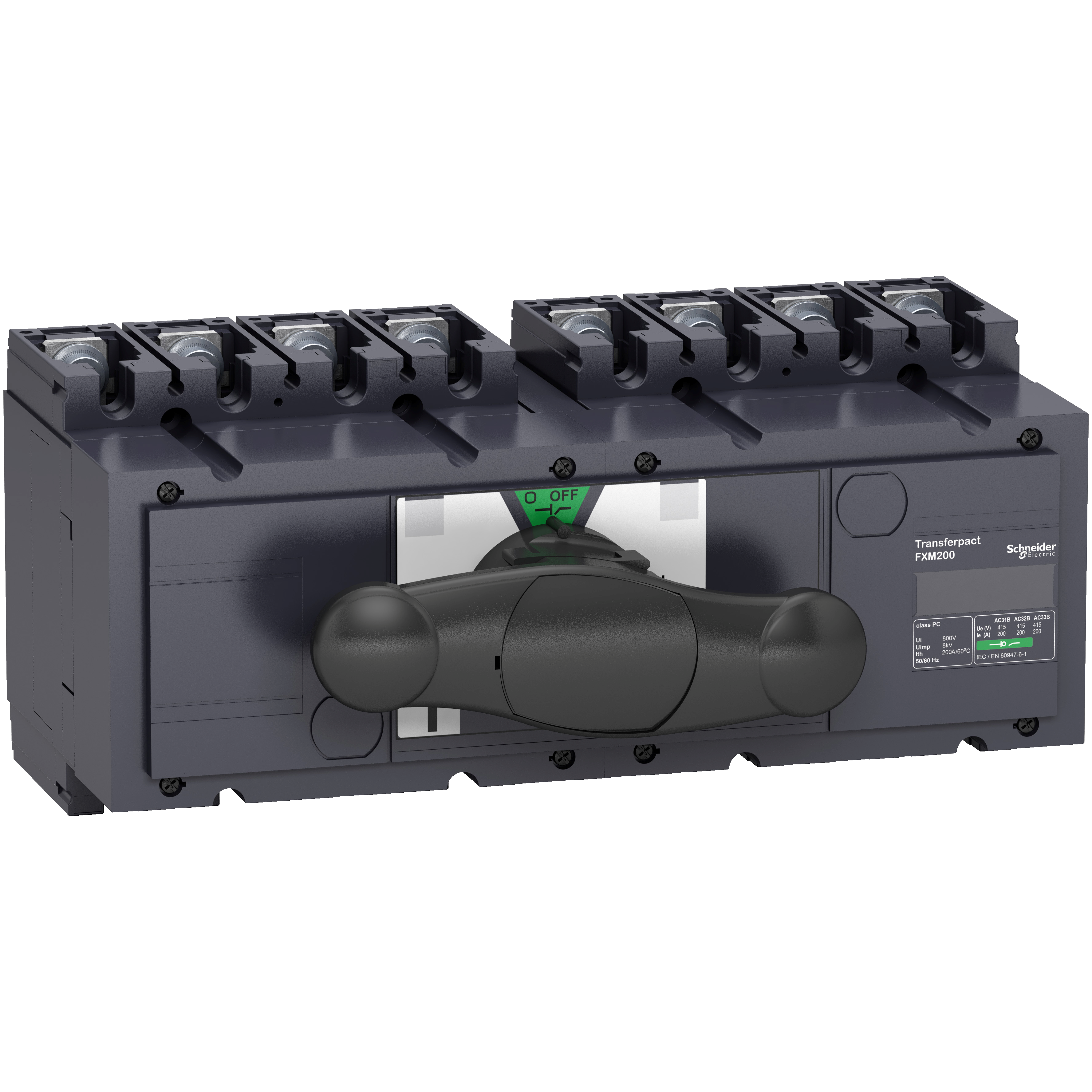

Schneider Electric MANUAL SOURCECHANGEOVER INS250 4P 200 A

Stock Code: 31143

Call for availability on 0345 030 60 80

This item is Obsolete

Product Description

manual source changeover switch INS250 - 4 poles - 200 A. Label: Interpact, Compact and Masterpact - range of product: INS250 - poles description: 4P - network type: AC,DC - network frequency: 50/60 Hz - mounting mode: fixed - upside connection: front - downside connection: front - range: Compact - device short name: INS250 - suitability for isolation: yes - contact position indicator: yes - product or component type: changeover switch - [Icm] rated short-circuit making capacity: 30 kA switch-disconnector alone 690 V AC at 50/60 Hz, 330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz - device application: change source of supply - range compatibility: - Range Presentation:
- Nominal current from 40 to 2500 A.
- Source changeover switch produced around 2 Interpact INS/INV.
- Manual changeover switches by interlocking of operating mechanisms via rotary handles or with captive keys
- Possible complete source changeover assembly for Interpact INS250-100 A to INS630A
- Wide range of auxiliaries and accessories common to the Interpact range. - Range Benefits: The Merlin Gerin source changeover switch, produced around two or three devices, guarantees, in a compact space, permanent supply safety of electrical installations:
- guarantee of continuity of supply of some loads for safety reasons or to maintain the production cycle
- effective energy management - Range Application Presentation: Switching of a main energy source to a replacement source, performed either manually or automatically, in LV electrical installations and in particular in the:
- Tertiary sector - operating theatres of hospitals
- safety devices of high-rise buildings

- Industry - continuous production lines
- refrigeration units

- Industry - continuous production lines
- refrigeration units

- Energy and Infrastructures - pumping stations
- large electrical installations (e.g. airports)
- special electricity tariffs
