Schneider Electric INS100 4P 100A R/Y

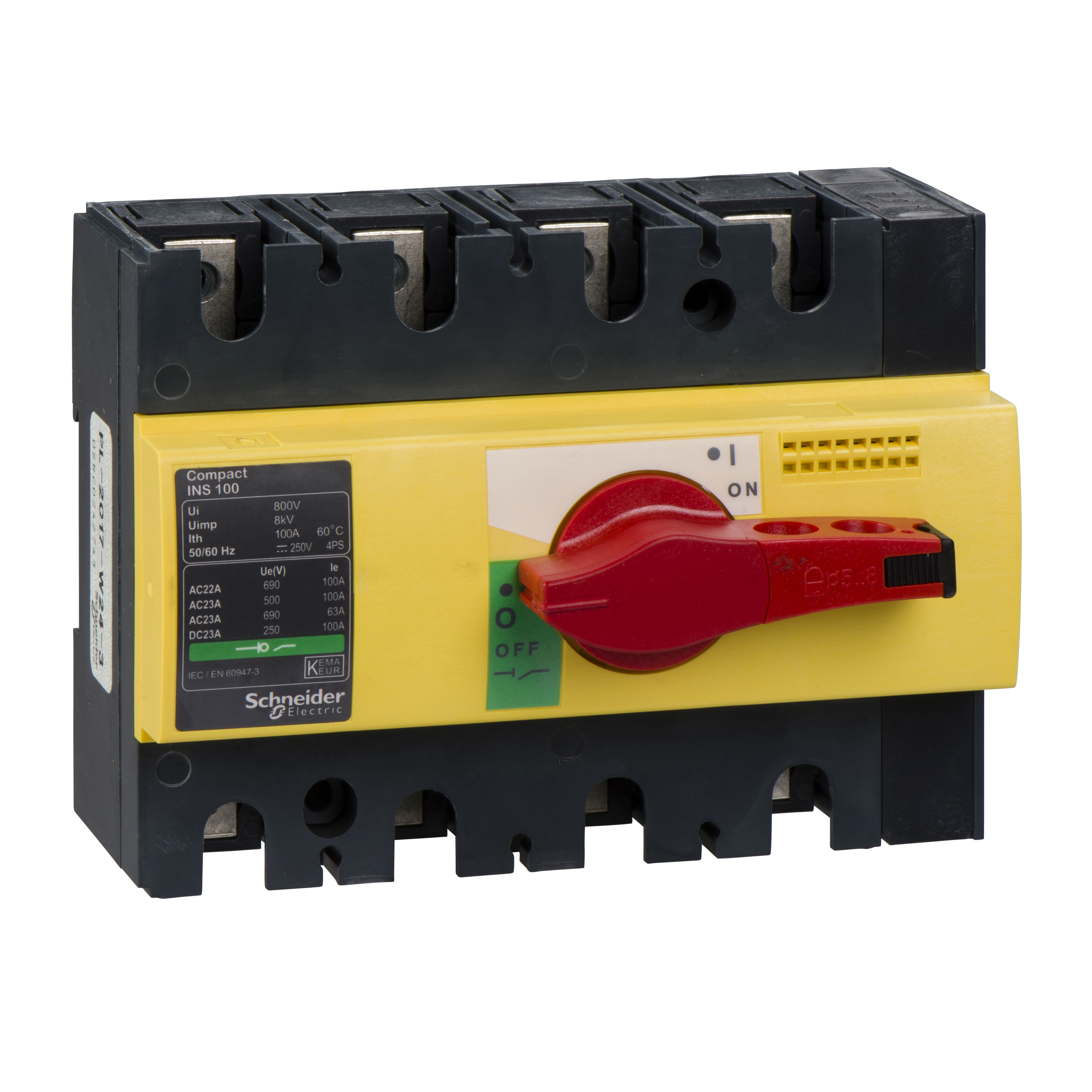

28925https://download.schneider-electric.com/files?p_Doc_Ref=ODA28925&p_File_Type=rendition_4000_pngswitch-disconnector Compact INS100 - 4 poles - 100 A. Label: Interpact INS/INV switches - range: Compact - [Ie] rated operational current: AC-22A AC 50/60 Hz 220/240 V, AC-23A AC 50/60 Hz 660/690 V, DC-22A DC 125 V 2 poles in series, DC-23A DC 125 V 2 poles in series, DC-22A DC 250 V 4 poles in series, DC-23A DC 250 V 4 poles in series, AC-22A AC 50/60 Hz 380/415 V, AC-22A AC 50/60 Hz 440/480 V, AC-22A AC 50/60 Hz 500 V, AC-22A AC 50/60 Hz 660/690 V, AC-23A AC 50/60 Hz 220/240 V, AC-23A AC 50/60 Hz 380/415 V, AC-23A AC 50/60 Hz 440/480 V, AC-23A AC 50/60 Hz 500 V - range of product: INS40...160 - [Ui] rated insulation voltage: N/A - [Uimp] rated impulse withstand voltage: N/A - [Ith] conventional free air thermal current: 100 A - [Icm] rated short-circuit making capacity: 154 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz, 20 kA switch-disconnector alone 690 V AC at 50/60 Hz - product name: Compact INS - [Ue] rated operational voltage: N/A, N/A - suitability for isolation: yes - contact position indicator: yes - visible break: no - product or component type: switch disconnector - device short name: Compact INS100 - pollution degree: 3 - switch-disconnector name: Compact INS100 - poles description: 4P - network type: DC,AC - network frequency: 50/60 Hz - Range Presentation: - Voltage rating: 690 V - Nominal current: 40 to 2500 A - Categories: AC23A/AC22A - No derating up to 60 °C - Voltage impulse withstand: 8 kV - Mounting on DIN rail (up to INS160) and on mounting plate - Positive break indication (INS range) or visible isolation (INV range) - 3 and 4-pole versions in the same volume - Class 2 device on the front panel - Front operating mechanism as standard and side operating mechanism as option (up to INS250) - One-piece source changeover switch - Remote indication thanks to auxiliary contacts - Accessories in common with the range of Compact NS circuit-breakers - Compliance with international standards IEC 60947-1 and -3, UL489 (up to 400 A), VDE 660 and 113, CNOMO. - Range Benefits: By adapting to a whole host of LV applications, the Interpact INS/INV switch-disconnectors offer all the safety that the user requires. Designed for maximum performance and safety, this comprehensive and homogeneous range operates with the connection accessories shared with the Compact NS range. - Range Application Presentation: The Interpact INS/INV switch-disconnectors perform control and disconnection of electrical distribution circuits in the tertiary and industrial sectors: - Source coupling - Local disconnection box - Final distribution box - Automation box - Emergency stop switch
GBP
Stock Code: 28925
Call for availability on 0345 030 60 80
218.76£182.30 (exc VAT) per 1
£218.76 (inc VAT)
Quantity: - +
switch-disconnector Compact INS100 - 4 poles - 100 A. Label: Interpact INS/INV switches - range: Compact - [Ie] rated operational current: AC-22A AC 50/60 Hz 220/240 V, AC-23A AC 50/60 Hz 660/690 V, DC-22A DC 125 V 2 poles in series, DC-23A DC 125 V 2 poles in series, DC-22A DC 250 V 4 poles in series, DC-23A DC 250 V 4 poles in series, AC-22A AC 50/60 Hz 380/415 V, AC-22A AC 50/60 Hz 440/480 V, AC-22A AC 50/60 Hz 500 V, AC-22A AC 50/60 Hz 660/690 V, AC-23A AC 50/60 Hz 220/240 V, AC-23A AC 50/60 Hz 380/415 V, AC-23A AC 50/60 Hz 440/480 V, AC-23A AC 50/60 Hz 500 V - range of product: INS40...160 - [Ui] rated insulation voltage: N/A - [Uimp] rated impulse withstand voltage: N/A - [Ith] conventional free air thermal current: 100 A - [Icm] rated short-circuit making capacity: 154 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz, 20 kA switch-disconnector alone 690 V AC at 50/60 Hz - product name: Compact INS - [Ue] rated operational voltage: N/A, N/A - suitability for isolation: yes - contact position indicator: yes - visible break: no - product or component type: switch disconnector - device short name: Compact INS100 - pollution degree: 3 - switch-disconnector name: Compact INS100 - poles description: 4P - network type: DC,AC - network frequency: 50/60 Hz - Range Presentation:
- Voltage rating: 690 V
- Nominal current: 40 to 2500 A
- Categories: AC23A/AC22A
- No derating up to 60 °C
- Voltage impulse withstand: 8 kV
- Mounting on DIN rail (up to INS160) and on mounting plate
- Positive break indication (INS range) or visible isolation (INV range)
- 3 and 4-pole versions in the same volume
- Class 2 device on the front panel
- Front operating mechanism as standard and side operating mechanism as option (up to INS250)
- One-piece source changeover switch
- Remote indication thanks to auxiliary contacts
- Accessories in common with the range of Compact NS circuit-breakers
- Compliance with international standards IEC 60947-1 and -3, UL489 (up to 400 A), VDE 660 and 113, CNOMO. - Range Benefits: By adapting to a whole host of LV applications, the Interpact INS/INV switch-disconnectors offer all the safety that the user requires. Designed for maximum performance and safety, this comprehensive and homogeneous range operates with the connection accessories shared with the Compact NS range. - Range Application Presentation: The Interpact INS/INV switch-disconnectors perform control and disconnection of electrical distribution circuits in the tertiary and industrial sectors:

- Source coupling
- Local disconnection box
- Final distribution box
- Automation box
- Emergency stop switch
Width135 mm
Height100 mm
Depth62.5 mm
