pressure transmitter XMLG 0 to 1 bar G 1

pressure transmitter XMLG 0 to 1 bar G 1

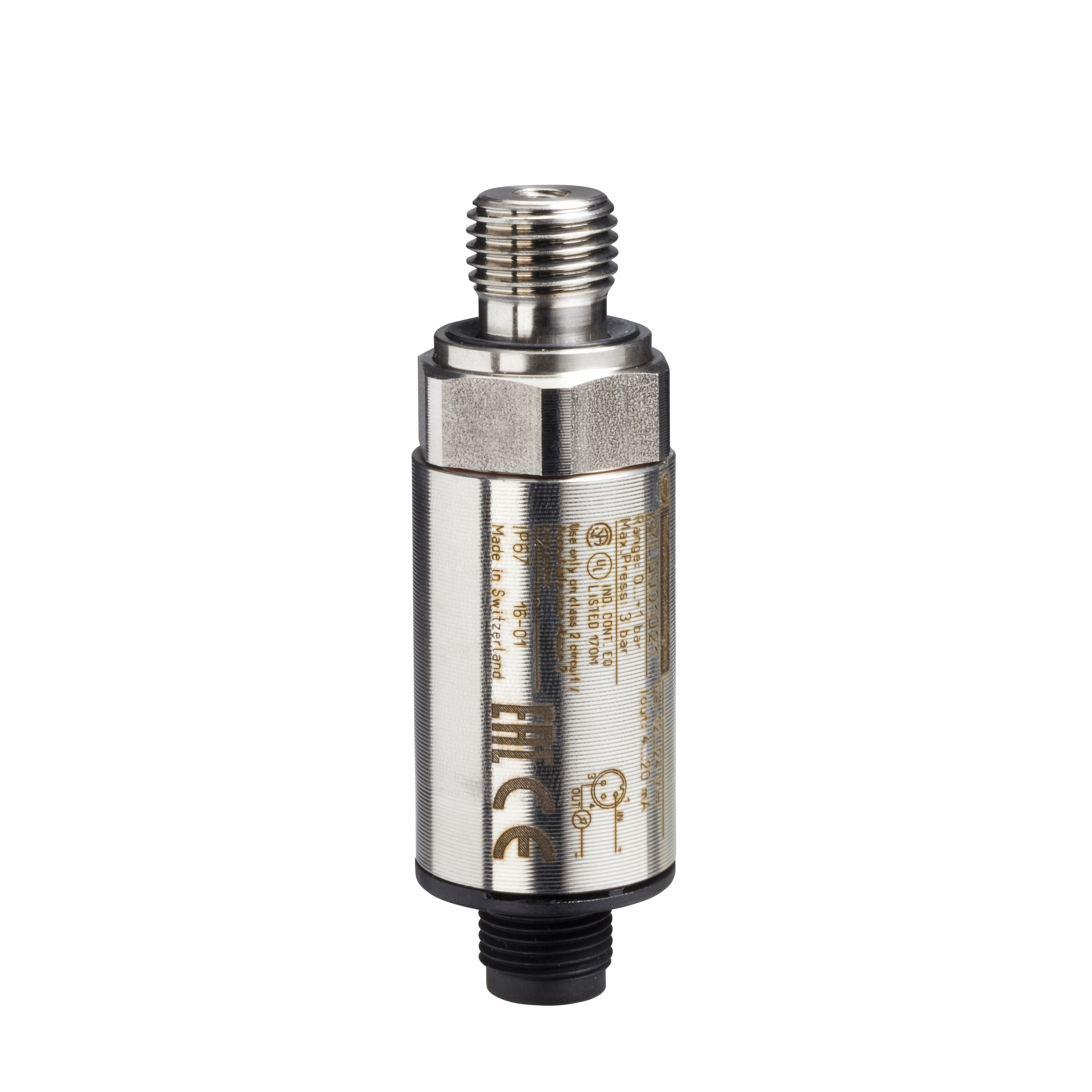

XMLG001D21https://download.schneider-electric.com/files?p_Doc_Ref=XM-EX_522_CPODA2016002&p_File_Type=rendition_4000_pngpressure sensor XMLG - 0..1 bar - G 1/4A (male) - 24 V - 4..20 mA - set of 1.Label:OsiSense XM-range of product:OsiSense XM-product or component type:electronic pressure sensors-pressure sensor type:pressure transmitter-pressure sensor name:XMLG-pressure sensor size:1 bar-quantity per set:set of 1-type of packing:individual-diameter:22.8 mm-type of output signal:analogue-Range Presentation:Electronic pressure sensors for control circuit
Pressure transmitters and pressure switches are characterised by their ceramic pressure measuring cell for controlling air, fresh water, sea water, hydraulic oils, corrosive fluids
- -1 to 400 bars (-14.4 to 5800 psi), without adjustment XML-G range - -1 to 600 bars (-14.4 to 870 psi), with simple adjustment XML-E range
with user-friendly configuration and adjustment XML-F range Electromechanical Pressure and Vacuum switches for control circuit
For controlling air, fresh water, sea water, hydraulic oils, corrosive fluids and viscous products
- -1 to 500 bars (-14.5 to 7250 psi)
with fixed differential* XMLA range
with adjustable differential* XMLB , XMLC range
with 2 stages with fixed differential at each threshold XMLD range Dedicated to air and water
up to 25 bars (362.5 psi) with adjustable differential* XMX and XMA range

Electromechanical Pressure switches for power circuit
For controlling water,and/or air up to 25 bars
FTG fixed differential*
FSG, FSG 2NE, FYG and XMP adjustable differential**fixed differential: detection of a single threshold
*adjustable differential: regulation between 2 thresholds-Range Benefits:One of the most comprehensive catalogues of industrial and power pressure sensors on the market, including a user-friendly electronic transmitter sensor which can be configured in complete simplicity, with unrivalled flexibility of modification during operation.-Range Application Presentation:
- Pressure control or monitoring on water pumps, compressors, moulding presses, injection moulders, grinding machines, machining centres, etc
GBP
Stock Code: XMLG001D21
Call for availability on 0345 030 60 80
253.98£211.65 (exc VAT) per 1
£253.98 (inc VAT)
Quantity: - +

Product Description

pressure sensor XMLG - 0..1 bar - G 1/4A (male) - 24 V - 4..20 mA - set of 1.Label:OsiSense XM-range of product:OsiSense XM-product or component type:electronic pressure sensors-pressure sensor type:pressure transmitter-pressure sensor name:XMLG-pressure sensor size:1 bar-quantity per set:set of 1-type of packing:individual-diameter:22.8 mm-type of output signal:analogue-Range Presentation:Electronic pressure sensors for control circuit
Pressure transmitters and pressure switches are characterised by their ceramic pressure measuring cell for controlling air, fresh water, sea water, hydraulic oils, corrosive fluids
- -1 to 400 bars (-14.4 to 5800 psi), without adjustment XML-G range - -1 to 600 bars (-14.4 to 870 psi), with simple adjustment XML-E range
with user-friendly configuration and adjustment XML-F range Electromechanical Pressure and Vacuum switches for control circuit
For controlling air, fresh water, sea water, hydraulic oils, corrosive fluids and viscous products
- -1 to 500 bars (-14.5 to 7250 psi)
with fixed differential* XMLA range
with adjustable differential* XMLB , XMLC range
with 2 stages with fixed differential at each threshold XMLD range Dedicated to air and water
up to 25 bars (362.5 psi) with adjustable differential* XMX and XMA range

Electromechanical Pressure switches for power circuit
For controlling water,and/or air up to 25 bars
FTG fixed differential*
FSG, FSG 2NE, FYG and XMP adjustable differential**fixed differential: detection of a single threshold
*adjustable differential: regulation between 2 thresholds-Range Benefits:One of the most comprehensive catalogues of industrial and power pressure sensors on the market, including a user-friendly electronic transmitter sensor which can be configured in complete simplicity, with unrivalled flexibility of modification during operation.-Range Application Presentation:
- Pressure control or monitoring on water pumps, compressors, moulding presses, injection moulders, grinding machines, machining centres, etc

Height58.1 mm
