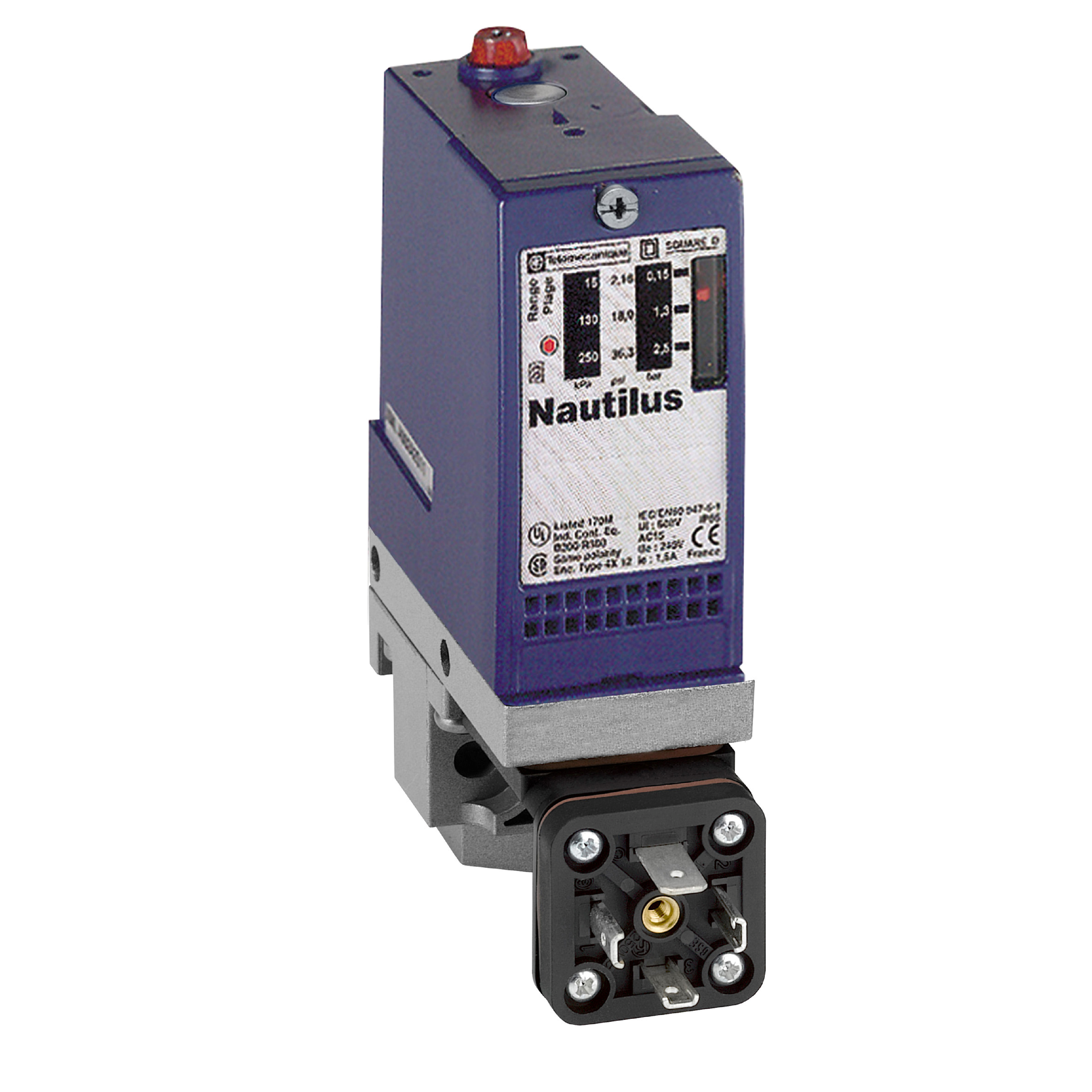

PRESSURE SWITCH XMLA 300 BAR FIXED SCALE

pressure switch XMLA 300 bar - fixed scale 1 threshold - 1 C/O.Label:OsiSense XM-range of product:OsiSense XM-product specific application:--pressure switch type of operation:detection of 1 single threshold-electrical circuit type:control circuit-scale type:fixed differential-local display:with-adjustable range of switching point on rising pressure:20-300 bar-adjustable range of switching point on falling pressure:3.5-265 bar-product or component type:electromechanical pressure sensor-maximum permissible accidental pressure:675 bar-destruction pressure:1350 bar-pressure actuator:piston-pressure sensor type:electromechanical pressure sensor-materials in contact with fluid:brass,steel,FPM, FKM,PTFE-enclosure material:zinc alloy-device short name:XMLA-pressure sensor size:300 bar-Range Presentation:Electronic pressure sensors for control circuit
Pressure transmitters and pressure switches are characterised by their ceramic pressure measuring cell for controlling air, fresh water, sea water, hydraulic oils, corrosive fluids
- -1 to 400 bars (-14.4 to 5800 psi), without adjustment XML-G range - -1 to 600 bars (-14.4 to 870 psi), with simple adjustment XML-E range
with user-friendly configuration and adjustment XML-F range Electromechanical Pressure and Vacuum switches for control circuit
For controlling air, fresh water, sea water, hydraulic oils, corrosive fluids and viscous products
- -1 to 500 bars (-14.5 to 7250 psi)
with fixed differential* XMLA range
with adjustable differential* XMLB , XMLC range
with 2 stages with fixed differential at each threshold XMLD range Dedicated to air and water
up to 25 bars (362.5 psi) with adjustable differential* XMX and XMA range

Electromechanical Pressure switches for power circuit
For controlling water,and/or air up to 25 bars
FTG fixed differential*
FSG, FSG 2NE, FYG and XMP adjustable differential**fixed differential: detection of a single threshold
*adjustable differential: regulation between 2 thresholds-Range Benefits:One of the most comprehensive catalogues of industrial and power pressure sensors on the market, including a user-friendly electronic transmitter sensor which can be configured in complete simplicity, with unrivalled flexibility of modification during operation.-Range Application Presentation:
- Pressure control or monitoring on water pumps, compressors, moulding presses, injection moulders, grinding machines, machining centres, etc

Stock Code: XMLA300D2C11

Call for availability on 0345 030 60 80
