ELECTR. RELAY 5A 60A 220V AC MAN. R

ELECTR. RELAY 5A 60A 220V AC MAN. R

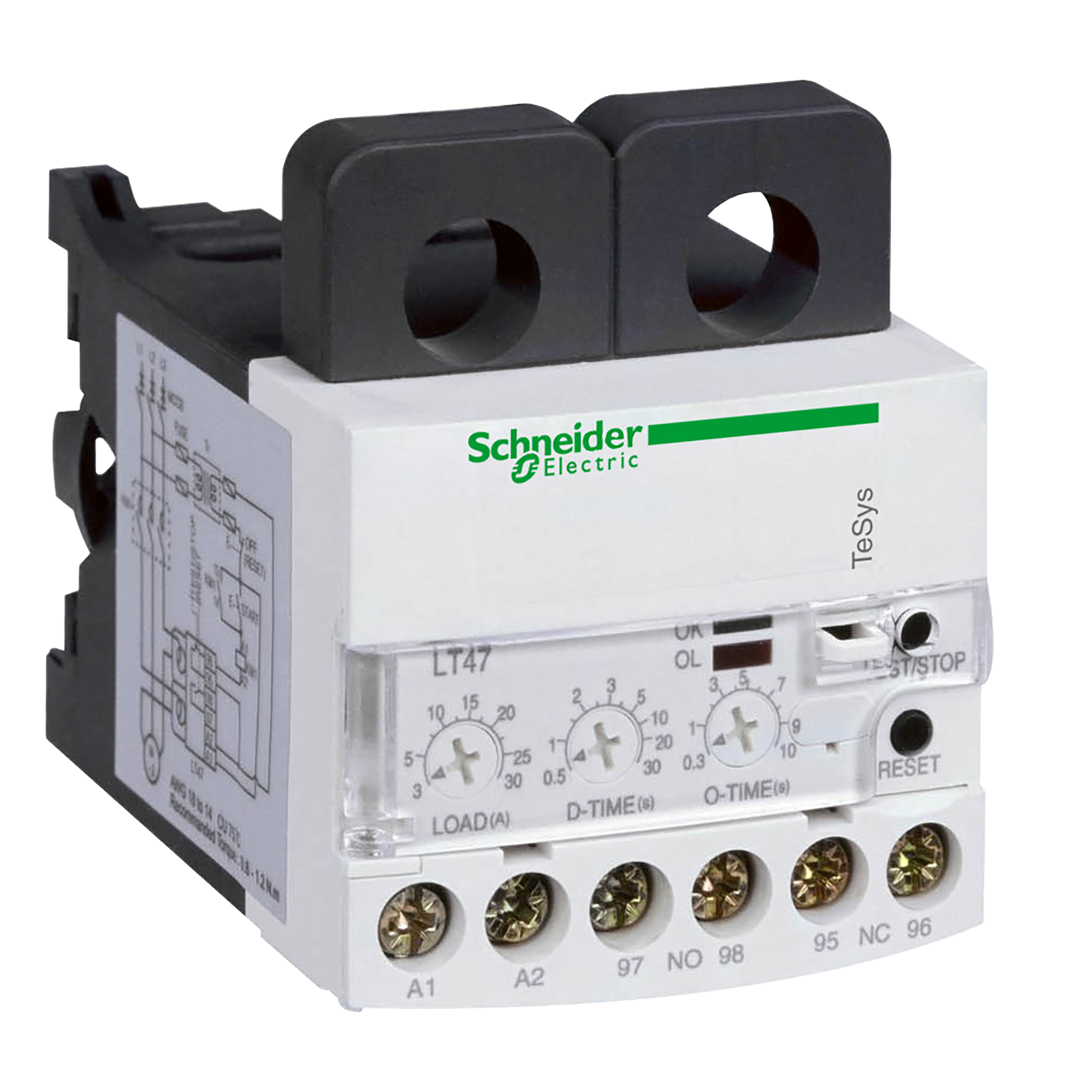

LT4760M7Shttps://download.schneider-electric.com/files?p_Doc_Ref=PB111927&p_File_Type=rendition_4000_pngTeSys LT47 electronic over current relays - manual - 5...60 A - 200...240 V AC.Label:TeSys LT47-range of product:TeSys LT electronic over current relays-thermal protection adjustment range:5-60 A-range:TeSys-product name:TeSys LT-product or component type:electronic over current relay-device short name:LT47-device application:protection-relay application:locked rotor, mechanical jamming I 3 x Isetting,overload Imax Isetting,sensitivity to phase failure-Range Presentation:
- DIN rail or plate mounting- Screw clamp or lug connections- External 24 to 230 V AC power supply- Manual or automatic reset depending on model.- Protection functions:- Over currents due to overload or mechanical jamming: starting and steady state operation overtorque monitoring.
- Can be used as torque surge protection.
- Current threshold adjustment using 2 separate time settings (starting and trip in steady state operation)- 2 LED indicators (starting and overtorque).- Auxiliary contacts: 1 N/C + 1 N/O- Looped cabling possible when the motor current is less than the minimum setting.-Range Benefits:Machine protection combined with motor starter With its simple setting and signalling features, the electronic over current relay, or overtorque protection relay, assures optimal protection of your machine.
Due to its compactness it easily integrates in the motor starter functions.-Range Application Presentation:Industry, infrastructures, buildings:
- Machines with high resistive torque. - High inertia machines. - Machines with high risk of jamming during steady state operation. These relays do not have thermal memory and can be used as specific motor protection in the case of severe duty applications:
- Machine with long starting time. - Machine with frequent starting.
GBP
Stock Code: LT4760M7S
Call for availability on 0345 030 60 80
123.53£102.94 (exc VAT) per 1
£123.53 (inc VAT)
Quantity: - +

Product Description

TeSys LT47 electronic over current relays - manual - 5...60 A - 200...240 V AC.Label:TeSys LT47-range of product:TeSys LT electronic over current relays-thermal protection adjustment range:5-60 A-range:TeSys-product name:TeSys LT-product or component type:electronic over current relay-device short name:LT47-device application:protection-relay application:locked rotor, mechanical jamming I 3 x Isetting,overload Imax Isetting,sensitivity to phase failure-Range Presentation:
- DIN rail or plate mounting- Screw clamp or lug connections- External 24 to 230 V AC power supply- Manual or automatic reset depending on model.- Protection functions:- Over currents due to overload or mechanical jamming: starting and steady state operation overtorque monitoring.
- Can be used as torque surge protection.
- Current threshold adjustment using 2 separate time settings (starting and trip in steady state operation)- 2 LED indicators (starting and overtorque).- Auxiliary contacts: 1 N/C + 1 N/O- Looped cabling possible when the motor current is less than the minimum setting.-Range Benefits:Machine protection combined with motor starter With its simple setting and signalling features, the electronic over current relay, or overtorque protection relay, assures optimal protection of your machine.
Due to its compactness it easily integrates in the motor starter functions.-Range Application Presentation:Industry, infrastructures, buildings:
- Machines with high resistive torque. - High inertia machines. - Machines with high risk of jamming during steady state operation. These relays do not have thermal memory and can be used as specific motor protection in the case of severe duty applications:
- Machine with long starting time. - Machine with frequent starting.

Weight0.198
Width71 mm
Height70.3 mm
Depth77.2 mm

Click on any of the following links to download the file.
