FUSE DISCONNECTOR SPRING VERSION

FUSE DISCONNECTOR SPRING VERSION

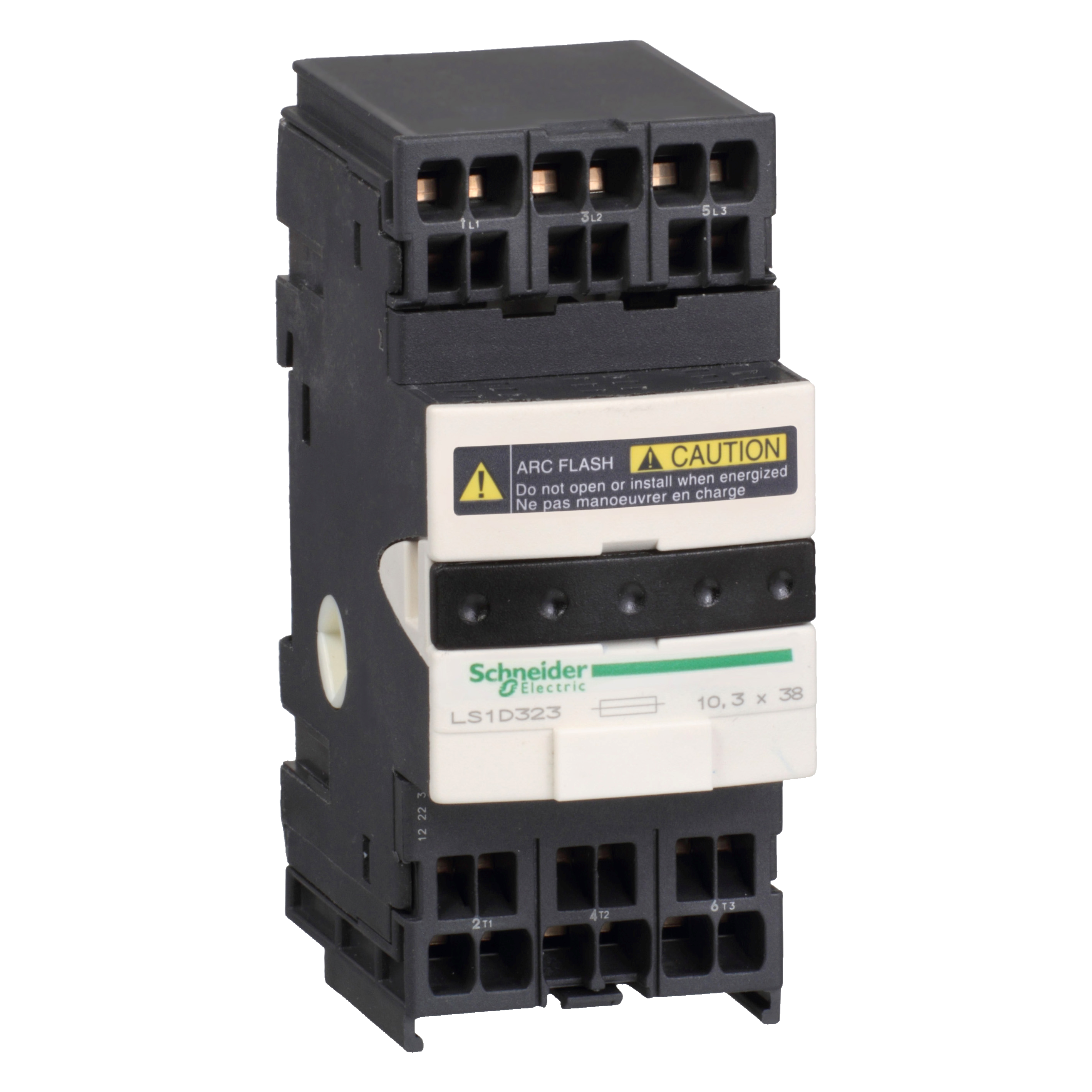

LS1D323https://download.schneider-electric.com/files?p_Doc_Ref=PB111831&p_File_Type=rendition_4000_pngTeSys fuse-disconnector - 3P - 30 A - fuse size 10 x 38 mm - spring type.Label:TeSys DF, LS1/GK1-range of product:TeSys fuse-disconnector-range:TeSys-product name:TeSys LS1-product or component type:fuse-disconnector-device short name:LS1D-poles description:3P-Range Presentation:Modular design for a wide variety of needs:
- Single pole, single pole + neutral, 2 pole, 3 pole, 3 pole + neutral, 4 pole.
Different cylindrical cartridge fuses size:
- 8.5 x 31.5, 10 x 38, 14 x 51, 22 x 58.
Characteristics :
- Hight breaking capacity 120 kA / 500 V et 80 kA / 690 V (depending of the fuse used).
- IP2X protection against direct finger contact.
- Compact size helps to reduce the overall size of the installation.
- Ergonomic handle for easier opening.
- Dual position locking system for easy DIN-rail mounting.
- Conforming to the european RoHS Directive (Restriction of Hazardous Substances).
- Version for Class CC fuses available for North American market.-Range Benefits:
Simple and effective protection!
Fuse protection is a reliable and effective solution to protect your low voltage equipment against short-circuits that can cause major damage to your installations and generate risk for equipment and personnel, as well as signifiant production.-Range Application Presentation:Industry, Infrastructure, Building:
They are especially adapted for electrical installations, whether for distribution, control or motor starters.
GBP
Stock Code: LS1D323
Call for availability on 0345 030 60 80
218.72£182.27 (exc VAT) per 1
£218.72 (inc VAT)
Quantity: - +

Product Description

TeSys fuse-disconnector - 3P - 30 A - fuse size 10 x 38 mm - spring type.Label:TeSys DF, LS1/GK1-range of product:TeSys fuse-disconnector-range:TeSys-product name:TeSys LS1-product or component type:fuse-disconnector-device short name:LS1D-poles description:3P-Range Presentation:Modular design for a wide variety of needs:
- Single pole, single pole + neutral, 2 pole, 3 pole, 3 pole + neutral, 4 pole.
Different cylindrical cartridge fuses size:
- 8.5 x 31.5, 10 x 38, 14 x 51, 22 x 58.
Characteristics :
- Hight breaking capacity 120 kA / 500 V et 80 kA / 690 V (depending of the fuse used).
- IP2X protection against direct finger contact.
- Compact size helps to reduce the overall size of the installation.
- Ergonomic handle for easier opening.
- Dual position locking system for easy DIN-rail mounting.
- Conforming to the european RoHS Directive (Restriction of Hazardous Substances).
- Version for Class CC fuses available for North American market.-Range Benefits:
Simple and effective protection!
Fuse protection is a reliable and effective solution to protect your low voltage equipment against short-circuits that can cause major damage to your installations and generate risk for equipment and personnel, as well as signifiant production.-Range Application Presentation:Industry, Infrastructure, Building:
They are especially adapted for electrical installations, whether for distribution, control or motor starters.

Width45 mm
Height89 mm
Depth68.3 mm
