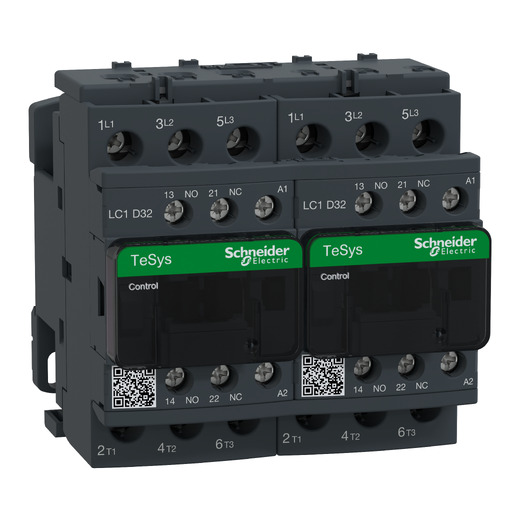

TeSys D reversing contactor - 3P(3 NO) - AC-3 - = 440 V 32 A - 400 V AC coil.Label:TeSys D-range of product:TeSys D-poles description:3P-pole contact composition:3 NO-auxiliary contact composition:1 NO + 1 NC-range:TeSys-overvoltage category:III-product name:TeSys D-protective cover:with-interlocking type:mechanical-mounting support:rail,plate-product certifications:RINA,UL,CSA,GOST,CCC,GL,DNV,BV,LROS (Lloyds register of shipping)-mechanical durability:15 Mcycles-product or component type:reversing contactor-device short name:LC2D-contactor application:motor control,resistive load-utilisation category:AC-3,AC-1-device presentation:preassembled with reversing power busbar-Range Presentation:Contactor
- AC, DC, low-consumption DC control circuit - All types of starter: reversing or non-reversing, star/delta, by auto-transformer, etc - Connectors: spring terminal, EverLink terminal block, screw clamp, ring-type connection, Faston connector - Easy and simple direct mounting beetween contactor and circuit breaker, according to EverLink terminal block (from 40 to 65 A).Control RelayRelays with 5 poles as standard with 10A thermally rated contacts suitable for AC or DC control voltages. In addition a DC control circuit version with low consumption and built in suppression is available.
- 10A thermal contacts with operation down to 17V 5mA - Five pole with AC or DC operation - Variety of auxiliary contacts, timer modules and latching blocks - Four connection types: - Screw clamp – Ring - Quick-fit spring terminal – Fast-on connectors-Range Benefits:In addition to its new look, the TeSys D contactor offers you quick simple setup, while maintaining a compact size of 45 and 55 mm (40 to 65 A) as well as compliance with international standards.From 40 to 65 A versions are equiped with EverLink, this new patented terminal technology, assures a permanent tightening quality even in the event of conductor creep.-Range Application Presentation:Industry, infrastructure, building, etc:
- TeSys D contactors have been designed for perfect integration in control systems - They can be used to create motor starters for any type of application. - Switching contactor or relay coils - Powering control and signalling equipment
