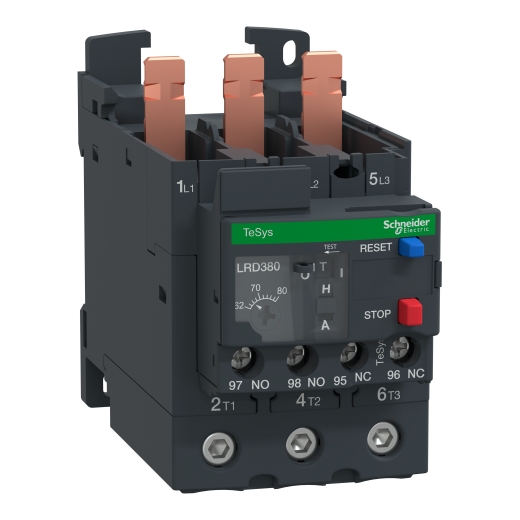

THERMAL OVERLOAD 62-80A CL10A EVERLINK

Stock Code: LRD380

Call for availability on 0345 030 60 80

Product Description

TeSys LRD differential thermal overload relay 62-80A class10A EverLink. Label: TeSys LRD - range: TeSys - thermal protection adjustment range: 62-80 A - [Ui] rated insulation voltage: 690 V power circuit conforming to IEC 60947-4-1 ,600 V power circuit conforming to CSA C22.2 No 14 ,600 V power circuit conforming to UL 60947-4-1 - product name: TeSys LRD - product or component type: differential thermal overload relay - device short name: LRD - relay application: motor protection - product compatibility: LC1D80A - network type: AC,DC - thermal overload class: class 10A - Range Presentation: TeSys LRD is a reliable series of thermal overload relays designed to cover a range of motor ratings up to 75kW at 400 V. The devices can be combined with TeSys D contactors to form an extremely compact starter.
Specifications:
- Manual or automatic reset
- Sealable flap
- Pre-wiring kit
- Direct mounting with TeSys D contactors
- Terminal block for separate mounting
- Remote electrical reset available as an option
- Connectors: spring terminal, screw clamp, terminal block EverLink (LRD3)
- Class 10 A & 20 - Range Benefits: TeSys LRD thermal overload relays deliver outstanding performance, flexibility and reliability.
- Safe and effective protection
- Simple to install
- Integrated manual-automatic reset
- Can be combined with TeSys D contactors to form an extremely optimized starter - Range Application Presentation: TeSys LRD relays are used across industry, infrastructure, building, etc., to provide:
- Protection against motor overload and loss of phase.
- The perfect complement of magnetic only circuit breakers to manage thermal protection for motors.
- Selectable manual, remote or auto reset tripping options for better process management.
