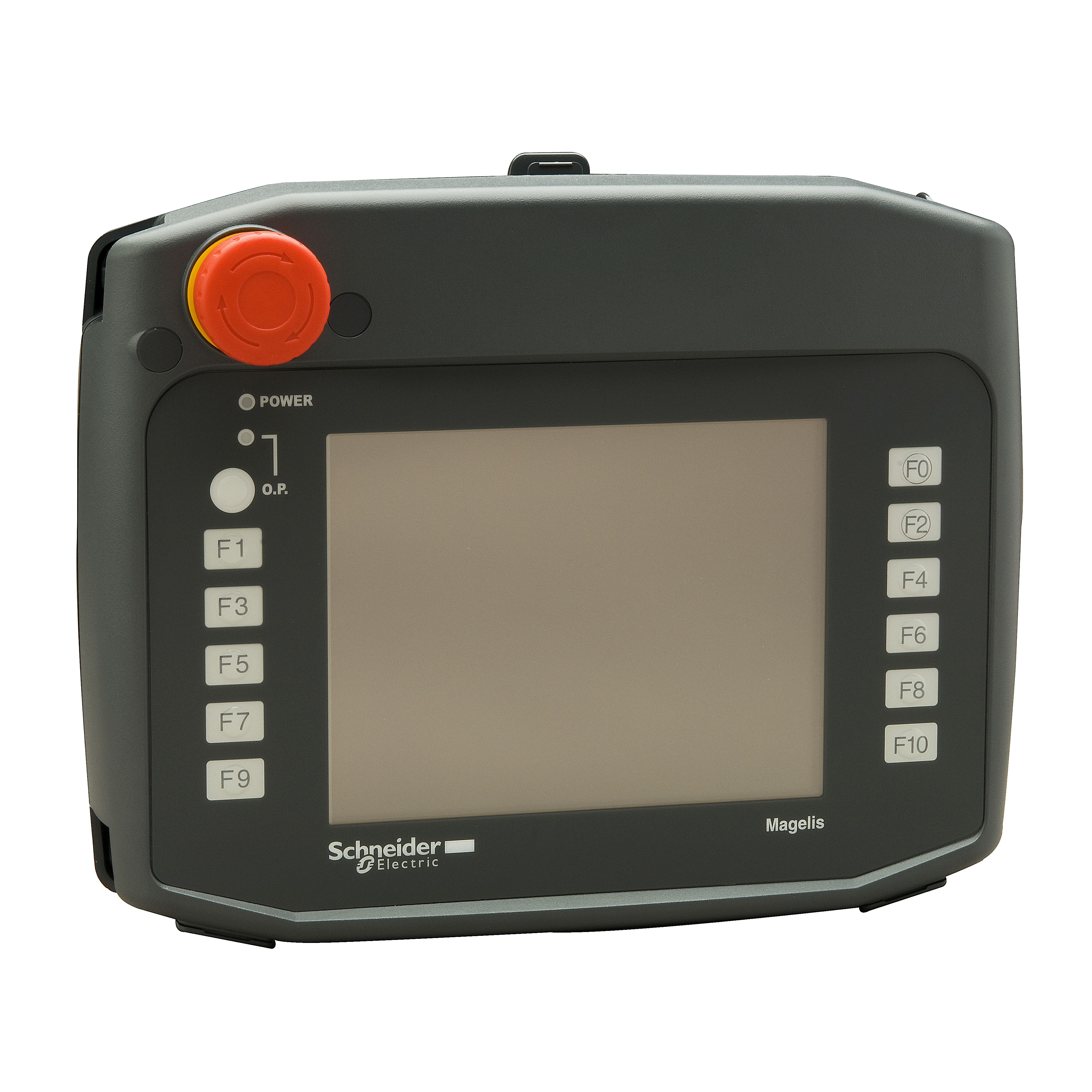

Hand-Held HMI 5Inch7 for Operator Dialog

Hand-Held HMI 5"7 for Operator Dialog

XBTGH2460https://download.schneider-electric.com/files?p_Doc_Ref=PA577343&p_File_Type=rendition_4000_pngadvanced hand-held panel - 640 x 480 pixels VGA - 5.7" - TFT LCD - 24 V DC.Label:Magelis XBT GH-range of product:Magelis XBTGH-control type:1 emergency stop,1 key switch,1 enable switch-contacts type and composition:{"1":"2018-04-13 06:23:33","2":"2018-04-13 06:23:33","3":"2018-05-31 18:28:56"}-product or component type:advanced hand-held panel-display type:backlit colour TFT LCD-software type:configuration software-software designation:Vijeo Designer-operating system:Magelis-processor name:CPU RISC-processor frequency:266 MHz-memory description:{"1":"2018-04-13 06:23:32","2":"2018-05-31 18:28:55"}-display colour:65536 colours-integrated connection type:{"1":"2018-05-31 18:28:56","2":"2018-05-31 18:28:56","3":"2018-05-31 18:28:56","4":"2018-05-31 18:28:56"}-display resolution:640 x 480 pixels VGA-resistance to electrostatic discharge:{"1":"2018-04-13 06:23:32"}-display size:5.7 inch-Range Presentation:The Magelis XBT GH hand-held graphic panel meets your demand for maximum safety, integrating the best components:
- Drop resistance in accordance with IEC 1131-2- IP65 body- Dead-man switch (3 Safety positions for operator protection)- Key switch to secure the terminal start-up- Emergency stop button, IEC60947-5-1 for machines requiring a safety level up to SIL3- High quality VGA TFT analogue colour touch screen 5.7'', 65 k colours- 11 function keys with insert labels- One hand carrying capability, left or right handed- Lightweight (1 kg max)- Dedicated soft cable (3 or 10 m) with a junction box- Communication interfaces with Serial line, Ethernet, USB and CF slot.-Range Benefits:
- Mobility: One soft cable providing easy and fast connection
- Operability: One portable graphic terminal to control and maintain securely your industrial applications
- Safety: One safety control system integrating the best technology-Range Application Presentation:
- Industrial Machines
- Infrastructures
GBP
Stock Code: XBTGH2460
Call for availability on 0345 030 60 80
This item is Obsolete
119999.99£99,999.99 (exc VAT) per 1
£119,999.99 (inc VAT)
Quantity: - +

Product Description

advanced hand-held panel - 640 x 480 pixels VGA - 5.7" - TFT LCD - 24 V DC.Label:Magelis XBT GH-range of product:Magelis XBTGH-control type:1 emergency stop,1 key switch,1 enable switch-contacts type and composition:{"1":"2018-04-13 06:23:33","2":"2018-04-13 06:23:33","3":"2018-05-31 18:28:56"}-product or component type:advanced hand-held panel-display type:backlit colour TFT LCD-software type:configuration software-software designation:Vijeo Designer-operating system:Magelis-processor name:CPU RISC-processor frequency:266 MHz-memory description:{"1":"2018-04-13 06:23:32","2":"2018-05-31 18:28:55"}-display colour:65536 colours-integrated connection type:{"1":"2018-05-31 18:28:56","2":"2018-05-31 18:28:56","3":"2018-05-31 18:28:56","4":"2018-05-31 18:28:56"}-display resolution:640 x 480 pixels VGA-resistance to electrostatic discharge:{"1":"2018-04-13 06:23:32"}-display size:5.7 inch-Range Presentation:The Magelis XBT GH hand-held graphic panel meets your demand for maximum safety, integrating the best components:
- Drop resistance in accordance with IEC 1131-2- IP65 body- Dead-man switch (3 Safety positions for operator protection)- Key switch to secure the terminal start-up- Emergency stop button, IEC60947-5-1 for machines requiring a safety level up to SIL3- High quality VGA TFT analogue colour touch screen 5.7'', 65 k colours- 11 function keys with insert labels- One hand carrying capability, left or right handed- Lightweight (1 kg max)- Dedicated soft cable (3 or 10 m) with a junction box- Communication interfaces with Serial line, Ethernet, USB and CF slot.-Range Benefits:
- Mobility: One soft cable providing easy and fast connection
- Operability: One portable graphic terminal to control and maintain securely your industrial applications
- Safety: One safety control system integrating the best technology-Range Application Presentation:
- Industrial Machines
- Infrastructures

Width224 mm
Height174 mm
Depth87.1 mm
