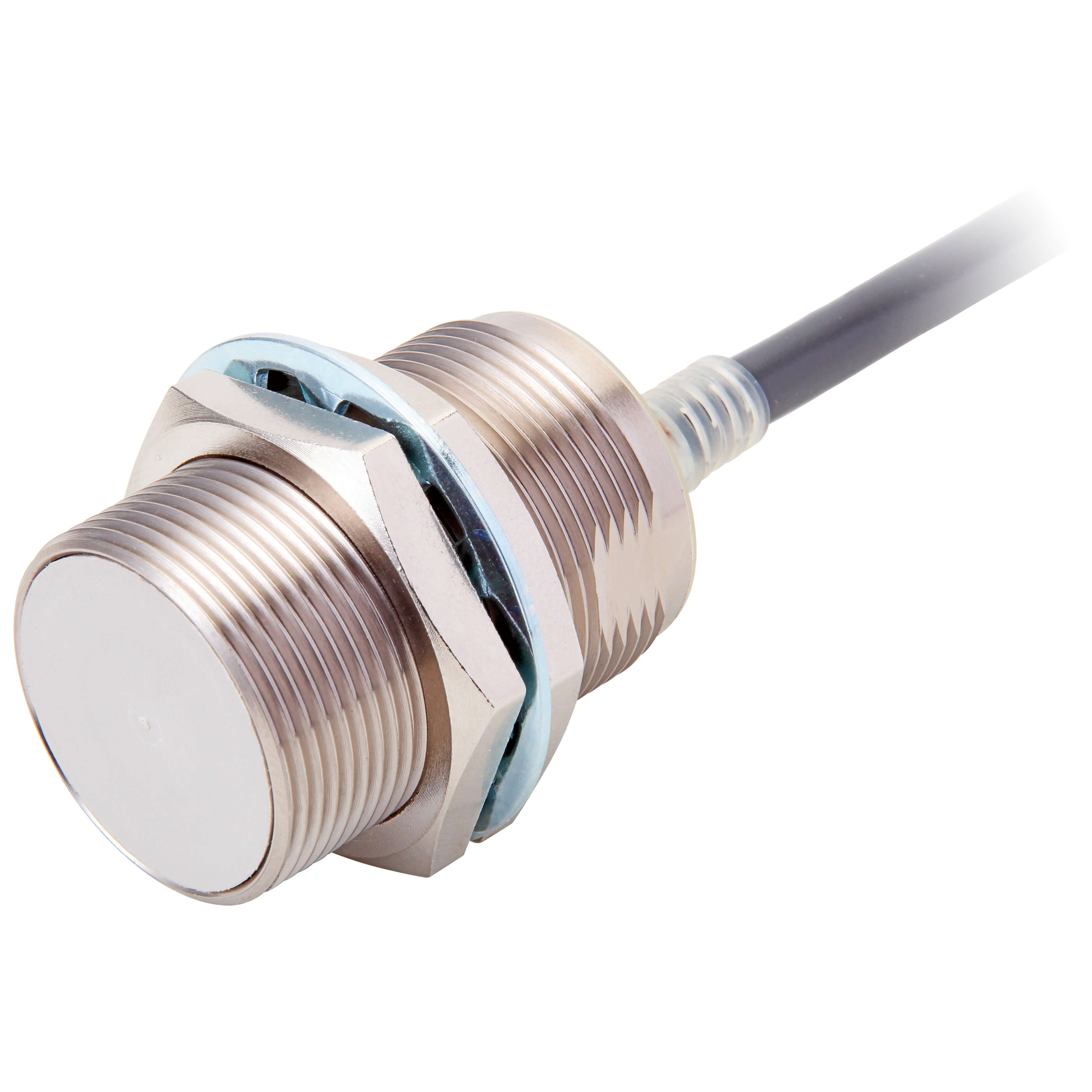

OMRON - E2E-X10E15 2M - Proximity Sensor - Cylindrical - E2E Series

Stock Code: E2E-X10E15 2M

Call for availability on 0345 030 60 80

This item is Obsolete

Product Description

OMRON - E2E-X10E15 2M - Proximity Sensor - Cylindrical - E2E Series

The OMRON E2E proximity sensors are a long-distance detection for unexpected facility stoppages. The E2E series is the world's longest sensing distance, featuring high-brightness LED. This indicator can be visible anywhere from 360°.

This easy-design sensor has a sensing range of up to 9mm (M12) and has a longer detection range compared to previous models allowing for more spacious designs with less risk of contact. This lets you standardise your designs by lettings you adopt a single one-sized model instead of multiple models of different sizes.

Sensor Technology: Inductive
Body Style: Barrel
Detection Range: 2 mm
Terminal Type: 4-Pin M12 Connector
IP Rating: IP67
Supply Voltage: 12…24 V dc
Maximum DC Voltage: 24V
Mounting Type: Flush
Switching Current: 100 mA
Maximum Operating Temperature: +70°C
Maximum Switching Frequency: 1.5kHz
Housing Material: Stainless Steel
Shielding: Shielded
Short Circuit Overload Protection: Yes
Minimum Operating Temperature: -25°C

Additional Information

OMRON proximity sensors are available in various models that use high-frequency oscillation to detect ferrous and non-ferrous metal objects and in capacitive models to detect non-metal objects. OMRON proximity sensors are available with environment resistance, heat resistance, resistance to chemicals, and resistance to water. This type of sensor is also available for special applications in long-distance models, and slim models are available for use combined with Proximity Sensors.
