KEY SELECTOR SWITCH RECTA 2 MAINTENED 2

Stock Code: XB6EDG222P

Call for availability on 0345 030 60 80

Product Description

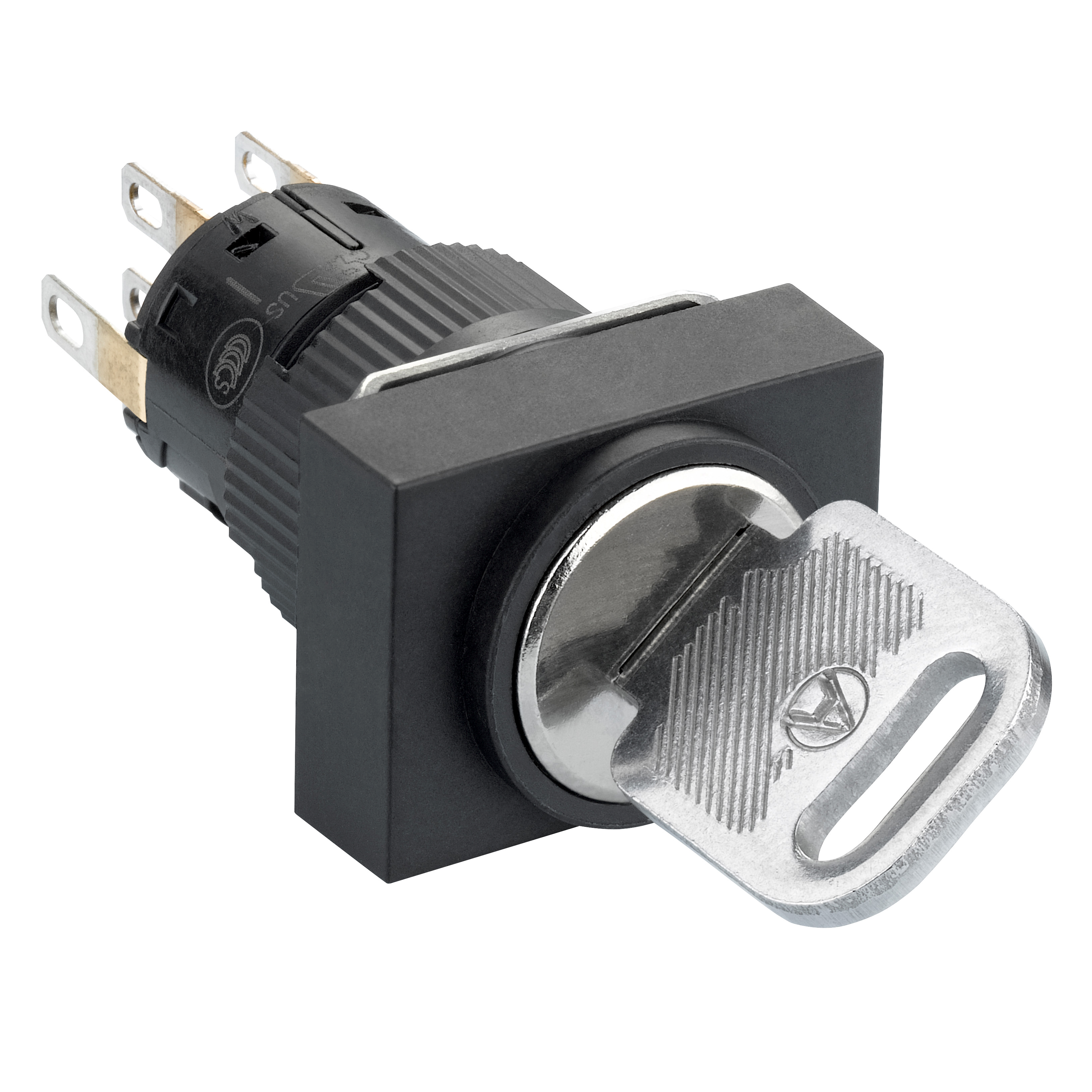

rectangular black key selector switch Ø16-projecting keylock 2 positions-2CO.Label:Harmony XB6-range of product:Harmony XB6E-product or component type:monolithic selector switch-shape of signaling unit head:rectangular-device short name:XB6E-operator position information:2 positions-key number:132-key withdrawal position:in any position-contacts type and composition:2 C/O-contact operation:snap action-bezel material:plastic-contacts material:gold-flashed silver-mounting diameter:16 mm-sale per indivisible quantity:5-Range Presentation:
- Complete products- Products for customer assembly using separate parts and common accessories.- Circular, square or rectangular heads.- Solder tab connections (compatible with Faston connection for contact function) or pins for printed circuit board connection.- Degree of protection: IP 65- Certifications CE, UL, CSA, CCC.
Contact functions - Pushbuttons with spring return- Selector switches and key switches, 2 or 3 positions- Mushroom head pushbuttons- Emergency stops
Light functions - LED pilot lights « Protected LED », neon and incandescent bulbs
Combined functions (contact + light) - Illuminated pushbuttons, flush push, spring return and latching- Illuminated selector switches-Range Benefits:Progress with confidence Compact, the Harmony Ø 16 mm range is specifically designed for applications where the surface area is restricted.
This range combines simplicity of setup and flexibility.
The IP 65 degree of protection enables it to be used in all types of applications.-Range Application Presentation:
- Industry: Small finishing machines. Local and remote control panels.- Buildings: Control boards, surveillance rooms, alarms.- Tertiary: Laboratories and medical instrumentation. Transport. Small electronic equipment.
