Fuse switch disconnector 100A TP&N

Fuse switch disconnector 100A TP&N

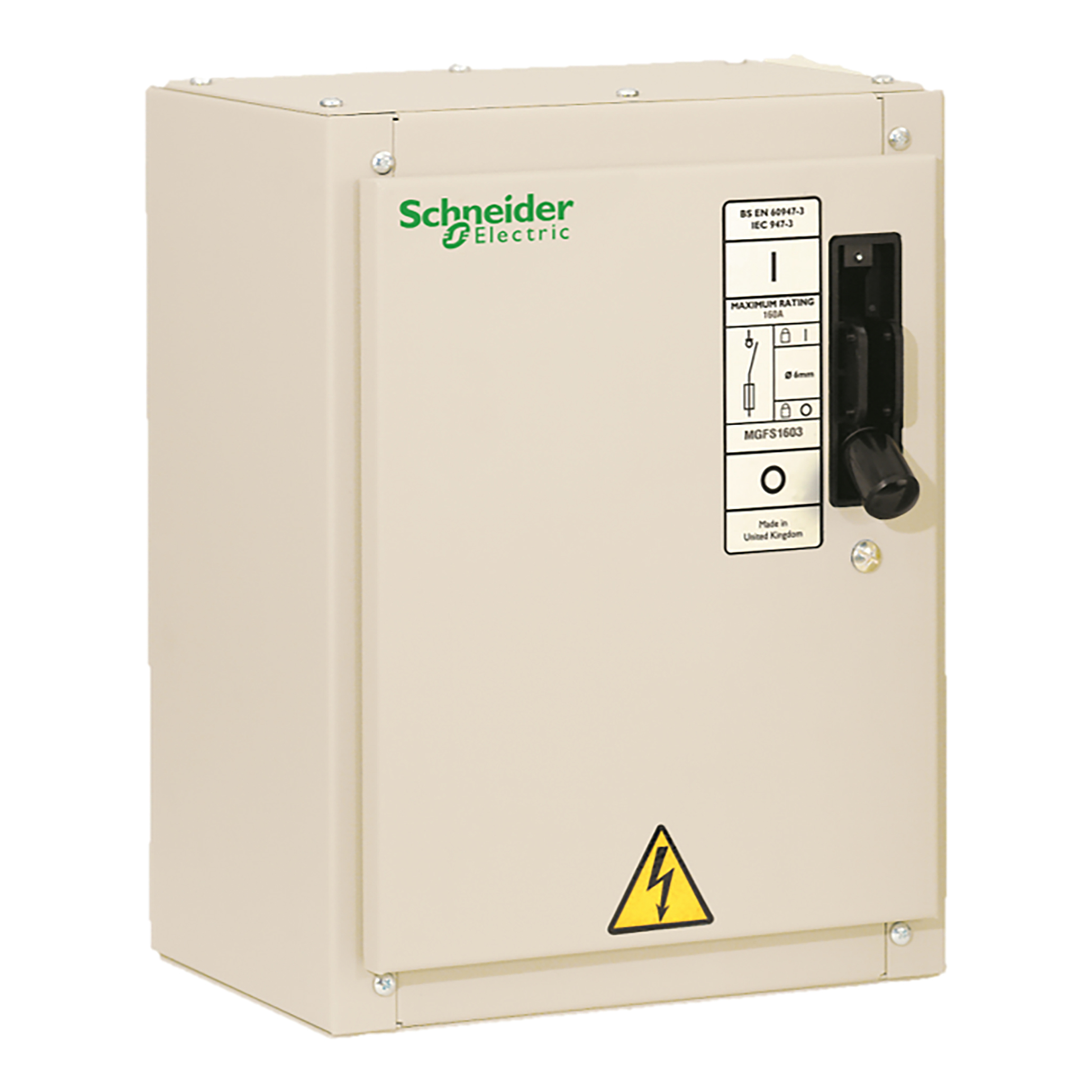

MGFS1003Chttps://download.schneider-electric.com/files?p_Doc_Ref=MGFS1003C_Image&p_File_Type=rendition_4000_pngMGF fusegear switch disconnector 100A TP&N, AC-23A, M8, 415 V, 50/60 Hz. Label: MGF Fusegear - range of product: MGF fusegear - breaking capacity: 50 kA Icn - range: MGF fusegear - product or component type: enclosed fuse-switch-disconnector - [Ue] rated operational voltage: 415 V - [Ie] rated operational current: 100 A - Range Presentation: The MGF range includes wall mounted equipment designed for individual protection or switching. - Available in ratings from 20A to 630A- Single pole and three pole - versions- Supplied complete with BS88 HRC fuse links- Busbar Chambers- Extension enclosures for large cables- Epoxy powder painted in RAL9001to match other products in the range including Isobar 4 distribution boards and Powerpact 4 panelboards - Range Benefits: - Fully tested and constructed to BS EN 60947-3: Quality- Fully rated to switch motor circuits and other highly inductive loads (AC23): Protective- Heavy duty padlockable handles: Secure- Removable gland plates and lift off doors: Easy access - Range Application Presentation: - Industrial- Commercial
GBP
Stock Code: MGFS1003C
Call for availability on 0345 030 60 80
This item is Obsolete
119999.99£99,999.99 (exc VAT) per 1
£119,999.99 (inc VAT)
Quantity: - +

Product Description

MGF fusegear switch disconnector 100A TP&N, AC-23A, M8, 415 V, 50/60 Hz. Label: MGF Fusegear - range of product: MGF fusegear - breaking capacity: 50 kA Icn - range: MGF fusegear - product or component type: enclosed fuse-switch-disconnector - [Ue] rated operational voltage: 415 V - [Ie] rated operational current: 100 A - Range Presentation: The MGF range includes wall mounted equipment designed for individual protection or switching.
- Available in ratings from 20A to 630A- Single pole and three pole - versions- Supplied complete with BS88 HRC fuse links- Busbar Chambers- Extension enclosures for large cables- Epoxy powder painted in RAL9001to match other products in the range including Isobar 4 distribution boards and Powerpact 4 panelboards - Range Benefits:
- Fully tested and constructed to BS EN 60947-3: Quality- Fully rated to switch motor circuits and other highly inductive loads (AC23): Protective- Heavy duty padlockable handles: Secure- Removable gland plates and lift off doors: Easy access - Range Application Presentation:
- Industrial- Commercial

Weight12.815kg
Width31.5 mm
Height28.0 mm
Depth42.0 mm
