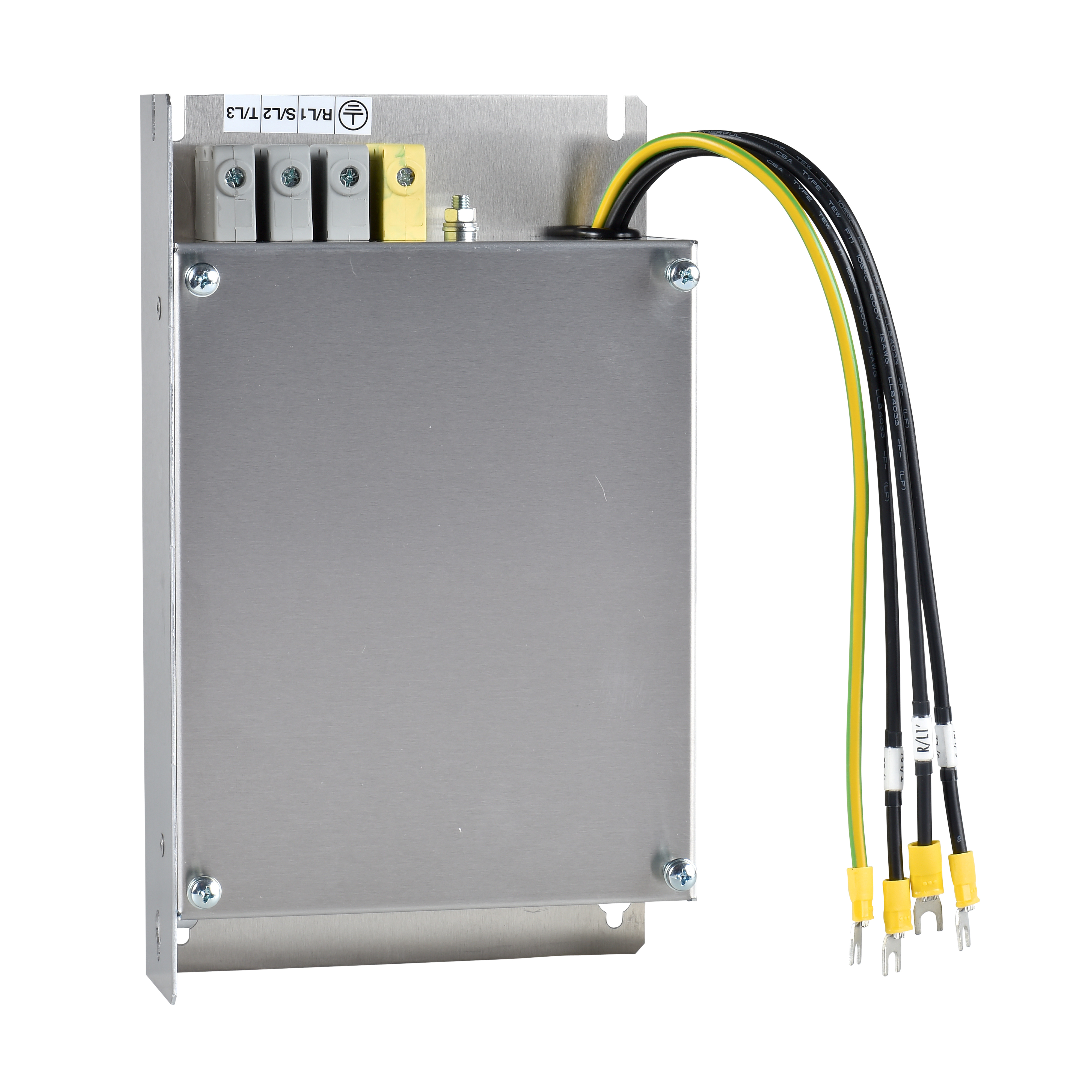

additionnal EMC input filter - 3-phase supply - 15 A. Label: Altivar 31 - range of product: Altivar - [In] rated current: 15 A - thermal losses: 0.13 Wfor ATV21H075N4, 0.45 Wfor ATV21HU15N4, 0.47 Wfor ATV21H075M3X, 0.9 Wfor ATV21HU22N4, 1.6 Wfor ATV21HU15M3X, 3.3 Wfor ATV21HU22M3X, 9.9 Wfor ATV31HU11M3X - product or component type: EMC input filter - network number of phases: three phase - range compatibility: Altivar 31C,Lexium 23 Plus,Altivar 312,Altivar 312 Solar,Altivar Machine ATV320,Lexium 05,Altivar 212 - product compatibility: servo drive LXM23 motor: 0.75 kW, ATV212HU22M3X, ATV212HU22N4, ATV31C037N4, ATV31C055N4, ATV31C075N4, ATV31CU11N4, ATV31CU15N4, LXM05AD14N4, LXM05AD17M3X, LXM05BD14N4, servo drive LXM23 motor: 1 kW, LXM05BD17M3X, LXM05CD14N4, ATV312HU11M3, ATV312HU15M3, ATV312HU22M3, ATV312H037N4, ATV312H055N4, ATV312H075N4, ATV312HU11N4, ATV312HU15N4, servo drive LXM23 motor: 1.5 kW, variable speed drive ATV320...C motor: 0.37 kW, 380...500 V three phase, variable speed drive ATV320...C motor: 0.55 kW, 380...500 V three phase, variable speed drive ATV320...C motor: 0.75 kW, 380...500 V three phase, variable speed drive ATV320...C motor: 1.1 kW, 380...500 V three phase, variable speed drive ATV320...C motor: 1.5 kW, 380...500 V three phase, variable speed drive ATV320...C motor: 1.1 kW, 200...240 V three phase, variable speed drive ATV320...C motor: 1.5 kW, 200...240 V three phase, variable speed drive ATV320...C motor: 2.2 kW, 200...240 V three phase, servo drive LXM23 motor: 2 kW, servo drive LXM23 motor: 3 kW, ATV212H075M3X, ATV212H075N4, ATV212HU15M3X, ATV212HU15N4 - product specific application: radio interference input filter - Range Presentation: 200... 240 V single-phase 200... 240 V / 380...500 V / 525 to 600 V 3-phase, 50/60 Hz
- Speed regulation by flux vector control- Speed range from 1 to 50- 2 Tn to 3 Hz without adjustment- Auto-tuning- Protection of motor and of drive- Operation up to 50°C without derating- Brake sequence- Regulator and preset PI- +/- speed, 16 preset speeds- Limit switch management- Traverse control (textile machines)- Compact, side by side mounting- Integrated class A EMC filter, class B optional- Integrated Modbus and CANopen Fipio, Profibus DP, DeviceNet, Ethernet- Other versions : IP55 enclosure or drive kit. - Range Benefits: High performance instinctively! With its high performance and numerous functions, the Altivar 31 still remains simple... "Plug and drive", compact and open to automation systems with Modbus and CANopen integrated, it respects the local specifications (voltage ranges, positive and negative logic, etc...). - Range Application Presentation:
- Materials handling, packaging/packing- Pumps, ventilation- Special machines, textile machines
